Intel Agilex Series

Recoverable Configuration Error

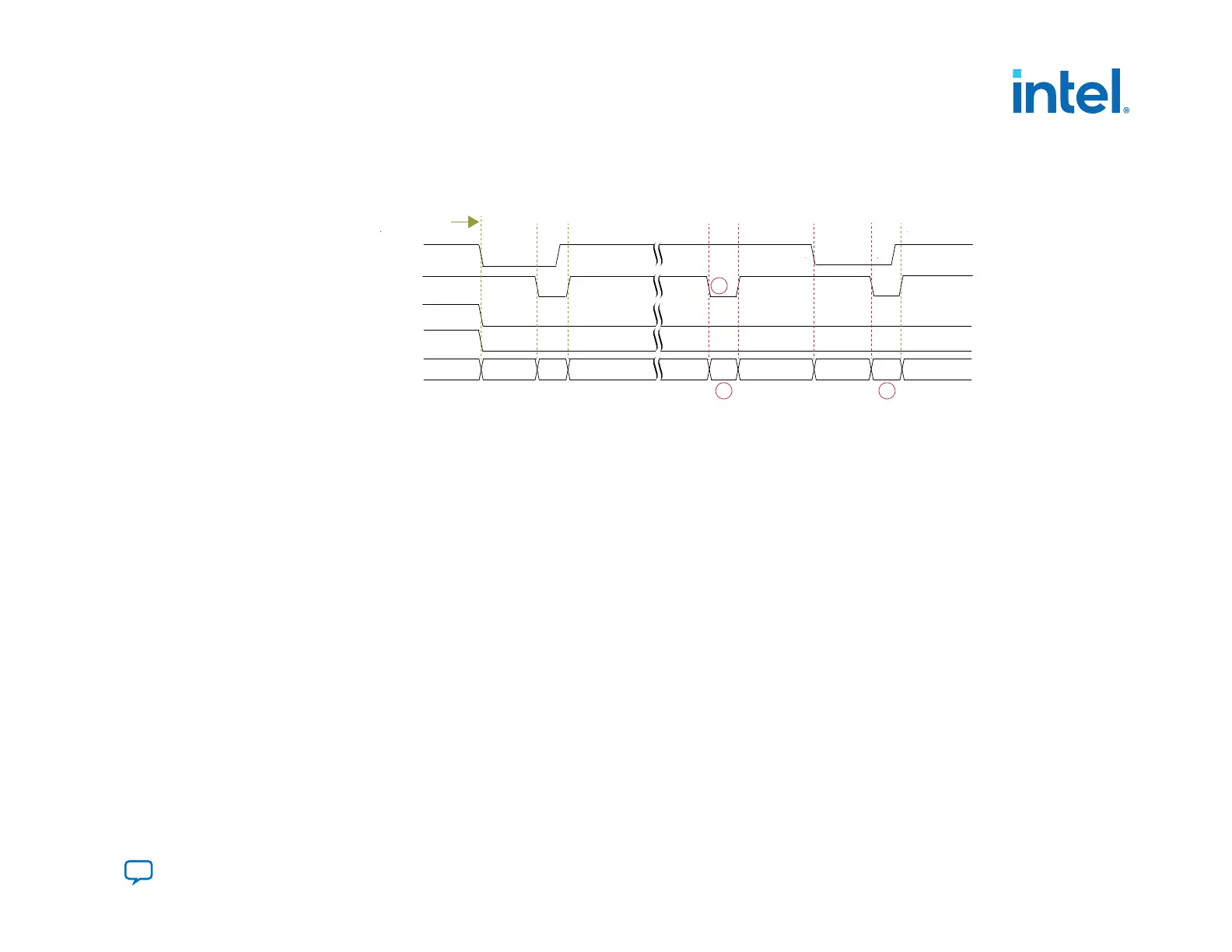

Figure 5. Recoverable Error during Reconfiguration Timing Diagram
nCONFIG
nSTATUS
CONF_DONE
INIT_DONE
Configuration_State
Configuration Error
Configuration Err Configuration Fail Idle
User Mode Idle
Device Clean
Configuration
Device Clean
Reconfiguration Triggered
Reconfiguration
Recovered Reconfiguration
1
2
3
The numbers in the Configuration Error part of the timing diagram mark the following events:
1.
The SDM drives nSTATUS signal low for a period of time specified in the Intel Agilex Device Datasheet to indicate a
recoverable configuration error. The Intel Agilex device may not assert CONF_DONE indicating that device did not receive
the complete configuration bitstream. The device does not assert INIT_DONE indicating that the configuration did not
complete successfully. nCONFIG should continue to be driven high until after nSTATUS has returned back to high state.
If an error occurs during JTAG configuration, the SDM does not change the state of the nSTATUS signal. You can monitor
the error messages that the Intel Quartus Prime Pro Edition Programmer generates for error reporting.
2. The SDM enters the error state.
3.
The SDM enters the idle state if the nCONFIG signal drives to low. The device is ready for reconfiguration by driving a low
to high transition on nCONFIG. You can also power cycle the device by following the device power down sequence.
Note:
The nCONFIG signal can only change levels when it has the same value as nSTATUS. This restriction means that
when nSTATUS = 1, nCONFIG can transition from 1 to 0. When nSTATUS = 0, nCONFIG can transition from 0 to 1.
Apart from error reporting, nSTATUS only changes to follow nCONFIG.
