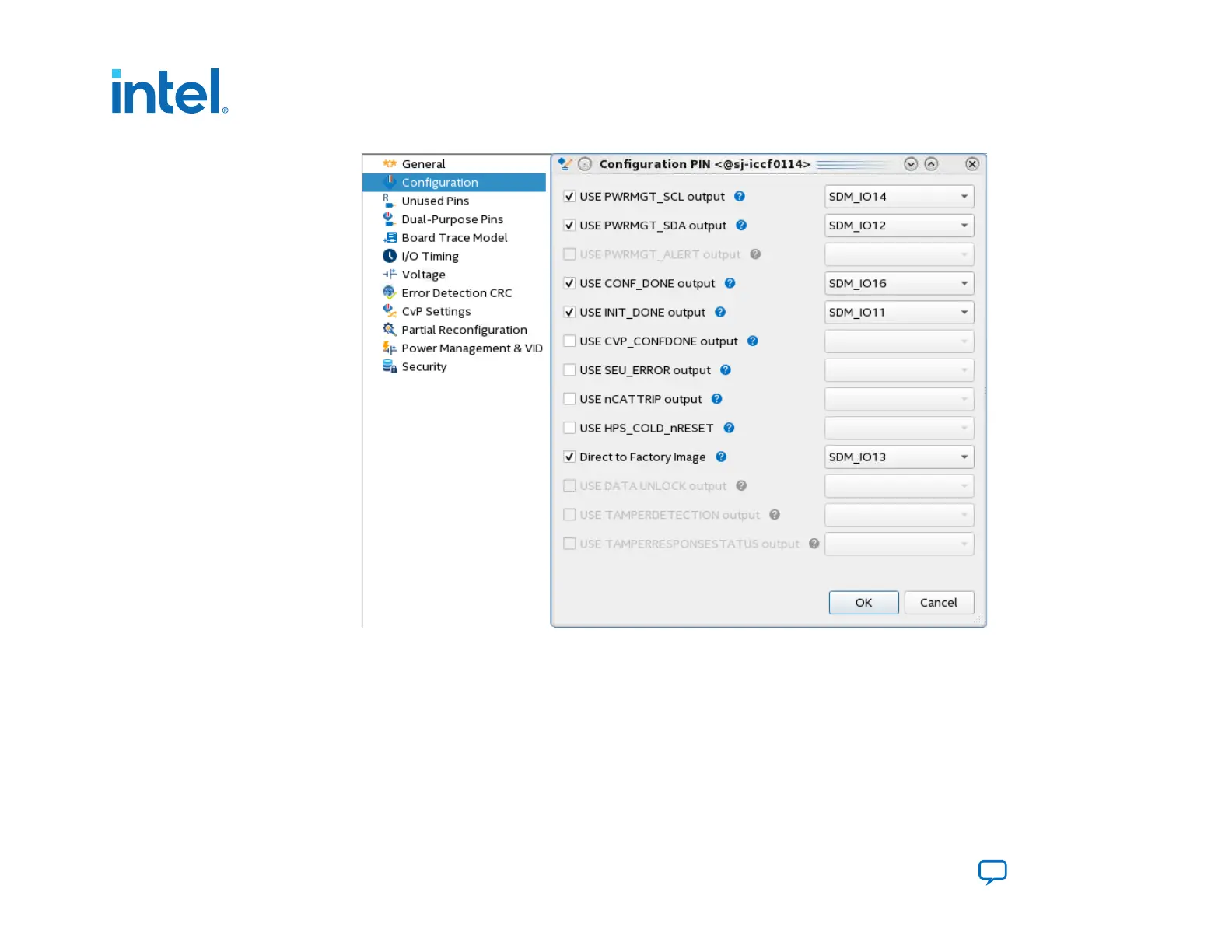

4. Click OK to confirm and close the Configuration Pin dialog box.
2.5.3.1.1. nCONFIG
The nCONFIG pin is a dedicated, input pin of the SDM. nCONFIG has two functions:
• Hold-off initial configuration
• Initiate FPGA reconfiguration
