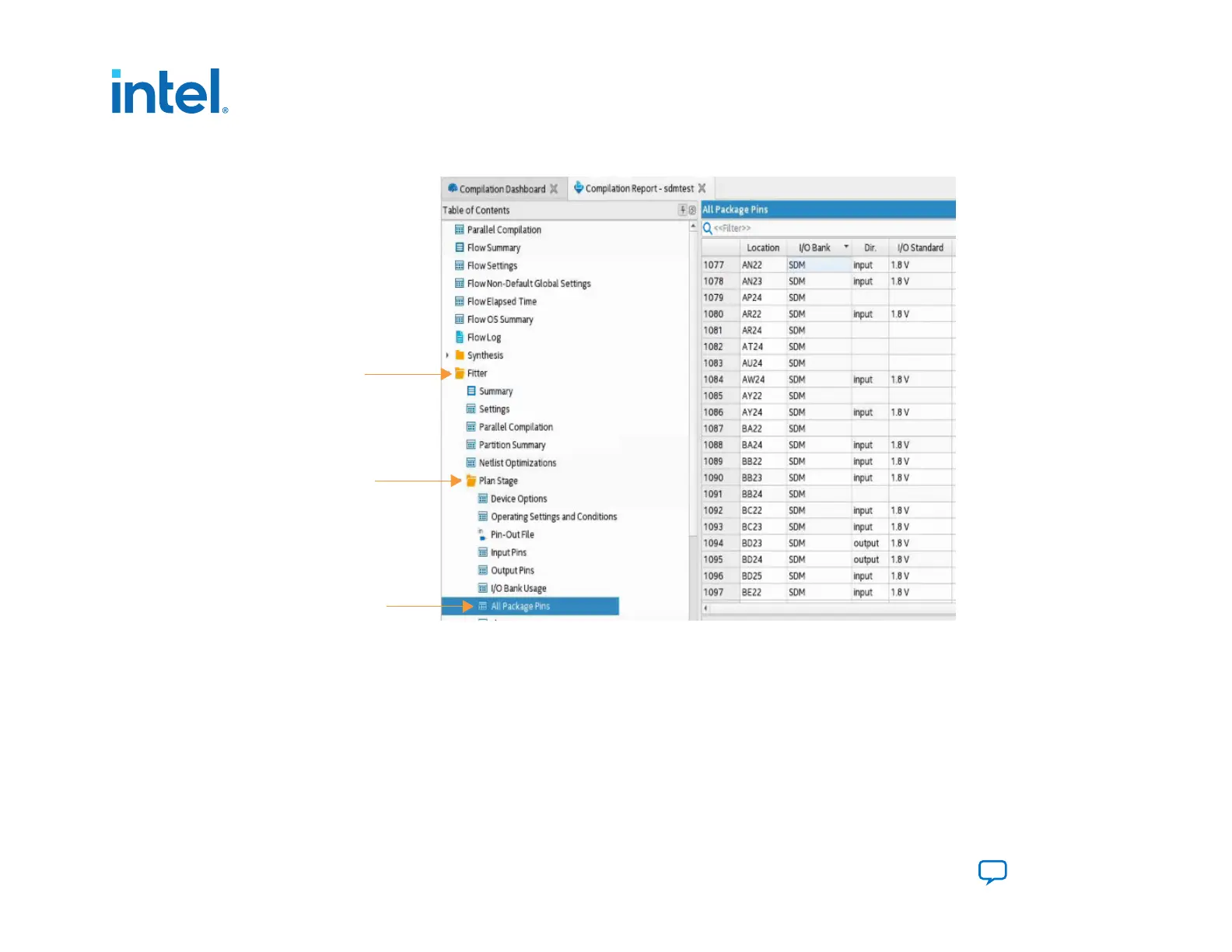

Figure 11. Fitter Report and SDM_IO Pin Reporting
2.5.3.2. Enabling Dual-Purpose Pins
AVST_CLK, AVST_DATA[15:0], AVST_DATA[31:16], and AVST_VALID are dual-purpose pins. Once the device enters user
mode these pins can function either as GPIOs or as tri-state inputs.
If you use these pins as GPIOs, make the following assignments:
• Set V
CCIO
of the I/O bank at 1.2 V
• Assign the 1.2 V I/O standard to these pins
