Intel Agilex Series

Complete the following steps to assign these settings to the dual-purpose pins:
1. On the Assignments menu, click Device.

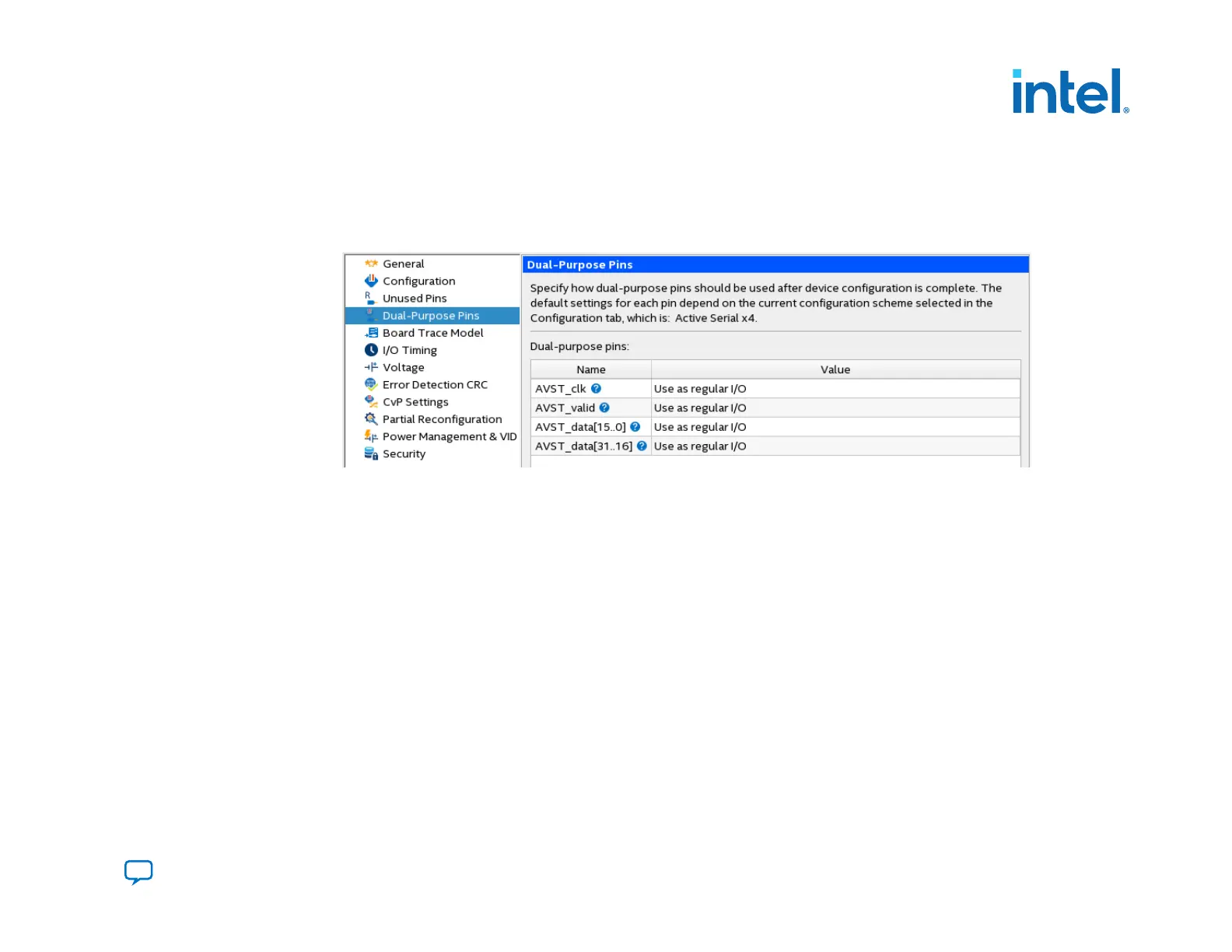

2. In the Device and Pin Options dialog box, select the Dual-Purpose Pins category.
3. In the Dual-purpose pins table, set the pin functionality in the Value column.
4. Click OK to confirm and close the Device and Pin Options
Attention: When you use the Avalon ST configuration scheme the dual-purpose Avalon ST pins have the following
restrictions:
• You cannot use the Avalon-ST interface for partial reconfiguration (PR).
• You cannot use the Avalon-ST pins in user mode in designs that include the HPS. This restriction means that you
cannot use the Avalon-ST as dual-purpose I/Os in designs that include the HPS.
2.5.3.3. I/O Standards and Features for Intel Agilex Configuration Pins
The SDM pins have different I/O standards and features in different Intel Agilex configuration schemes. You can assign the
unused SDM pins for other functions in the Intel Quartus Prime software.
