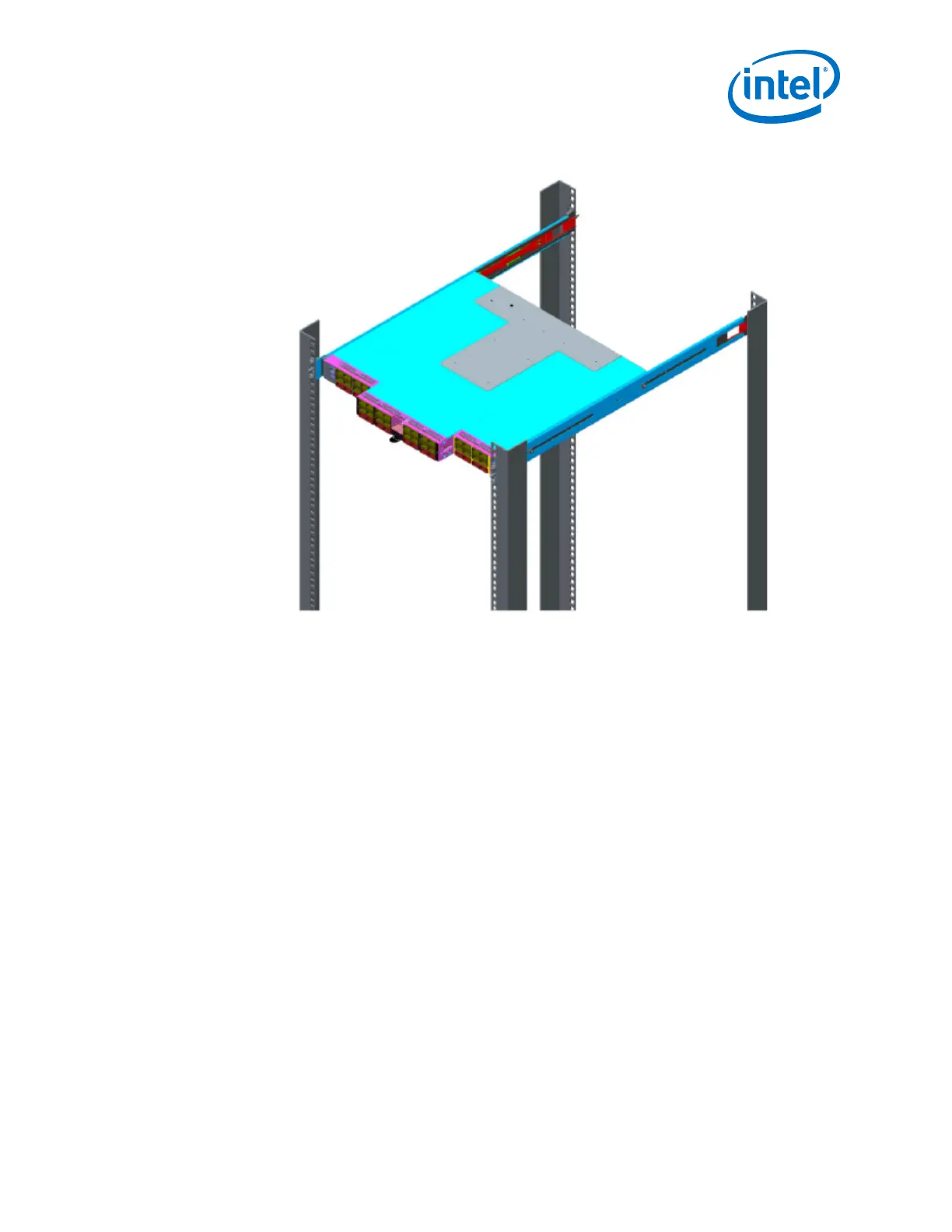

Figure 8. Intel
®
Omni-Path Fabric Edge Switch Mounted in a Four Post Standard Rack
3. The rails are designed for different mounting positions, from flush mount to
recessed (in 1 inch increments) as shown in the following figure.
Installation—Intel
®
Omni-Path Fabric
Intel
®
Omni-Path Fabric Switches Hardware
June 2019 Installation Guide
Doc. No.: H76456, Rev.: 10.0 35
