Intel Omni-Path Switch 100 Series - Secure the Baffles to Top of Shelf Rails

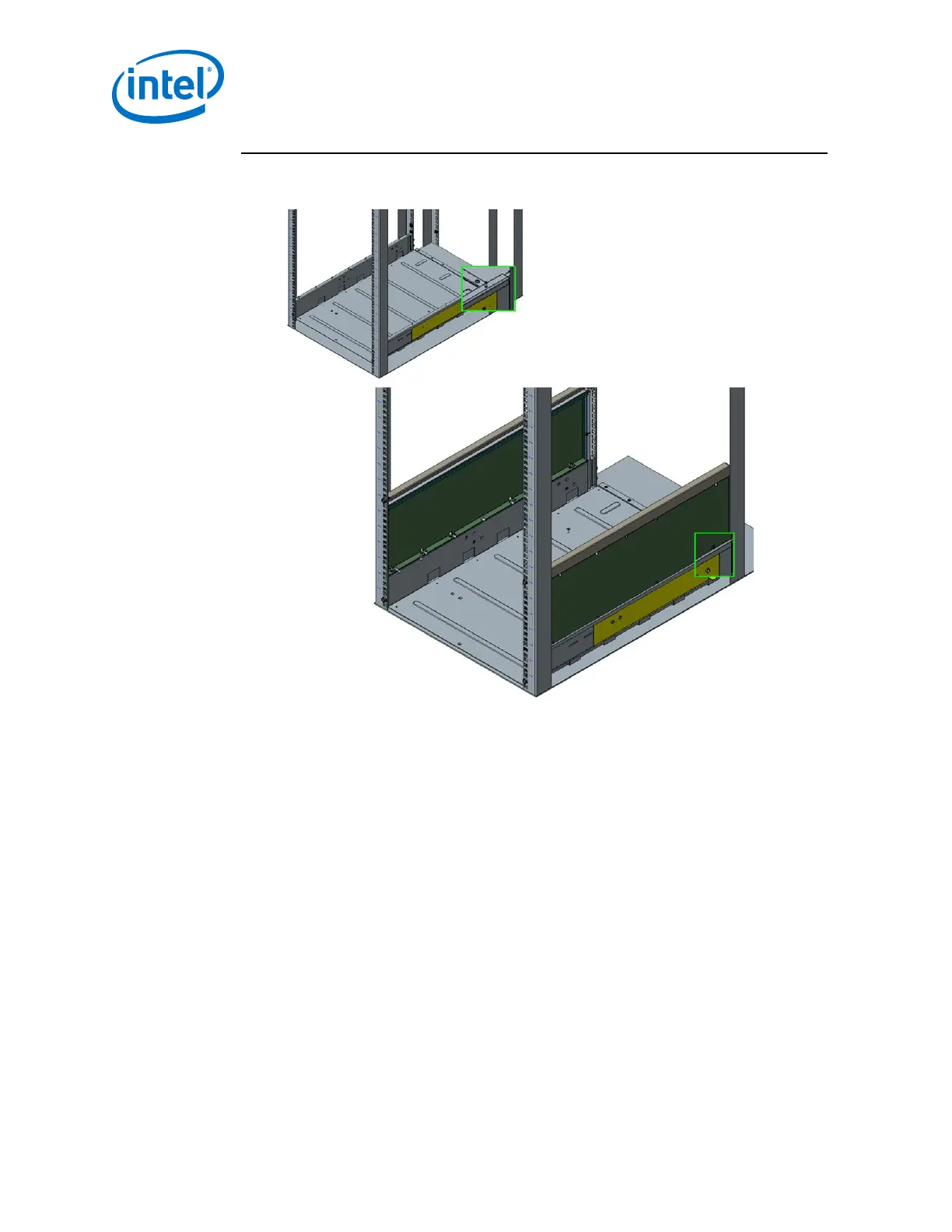

Figure 37. Secure the Baffles to Top of Shelf Rails
6. Secure the top of the baffles to the rack rail as displayed in the following figure:
• 6-Slot Chassis: use 2 mounting nuts, 1 per rail.
• 24-Slot Chassis: use the lower of the 2 openings, 1 mounting nut per rail.
