SEEB Module LEDs

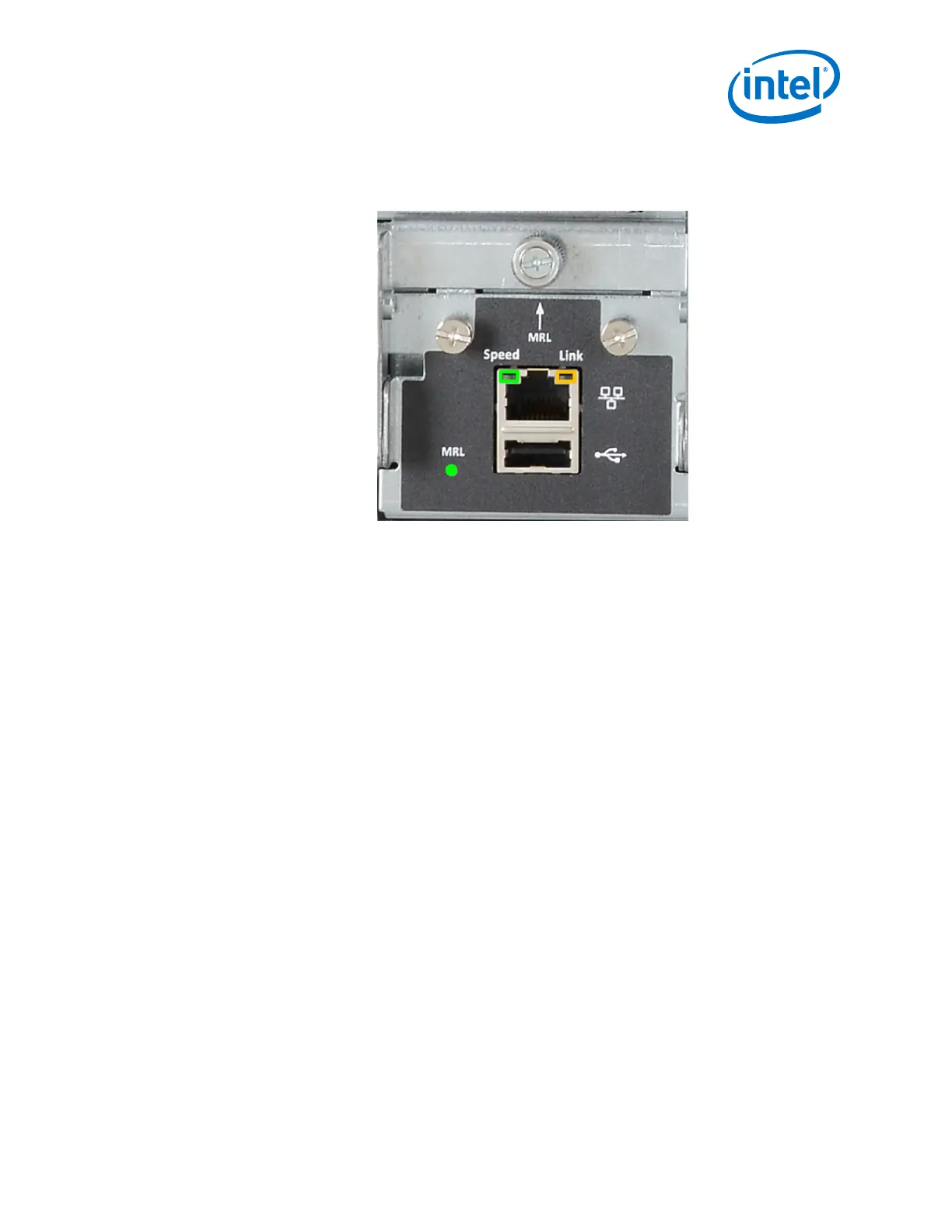

Figure 68. SEEB Module LEDs
RJ45 LEDs
The RJ45 connectors have two LEDs, Link and Speed.The Speed LED is Green when
a 100Mbps link is connected. The Link LED is Amber when an Ethernet link has been
established, and blinking when the link is active.
MRL Active
• Green: the mechanical release latch (MRL) thumbscrew is secured to the serial,
Ethernet, chassis EEPROM board (SEEB), enabling communications with a mated
management module
• Off: the mechanical release latch (MRL) thumbscrew is not engaged, disabling
communications with a mated management module
2.8.2.4
Installation—Intel
®
Omni-Path Fabric
Intel
®
Omni-Path Fabric Switches Hardware
June 2019 Installation Guide
Doc. No.: H76456, Rev.: 10.0 83
