Service (SVC)
The Chassis Service (SVC) LED indicates the following condition:
• Green: Chassis beacon is active
• Off: Not selected
Master
• Green: the module is acting as the master Management Module
• Off: Management Module is not the Master
MRL Active
• Green: the mechanical release latch (MRL) thumbscrew is secured to the
management module, enabling communications with a mated management leaf
module
• Off: the mechanical release latch (MRL) thumbscrew is not engaged, disabling
communications with a mated management leaf module
Leaf Module LEDs

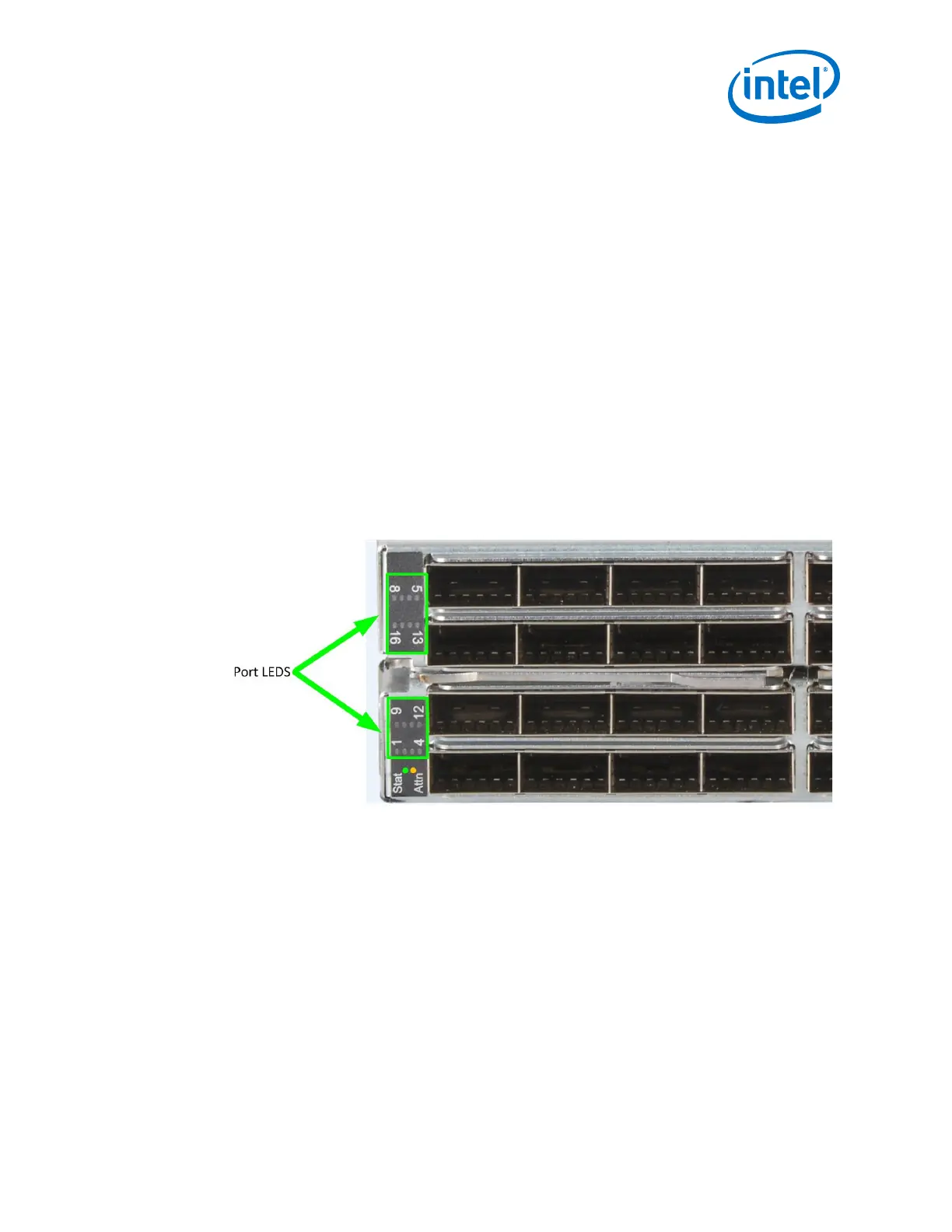

Figure 66. Leaf Module LEDs
Port LEDs
• Green: The external HFI link is in the Active Port State
• Off: Link is not active
Module Status
The status LED indicates one of the following conditions:
• Steady Green: the module is operating normally.
• Blinking Green: LED test state.
• Off: module is in the removable state.
Module Attention
The Attention LED indicates one of the following conditions:
2.8.2.2
