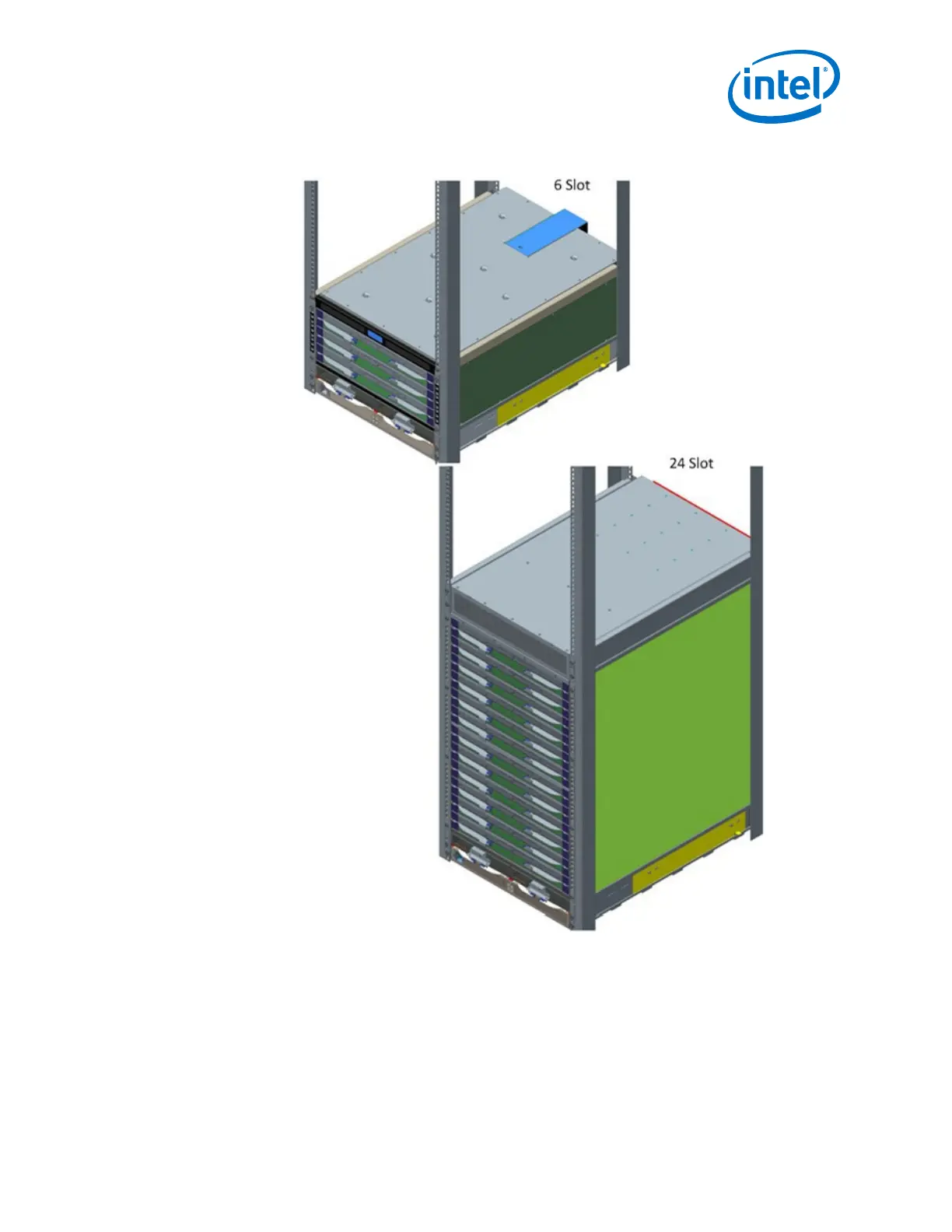

Figure 42. Completed Switch Installations
Installing the Optional Cable Management Guide
The optional Cable Management Guides are attached to the rack rails with M6 cage
nuts and screws as shown in the following figure.
2.4.4
Installation—Intel
®
Omni-Path Fabric
Intel
®
Omni-Path Fabric Switches Hardware
June 2019 Installation Guide
Doc. No.: H76456, Rev.: 10.0 59
