Power Supply LEDs

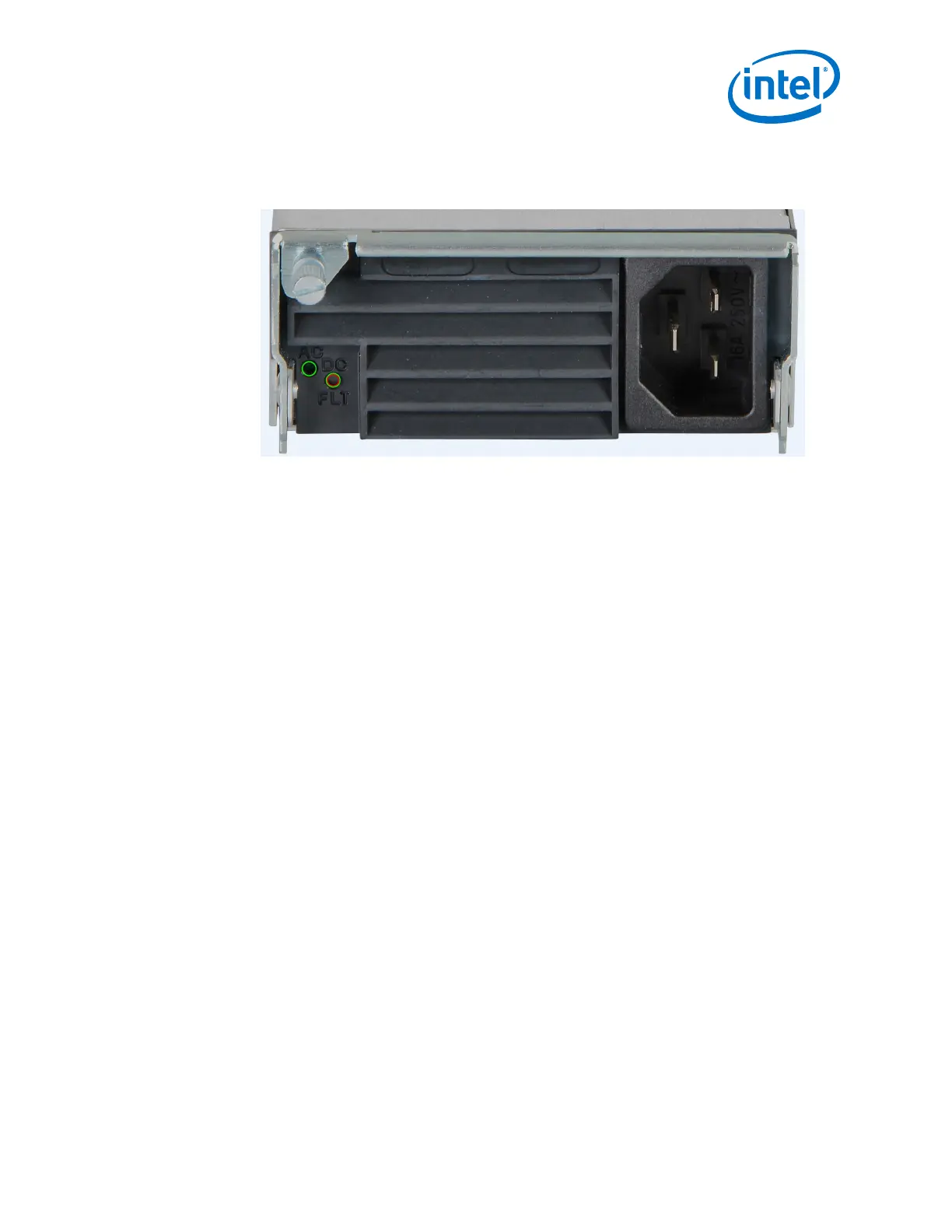

Figure 70. Director Class Power Supply LEDs
Power LEDs indicate the following status(es):
• AC: Green indicates that AC power is present.
• DC: Green indicates that DC power is present.
• FLT: Red indicates that DC power is off/interrupted (e.g., power cord not seated
properly).
Installation—Intel
®
Omni-Path Fabric
Intel
®
Omni-Path Fabric Switches Hardware
June 2019 Installation Guide
Doc. No.: H76456, Rev.: 10.0 85
