Intel Omni-Path Switch 100 Series - Installing the Q7 Management Module; Wire Assembly Strain Relief and Airflow Direction Indicators; Q7 Management Module

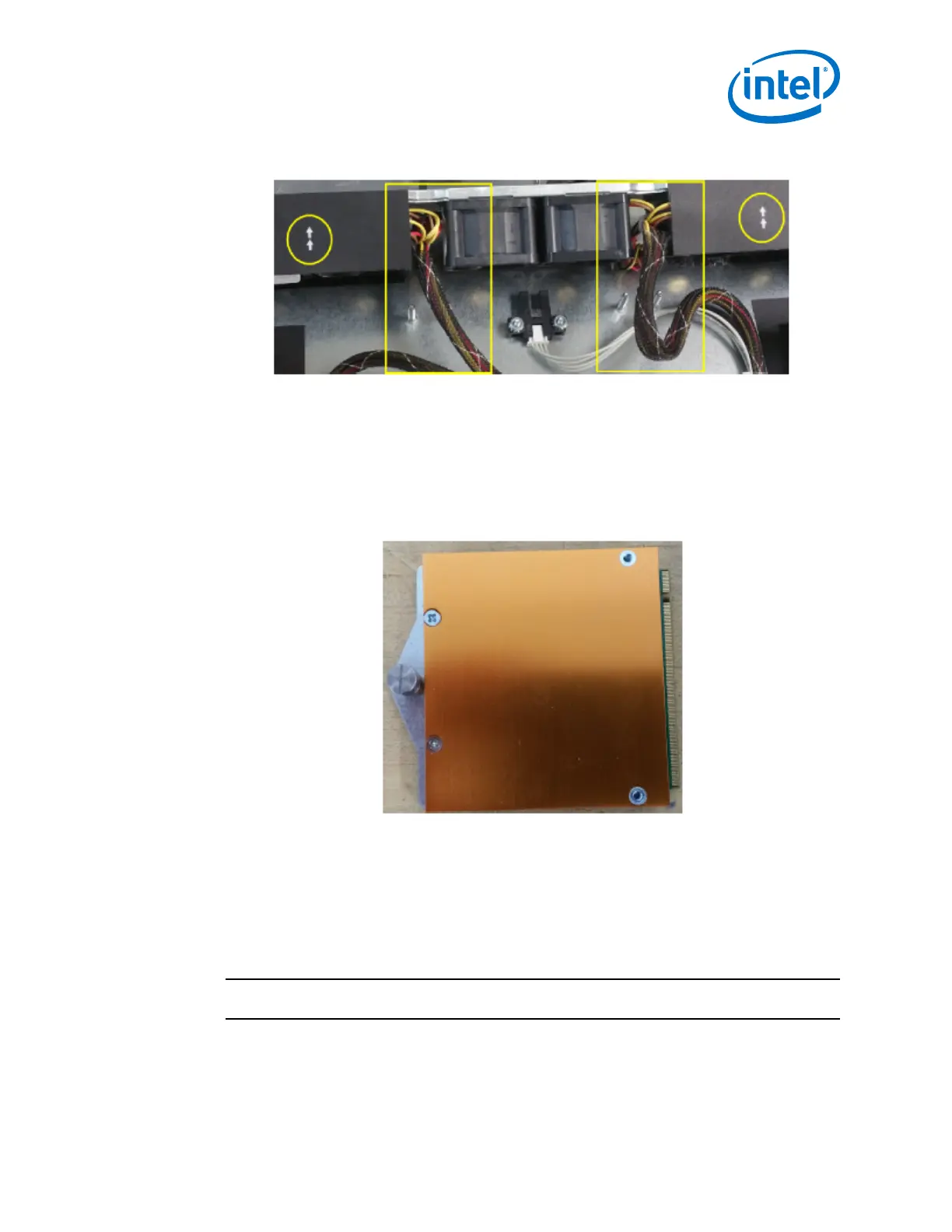

Figure 21. Wire Assembly Strain Relief and Airflow Direction Indicators
4. Reattach the switch cover.
Installing the Q7 Management Module
This section details the procedure to install the Q7 Management Module into an
existing externally-managed edge switch.
Figure 22. Q7 Management Module
Tools Required
• ESD wrist strap
• #0 Phillips screwdriver
• Regular screwdriver
Procedure
NOTE
Before removing the cover from the switch, first disconnect the power cord(s).
2.3.6
Installation—Intel
®
Omni-Path Fabric
Intel
®
Omni-Path Fabric Switches Hardware
June 2019 Installation Guide
Doc. No.: H76456, Rev.: 10.0 43
