Leaf Module Port Numbering
The physical module contains two 16-port leafs-A and B-stacked on top of each other.
The physical port numbering is shown below.

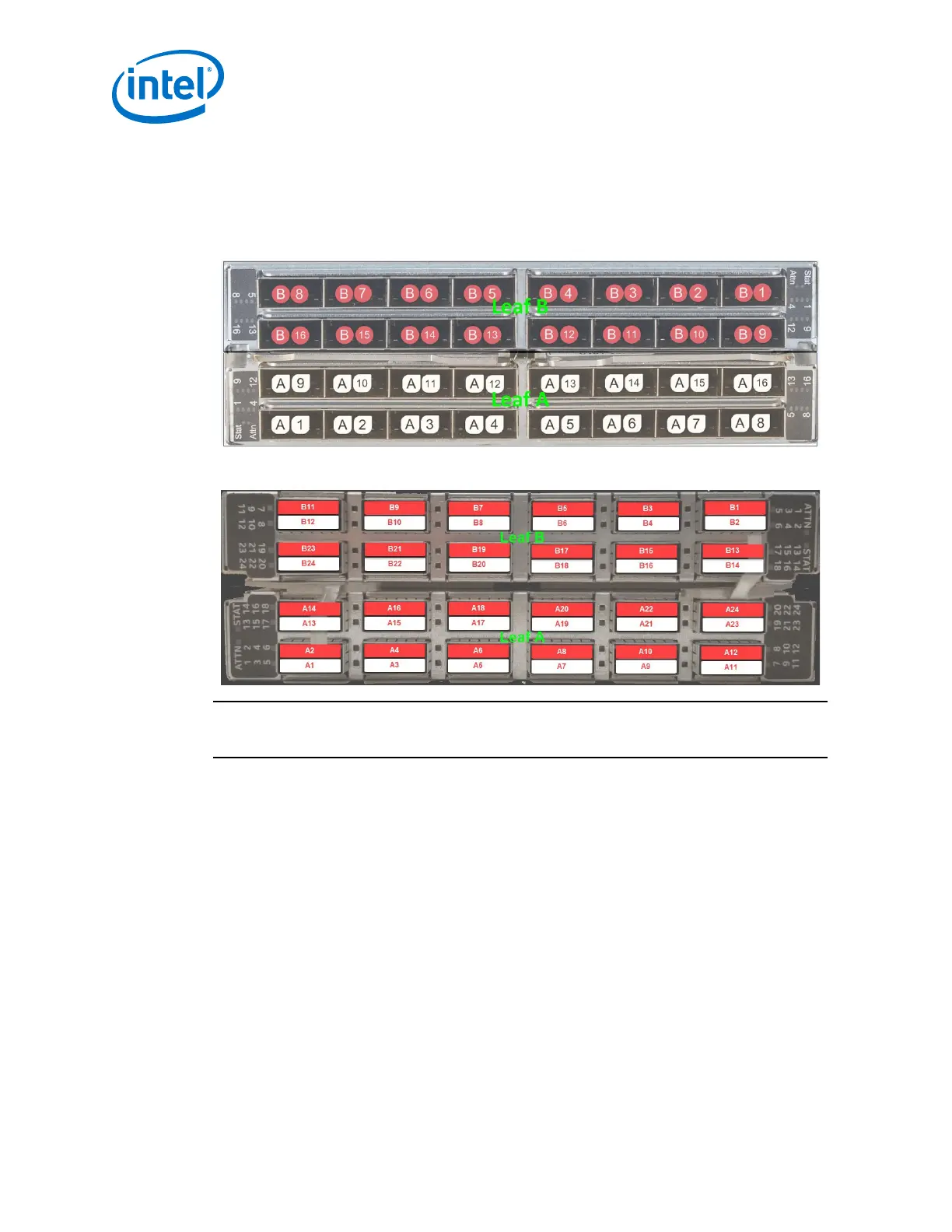

Figure 56. Leaf Module Port Numbering
Figure 57. 48-Port Leaf Module Port Numbering
NOTE
When cabling the 48-port leaf module, make certain to firmly seat the cable into the
port, otherwise only one of two ports may connect.
Chassis Viewer GUI Leaf Port Stats Screen
The Port Name column schema is a follows:
• Lxxx = Chassis leaf module slot (i.e. L101 - L124 for the 24-slot Director)
• A/B = Leaf A or B
• Pxx = Physical port number (e.g., 01 - 16)
2.5.2
2.5.2.1
Intel
®
Omni-Path Fabric—Installation
Intel
®
Omni-Path Fabric Switches Hardware
Installation Guide June 2019
70 Doc. No.: H76456, Rev.: 10.0
