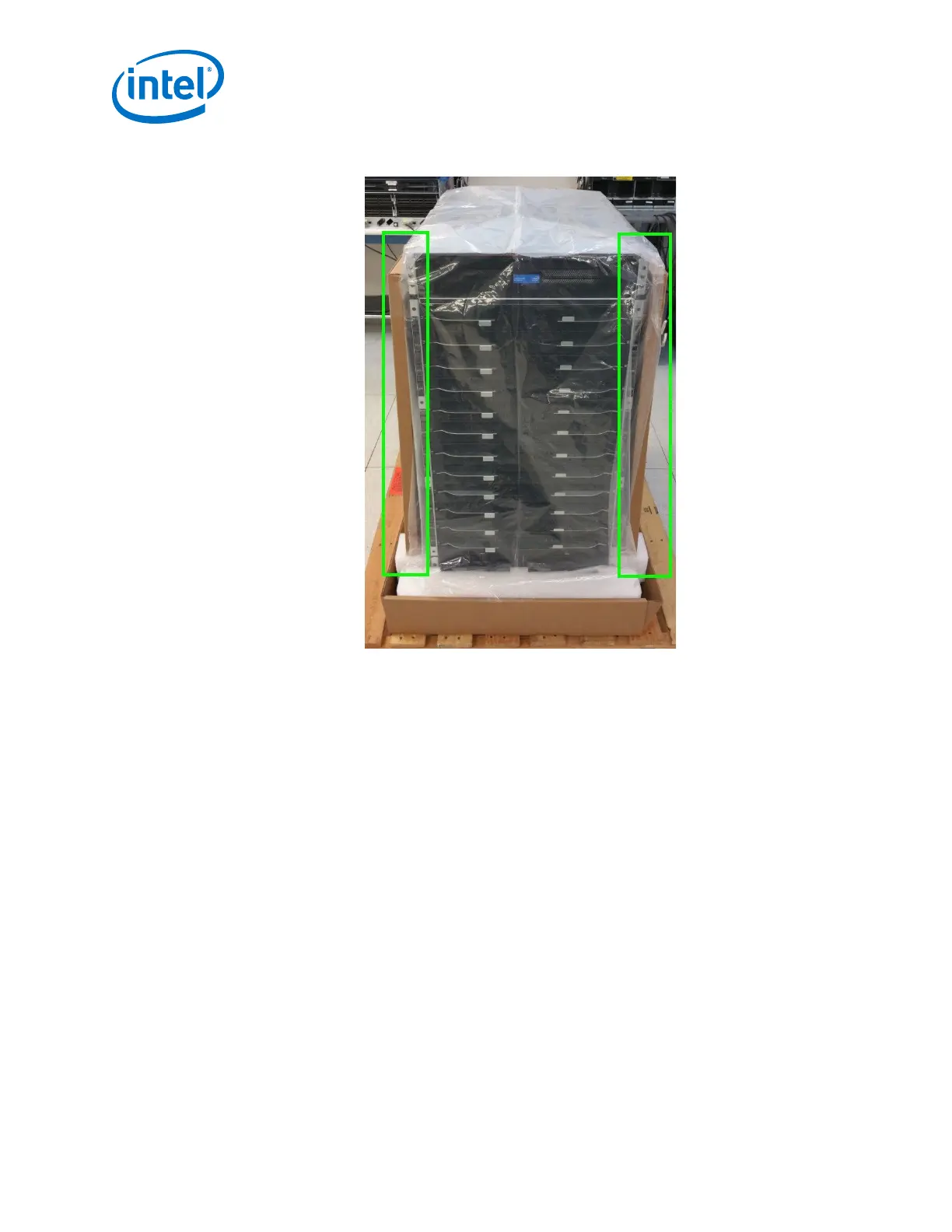

Figure 31.
Unpacking the Switch (6)
5.
Remo
ve the baffle box
es.
Intel
®
Omni-Path Fabric—Installation
Intel
®
Omni-Path F
abric Switches Hardware
Installation Guide
June 2019
50
Doc. No.: H76456, Rev
.: 10.0
