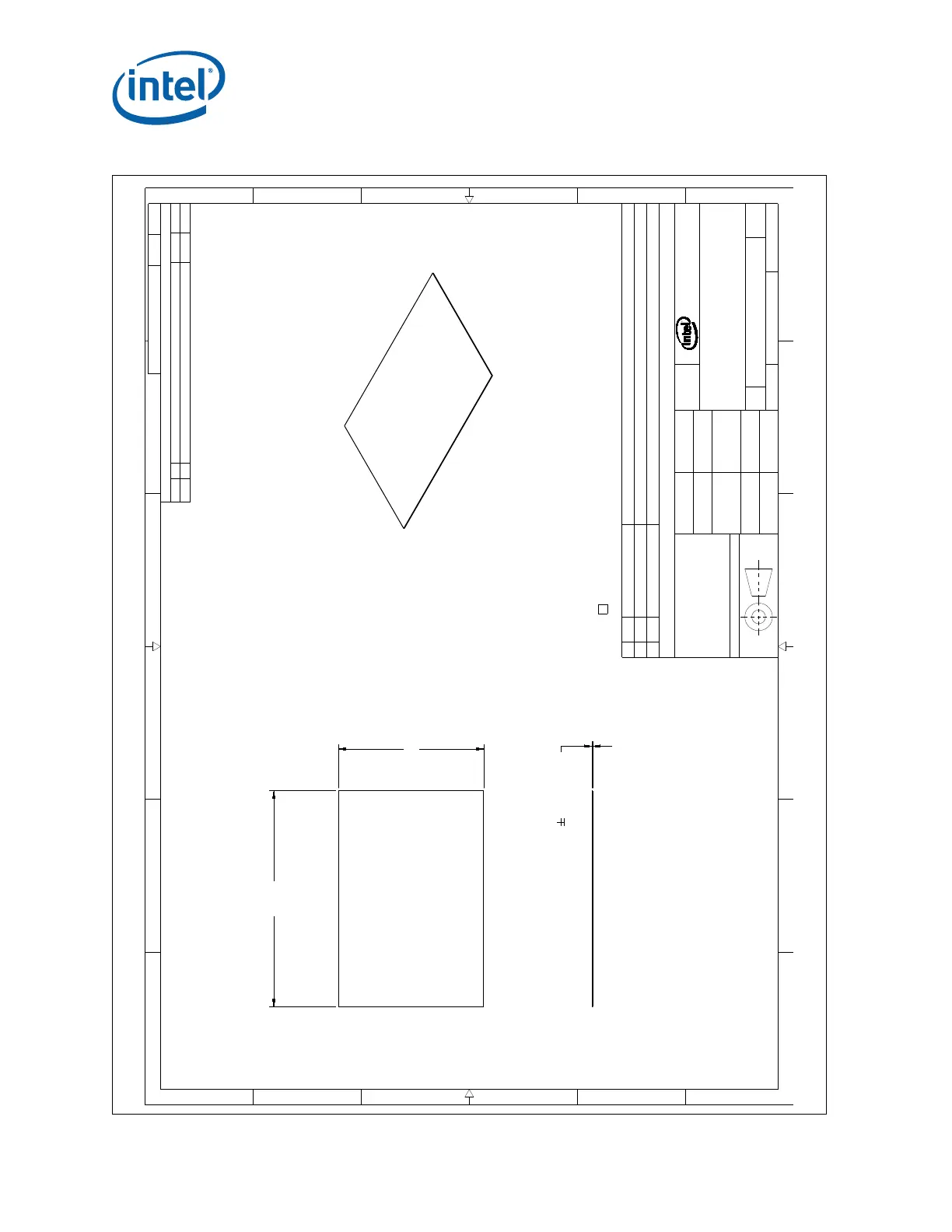

Figure E-34. 1U Heatsink, PCM45F TIM (Reference Only)
6 5 4 3 2
6 5 4 3 2 1
F
E
D
C
B
A
F
E
D
C
B
A
70±2
47±2
THK0.25 0.075
H38442 1 A
DWG. NO SHT. REV
DEPARTMENT
R
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
TITLE
TIM PCM45F, 45X70MM
SIZE DRAWING NUMBER REV
A2 H38442 A
SCALE: 2
DO NOT SCALE DRAWING
SHEET 1 OF 1
SEE NOTESSEE NOTES
FINISHMATERIAL
-
DATEAPPROVED BY
2/24/14
2/24/14
DATECHECKED BY
2/24/14
DATEDRAWN BY
2/24/14
DATEDESIGNED BY
UNLESS OTHERWISE SPECIFIED
INTERPRET DIMENSIONS AND TOLERANCES
IN ACCORDANCE WITH ASME Y14.5M-1994
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
TIM PCM45F, 47X70MMH38442-001TOP
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- A PRELIMINARY RELEASE 2/24/14
NOTES, UNLESS OTHERWISE SPECIFIED:
1. REFERENCE DOCUMENTS
ASME Y14.5M-1994 - STANDARD DIMENSION AND TOLERANCES
2. FEATURES NOT SPECIFIED ON DRAWING SHALL BE CONTROLLED BY 3D CAD DATABASE.
3. MATERIAL: PCM45F
4 DIMENSIONS ARE CRITICAL TO FUNCTION DIMENSIONS.
