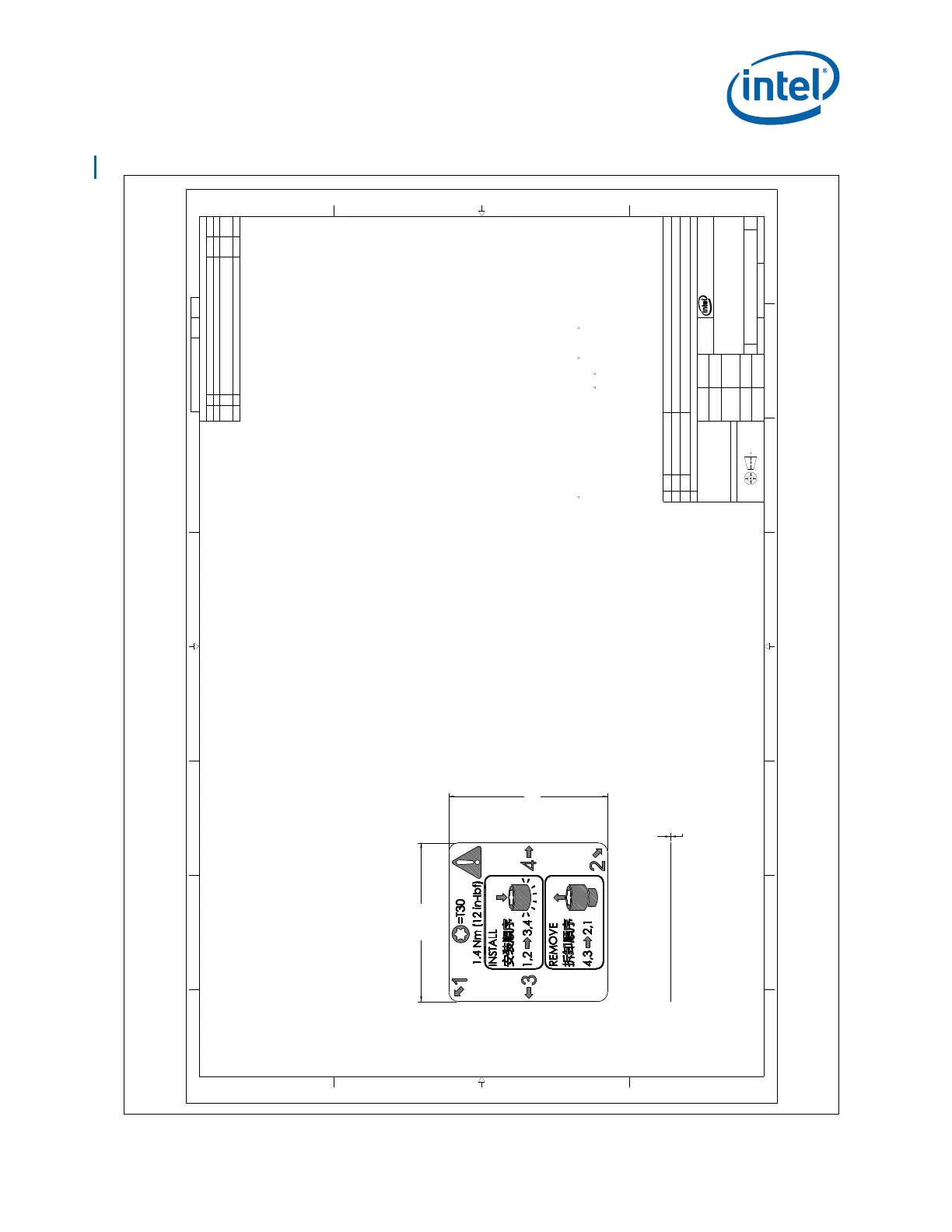

Figure E-33. 1U Heatsink, Label (Reference Only)
13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
50±1
50±1
0.15±0.1
H79111 1 C
DWG. NO SHT. REV
SHEET 1 OF 1
DO NOT SCALE DRAWING
SCALE: 3:1
CH79111D
REV
DRAWING NUMBER
SIZE
KNL HEATSINK LABEL
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
-
DATEAPPROVED BY
-
08/16/16
DATECHECKED BY
08/05/16
DATEDRAWN BY
08/05/16
DATEDESIGNED BY
UNLESS OTHERWISE SPECIFIED
INTERPRET DIMENSIONS AND TOLERANCES
IN ACCORDANCE WITH ASME Y14.5M-2009
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
KNL HEATSINK LABELH79111-00211
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- A TOOLING RELEASE 3/31/15
ALL B
LABEL CONTENT UPDATED; NOTES UPDATED WITH MATERIAL, ADHESIVE,
DURABILITY AND QUALITY REQUIREMENTS; LABEL THICKNESS AND X-Y
TOLERANCES UPDATED
8/16/2016
A2 C INTEL PART NUMBER UPDATED TO H79111-002
10/06/2016
NOTES; UNLESS OTHERWISE SPECIFIED:
1. REFERENCE DOCUMENTS
ASME Y14.5M-2009 - STANDARD DIMENSION AND TOLERANCES
UL1439 - UL SHARP EDGE TESTING
2. FEATURES NOT SPECIFIED ON DRAWING SHALL BE CONTROLLED BY 3D CAD DATABASE.
3. LABEL MATERIAL: PET, APPROXIMATELY 0.15MM THICK, WHITE.
4. LABEL CONTENT: BLACK
5. ADHESIVE: PERMANENT ACRYLIC ADHESIVE, 20 +/-4 G/M
2
6. RELIABILITY REQUIREMENTS:
PRINT RESISTIVITY- MUST SUPPORT THERMAL TRANSFER PRINT DURABILITY/RESISTIVITY
AGAINST CHEMICAL DEGRADATION - ALL TESTING IN ACCORDANCE WITH MIL STD 883/2015.13
DURABILITY-MUST DEMONSTRATE DURABILITY IN PRESENCE OF ENVIRONMENTAL
CONDITIONS, HUMIDITY (32
C/90%RH FOR 7 DAYS), TEMP CYCLE (-7 C TO 50 C FOR 7 DAYS)
SHELF LIFE-1 YEAR (BEFORE APPLICATION) WITHOUT DETRIMENT TO ADHESION OR
CONSTRUCTION, IF STORED IN PROPER ENVIRONMENT- 10
-25 C, 40%-60% RH, NO SUN EXPOSURE.
7. QUALITY REQUIREMENTS:
IMAGE FLOAT - 0.75MM IN ANY DIMENSION (X OR Y)
LABEL ALIGNMENT - DEFINED IN APPLICABLE HEATSINK DRAWING
LABEL PEELING - LESS THAN OR EQUAL TO 1MM
SCRATCHES- SCRATCHES/SCUFFING MUST BE LESS THAN OR EQUAL TO 0.03MM ALONG DEPTH
AND WIDTH, AND LESS THAN OR EQUAL TO 1.27MM ALONG THE LENGTH.
