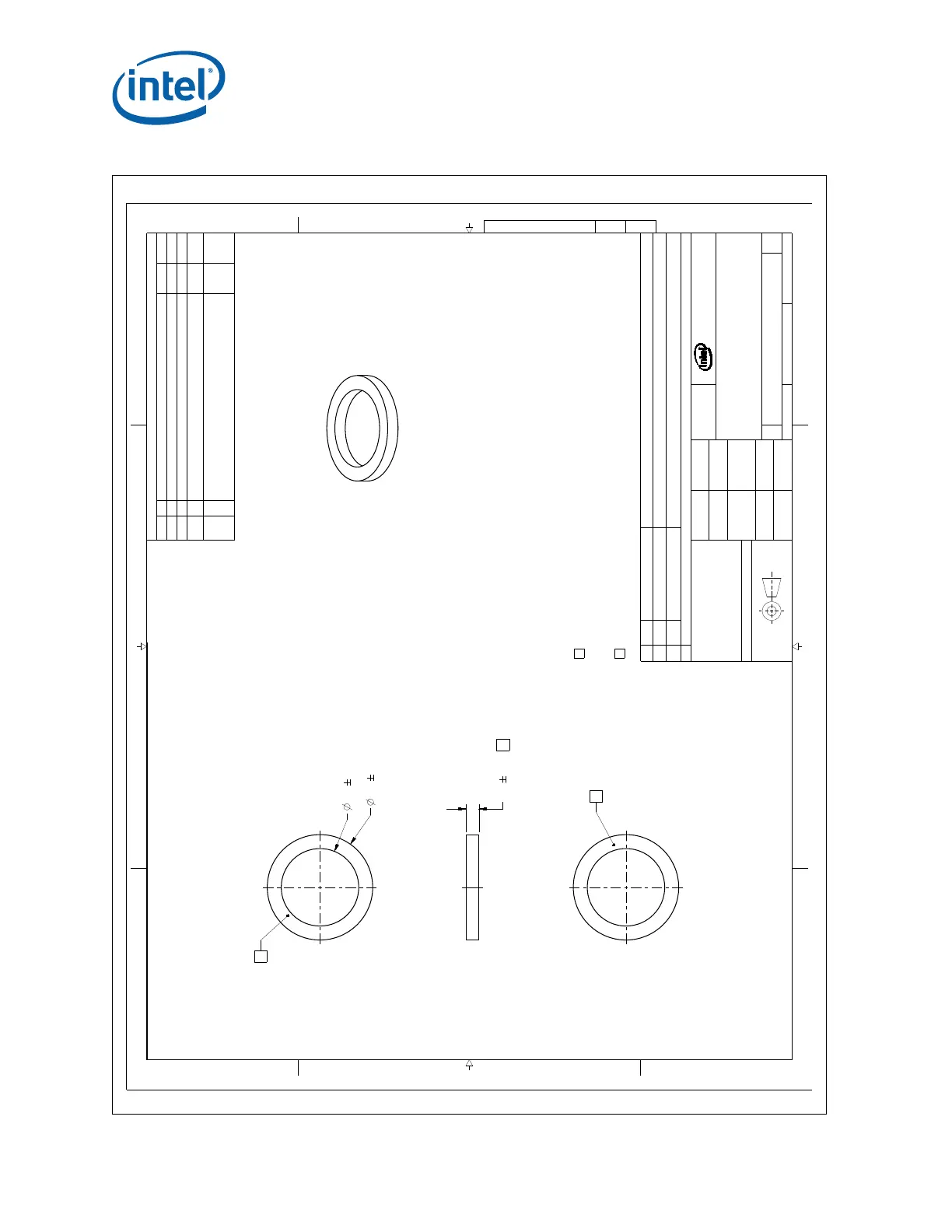

Figure E-38. 1U Heatsink, Delrin* Washer (Reference Only)
A
4
B
3
C
D
4
3
2
1
A
2
C
1
D
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
6.10 .10
8.30 .10
41.00 .05
H37265 1 D
DWG. NO SHT. REV
SHEET 1 OF 1
DO NOT SCALE DRAWING
SCALE: 8.000
DH37265C
REV
DRAWING NUMBER
SIZE
SKT-P DELRIN HEATSINK WASHER
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
DATEAPPROVED BY
2/20/14
DATECHECKED BY
2/11/14
DATEDRAWN BY
2/11/14
DATEDESIGNED BY
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
SKT-P DELRIN HEATSINK WASHERH37265-004TOP
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- A PRELIMINARY RELEASE 2/11/14
B3 B INCREASED THICKNESS TO 1MM 3/5/14
C3 C
1. INCREASED INNER DIAMETER FROM 5.65MM TO 6.0MM
2. ROLLED PART NUMBER FROM H37265-002 TO H37265-003.
9/24/15
C3
D
1. INCREASED THE INNER DIAMETER AND TOLERANCE FROM
6.0+/-.05 TO 6.1+/-0.10
2. ROLLED THE PART NUMBER FROM H37265-003 TO
H37265-004.
9/30/15
NOTES; UNLESS OTHERWISE SPECIFIED:
1. REFERENCE DOCUMENTS
99-0007-001 - INTEL WORKMANSHIP STANDARD - SYSTEMS MANUFACTURING
18-1201 - INTEL ENVIRONMENTAL PRODUCT CONTENT SPECIFICATION FOR SUPPLIERS & OUTSOURCED
MANUFACTURERS (FOUND ON EHS WEBSITE - https://supplier.intel.com/static/EHS/)
2. INTERPRET DIMENSIONS PER ASME Y14.5M-2009.FEATURES NOT SPECIFIED ON DRAWING SHALL BE
CONTROLLED BY 3D CAD DATABASE.
3. MATERIAL: MAY USE INTEL ENGINEERING APPROVED EQUIVALENT.
ALL SUBSTANCES IN THIS PART MUST CONFORM TO INTEL ENVIRONMENTAL PRODUCT SPECIFICATION (BS-MTN-0001).
A) DELRIN ACETAL RESIN. 500P NC010.
B) PIGMENT: EAGLE 7058 (1%)
C) COLOR: BLACK.
4 CRITICAL TO FUNCTION DIMENSION (CTF).
5. PART SHALL BE FREE OF OIL AND DEBRIS.
FINISH: UNSPECIFIED SURFACES MUST CONFORM WITH CLASS C REQUIREMENTS.
6 NO GATING ALLOWED ON THESE COMPONENT MATING SURFACES.
6
6
