Intellian OW70L-Dac User Manual

OW70L-Dac - OneWeb LEO User Terminal
22

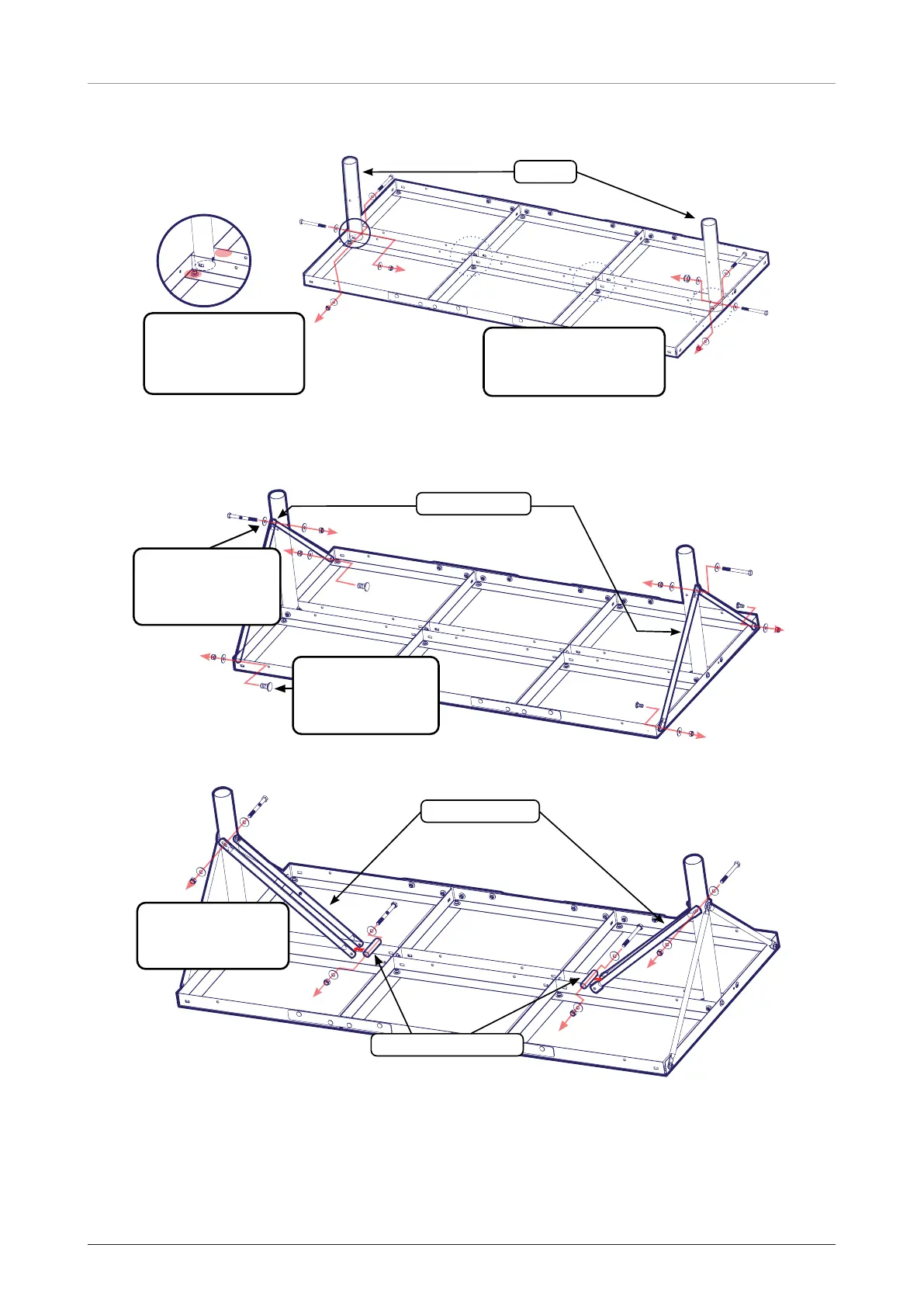

3. Assemble 2 mast poles with bolt kits.
5/16"-18*3-1/8" Hex-
head cap screw (4 ea), 5/16"-
18 washer (8 ea),
5/16"-18 Nylon nut (4 ea)
Adjust the width along
with mast pole and tighten
the screws.
Suggest torque: 12.5 N-m
Max torque: 21.4 N-m
Mast pole
4. Assemble 4 side supporting rods with bolt kits
5/16"-18*3-1/8" Hex-
head cap screw (2 ea),
5/16"-18 washer (4 ea),
5/16"-18 Nylon nut (2 ea)
Side supporting rod
5/16"-18*5/18" Round
Flat head screw (4 ea),
5/16"-18 washer (4 ea),
Nylon nut (4 ea)
5/16"-18*3-1/8" Hex-
head cap screw (2 ea),
5/16"-18 washer (4 ea),
5/16"-18 Nylon nut (2 ea)
Side supporting rod
Bush (Ø8.5/Ø12.5*L60)

Intellian OW70L-Dac Specifications

General

Brand	Intellian
Model	OW70L-Dac
Category	Antenna
Language	English
