Appendix A — Specifications
96 IF2 Network Reader User Manual
Ethernet Port

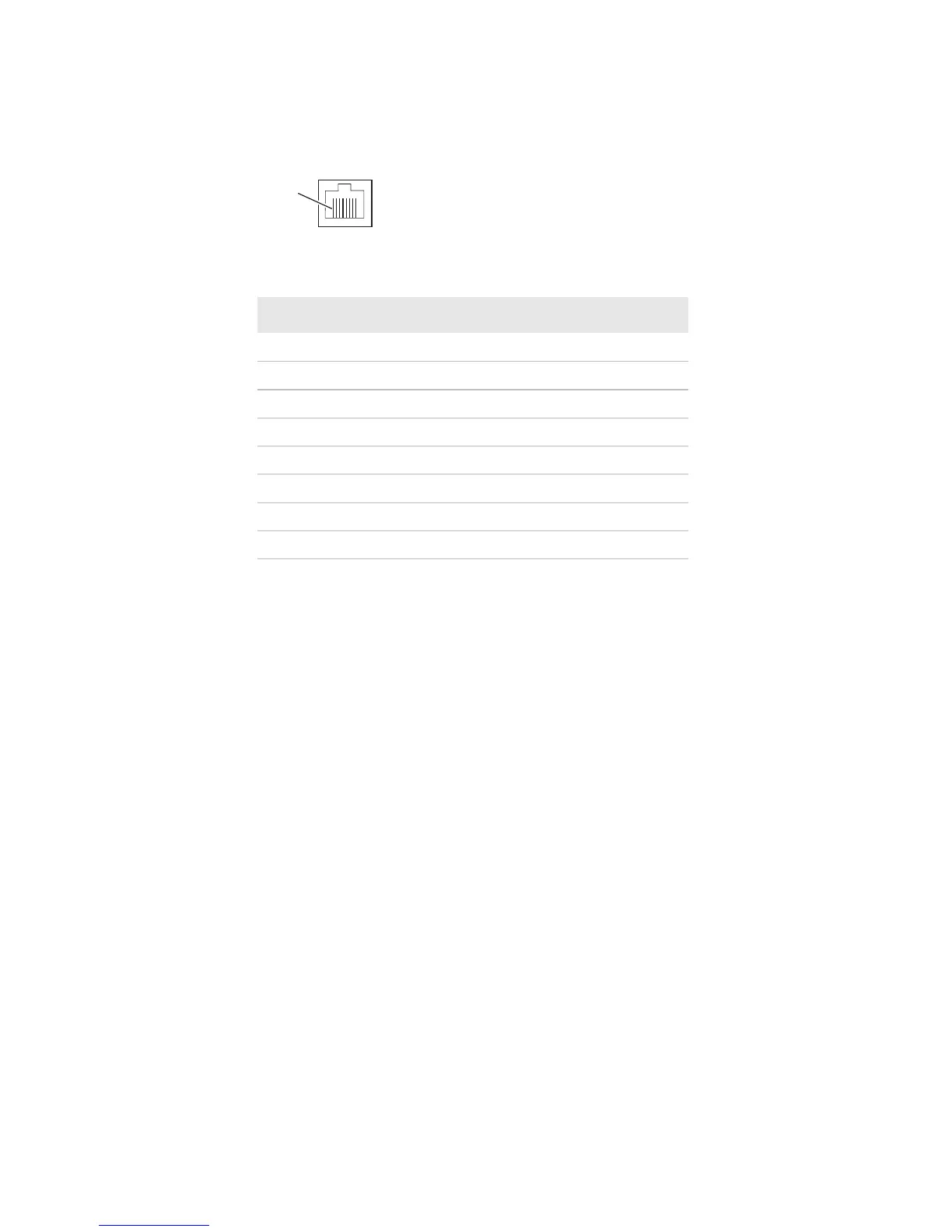

Ethernet Port Pin Assignments
Pin Description
1 Ethernet TX+/Spare POE return
2 Ethernet TX-/Spare POE return
3 Ethernet RX+/Spare POE 48 VDC
4 Not used/POE 48 VDC
5 Not used/POE 48 VDC
6 Ethernet RX-/Spare POE 48 VDC
7Not used/POE return
8Not used/POE return
Pin 1
