Chapter 3 — Configuring the Printer
32 EasyCoder PD42 Printer User’s Guide
While in Setup mode, use the soft keys to navigate through the
various options in the setup tree.
The main nodes of the setup tree are organized in a loop, as
shown below (detailed overviews are provided in Appendix C
(Fingerprint) and Appendix D (IPL)). Each main node branches
out to a number of sub-nodes. At startup, the firmware
determines if optional equipment such as a cutter or an interface
board is installed in the printer, and these are added to the Setup
tree.

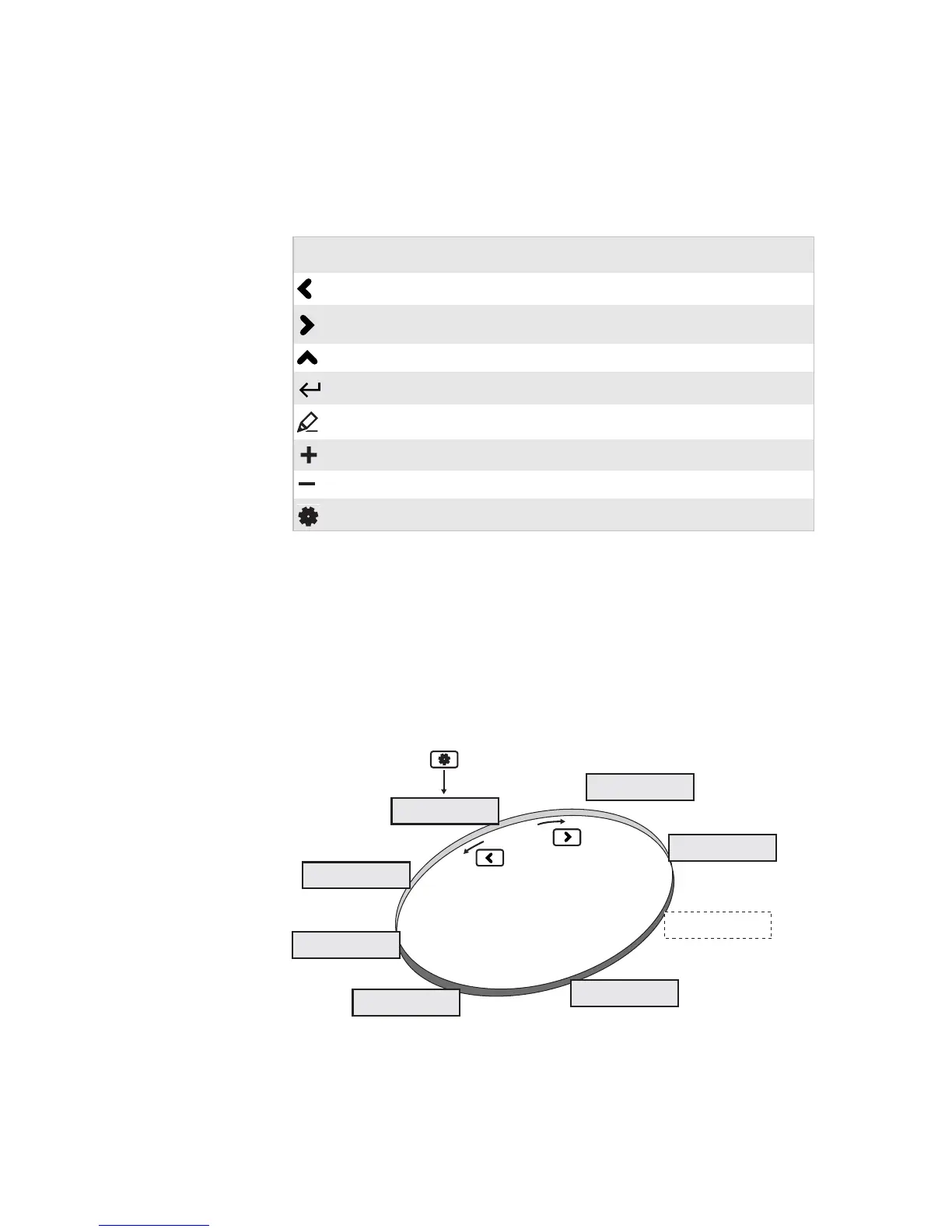

The main nodes of the Setup tree (Fingerprint).
Navigating in Setup Mode
Soft Key Function
Move one menu item to the left on the same level.
Move one menu item to the right on the same level.
Move up one level.
Acknowledge/Move down one level.
Edit value
Increase value
Decrease value
Exit Setup mode.
SETUP:
SER-COM, UART1
SETUP:
PRINT DEFS
SETUP:
MEDIA
SETUP:
FEEDADJ
SETUP:
NETWORK
Option
Starting point
SETUP:
COM
SETUP:
EMULATION
SETUP:
NET-COM, NET1
