Appendix A — Specification, Interfaces, and Options
EasyCoder PD42 Printer User’s Guide 65
USB Host Interface
The PD42 printer is equipped with a USB host interface, which
means you can connect various USB devices (bar code scanners
and keyboards of HID type, memory sticks and USB hubs) for
use with the printer.
EasyLAN Ethernet Interface
The EasyLAN Ethernet interface has an RJ-45 socket for use
with a standard RJ-45 cable. The interface supports 10/100
Mbps Fast Ethernet (10BASE-T, 100BASE-TX) and is fully
compliant with the IEEE 802.3u standard. The network card
MAC address can be found on the label below the socket.
One yellow and one green LED indicate the network status as
follows:

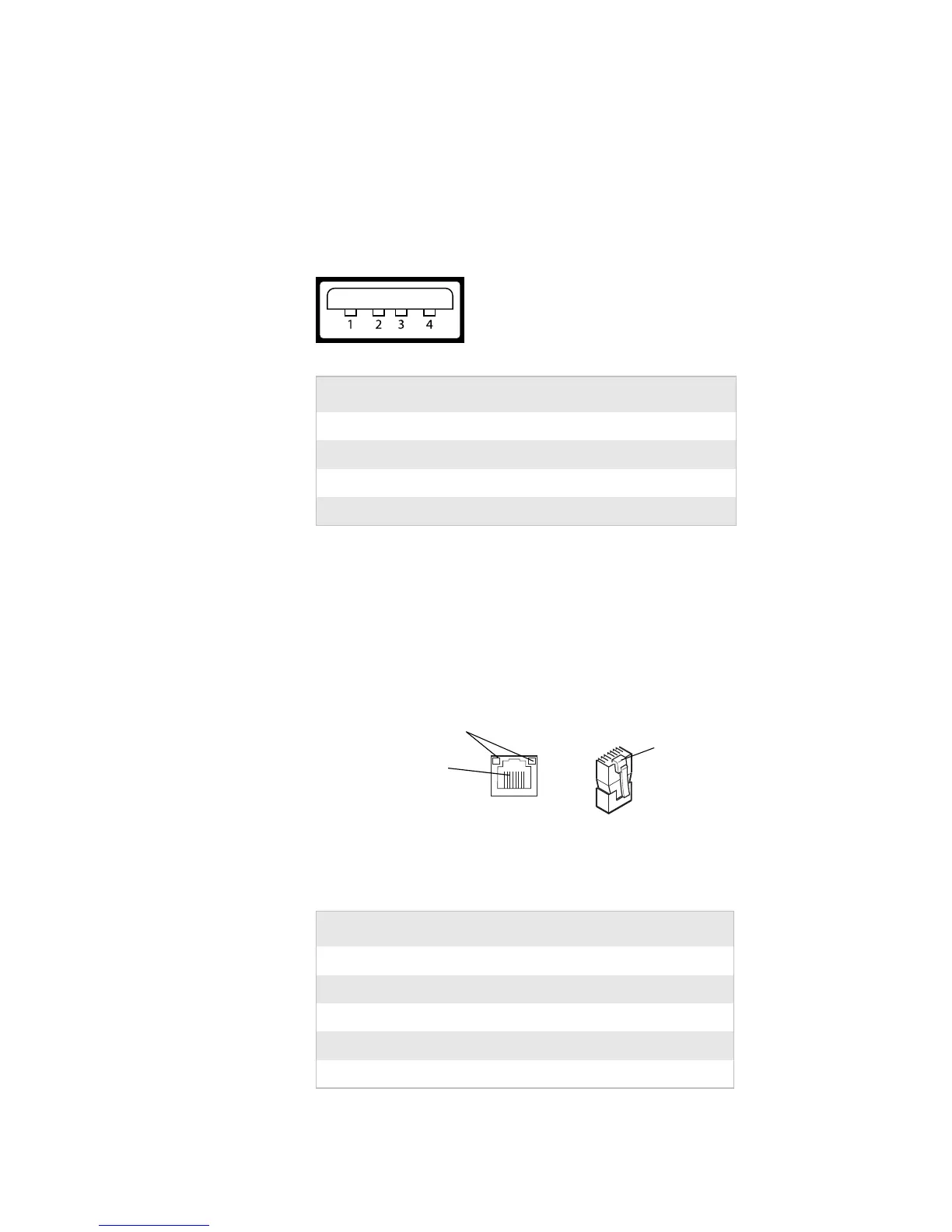

Pin Function
1VBUS
2 D-
3D+
4 Gnd
Network Status LEDs
Green On Link
Off No link
Blinking Activity
Yellow On 100BASE-TX
Off 10BASE-T
Ethernet RJ-45
Ethernet RJ-45
connector
socket
Network status LEDs
