Appendix B — Media Specifications
70 EasyCoder PD42 Printer User’s Guide
Media Roll Sizes
The media roll must comply with the following dimensions:

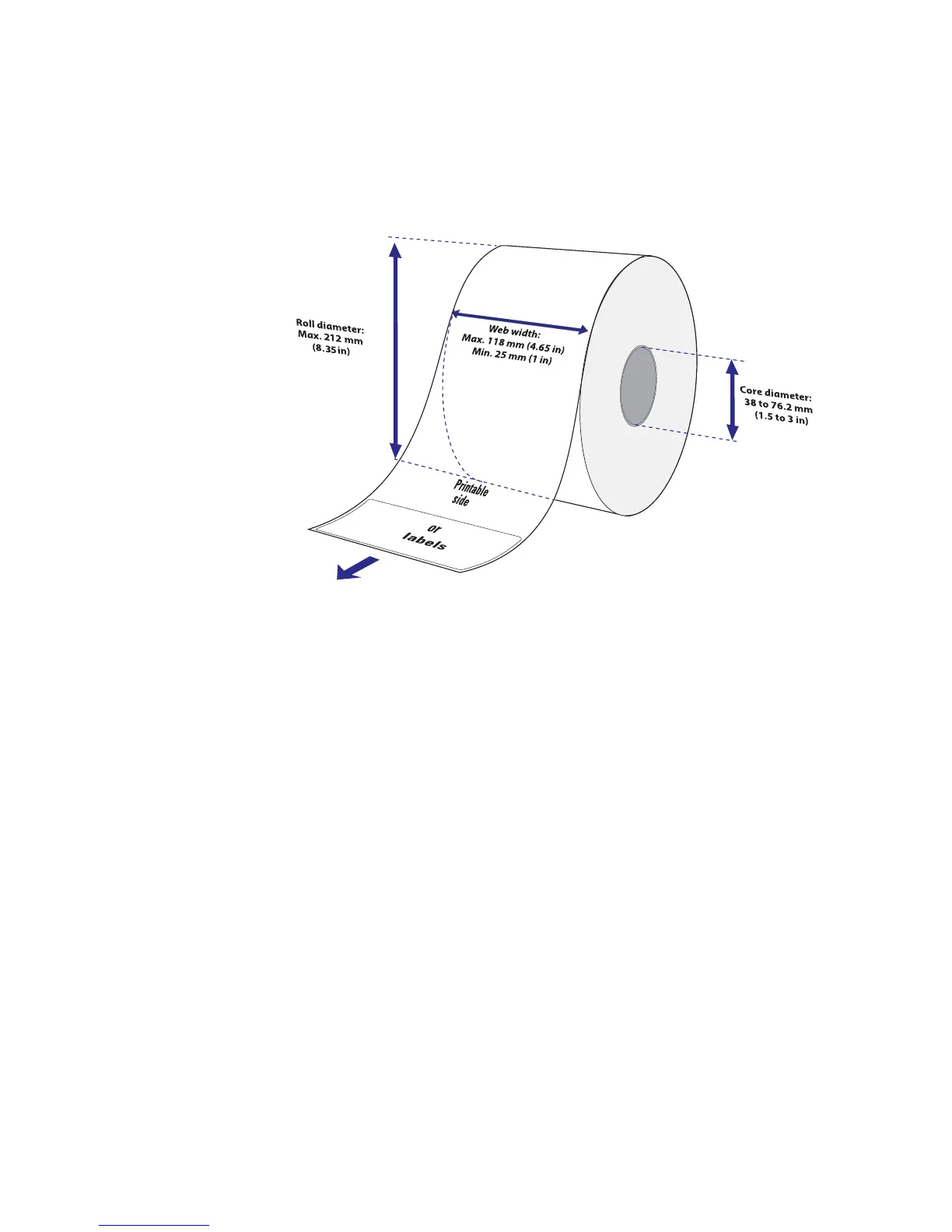

Media Roll Dimensions
Core
Internal Roll
Thicker media may be used, but print quality will be reduced. the
stiffness is also important, and must be balanced against thickness
to maintain print quality.
Diameters: 38 to 76.2 mm (1.5 to 3 inches)
Width: Must not protrude outside the media.
Max. diamater 212 mm 8.35 inches
Max diameter with
internal rewinder
190 mm 7.5 inches
Max. width 118 mm 4.65 inches
Max. width with cutter 114 mm 4.49 inches
Min. width 25 mm 1.00 inches
Thickness 60 to 250 μm 2.3 to 9.8 mils
