Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
29 of 70
Intermec Proprietary Document
OPERATION:
Ribbon Adjust Sub Assembly
The purpose of the ribbon adjust assembly is to adjust the ribbon alignment for ribbon wrinkle for printers with thermal
transfer ribbon option. Direct thermal printer will not have the ribbon adjust sub-assembly.
Tools Required
Description
Part Number
Torx Driver
T10
Torx Driver
T20
Parts Required
Item
Part Number
Description
Qty
1
710-099S-001
Ribbon Adjust Sub Assembly, Spare (include screws, washer, rod, and plate)
1
LSS Upper Sensor Assembly Replacement
1. Remove the torx screw securing the ribbon adjust assembly. See Figure 1.
2. Slide the ribbon adjust assembly toward the electronics and gears side to remove from the spine (main deck).
3. Reverse the instructions for re-installation.

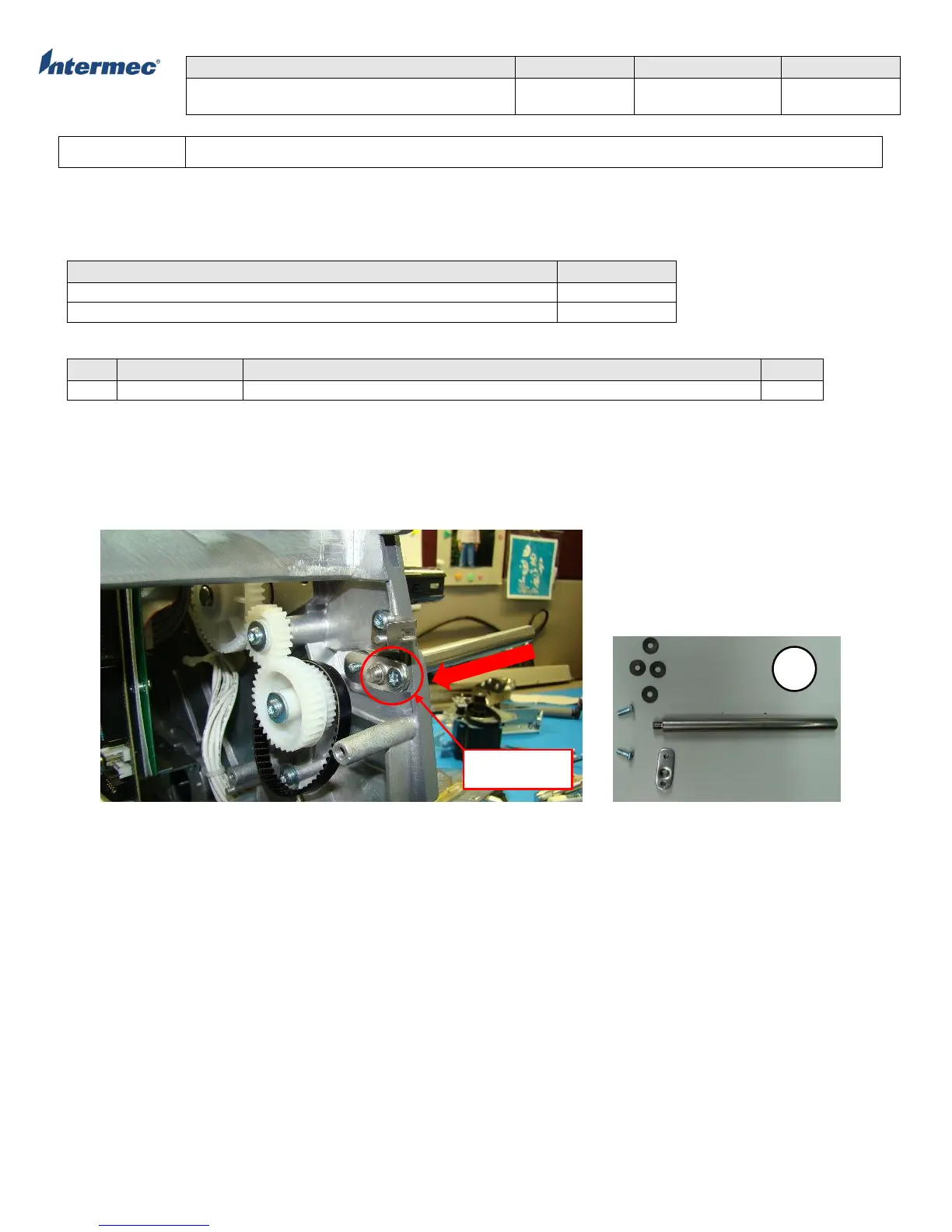

Figure 1 Ribbon Adjust Sub Assembly, Spare
Torx screw
1

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
