Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
47 of 70
Intermec Proprietary Document
OPERATION:
PM43/PM43c Speaker
Different speaker assembly for PM43 and PM43c.
Tools Required
Description
Part Number
Torx Driver
T10
Parts Required
Item
Part Number
Description
Qty
1
201-026-001
Kit, Speaker, Spare, PM43 (include torx screws 1-994066-08 x2)
1
2
201-027-001
Kit, Speaker, Spare, PM43C (include torx screws 1-994066-08 x2)
1
3
1-994066-08
Screw MRT M2X8 ZP
2
Speaker Replacement
1. Remove the front panel to access the speaker assembly. See page 11 on how to remove the front panel.
2. Remove the torx screws securing the speaker assembly. See Figure 1 & Figure 2.
3. Disconnect the speaker cable from the main logic board (MLB) and remove the speaker assembly.
4. Reverse the procedure for re-installation.

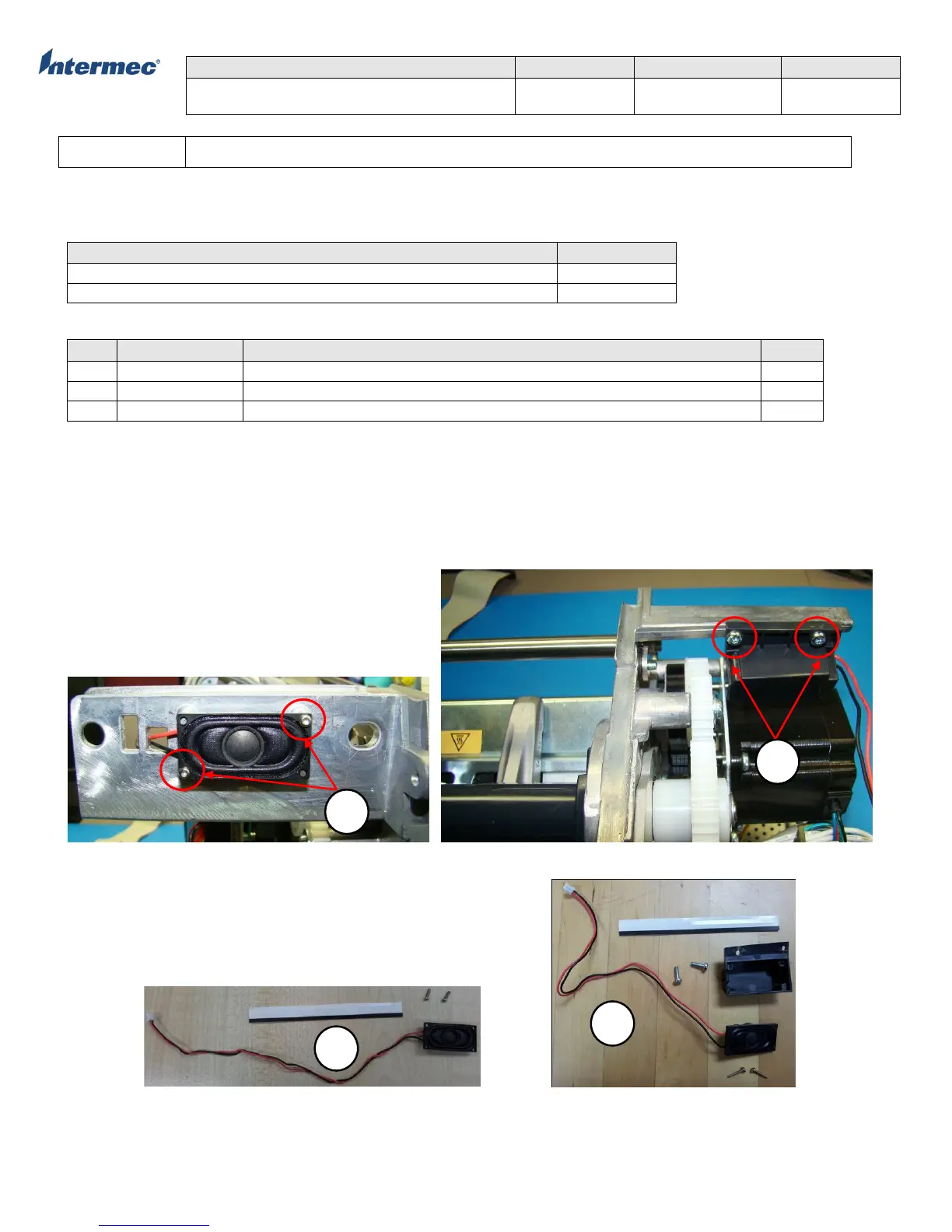

Figure 1 – PM43 Figure 2 – PM43c
Speaker Assembly, Spare, PM43 Speaker Assembly, Spare, PM43c
2
1
3
3

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
