Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
7 of 70
Intermec Proprietary Document
Section 1
Exploded View - PM43 Media Section
OPERATION:
Covers - Media Compartment
Both PM43 and PM43 offer several different media door options for different printing applications.
Tools Required
Description
Part Number
Nut Driver
7mm
Torx Driver
T20
Parts Required
Item
Part Number
Description
Qty
1
710-125S-001
Assembly Door, Media, PM43, Spare (complete assembly include front and back cover,
hinges, handle, and screws)
1
2
710-189S-001
Assembly Door, Media, PM43c, Spare (complete assembly include front and back cover,
hinges, handle, and screws)
1
3
710-191S-001
Assembly Door, Media, Short, PM43c, Spare (complete assembly include hinges and
screws)
1
4
710-192S-001
Assembly Door, Media, Dome, PM43c, Spare (complete assembly include hinges,
handle, screws, and clear dome cover)
1
5
643-165S-001
Media Window, Spare, PM43
1
6
643-166-001
Media Door Handle, PM43
1
7
203-970-001
Media Door Locking Bracket (accessory item that is available on standard price guide
with installation instructions)
1

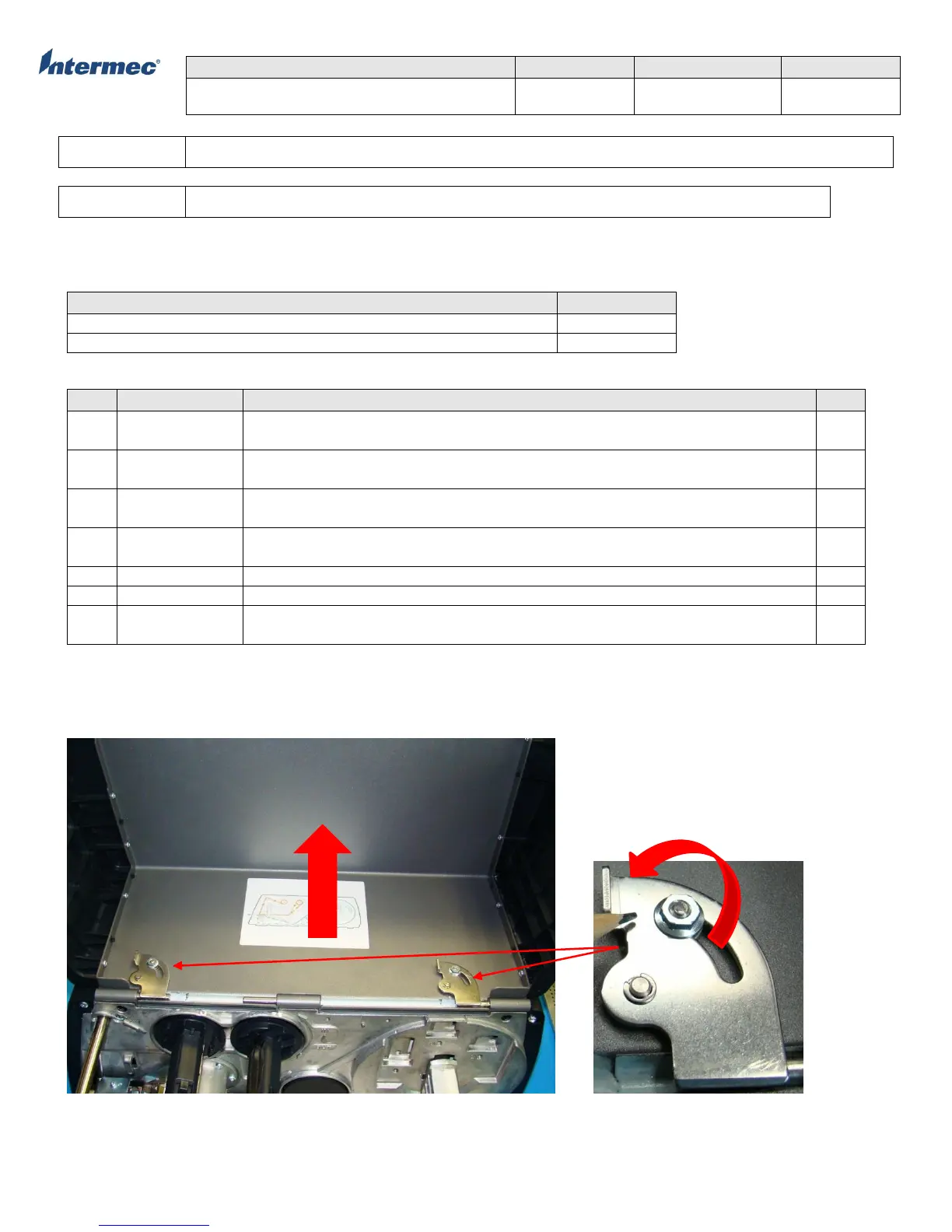

Replacing Media Cover
1. Loosen the two screws shown below and pivot the quick release cover hinge 45 degrees so that the cover can be lifted away.
See Figure 1.
Figure 1

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
