TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
54 of 70
Intermec Proprietary Document
OPERATION:
D-Sub Wiring Cable
This 15Pins D-Sub wiring assembly is reserved adding on full batch take-up option.
Tools Required
Description
Part Number
Torx Driver
T20
Parts Required
Item
Part Number
Description
Qty
1
1-206165-01
D-Sub, 15Pin Wiring Assy PM43 (does not include the screws as shown)
1
2
1-994059-008
Screw, MRT 4x8 ZP, T20, (14 lbf.in/16 kgf.cm)
1
1. Remove the 2 torx screws that secure the d-sub wiring assembly and pull the assembly through the spine (main deck). See
Figure 1 on screw location.

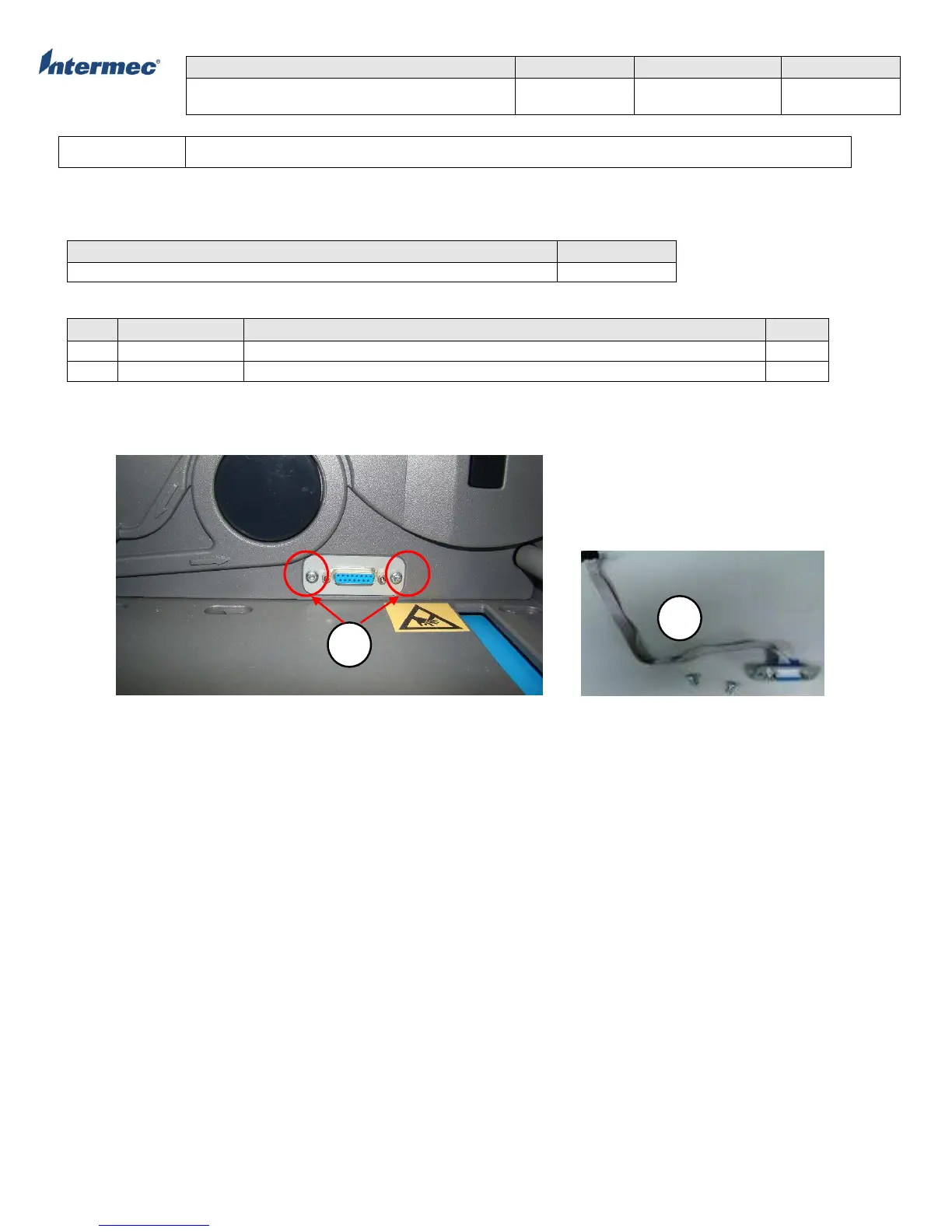

Figure 1 D-Sub Wiring Assembly
2
1
