Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
25 of 70
Intermec Proprietary Document
OPERATION:
Media Guide, Bottom Assy
The bottom media assembly include the media guide sensor for printing on different media (label) width. This assembly is used
on both the PM43 and PM43c.
The assembly is secured by the bottom base print mechanism and it secure by the guide posts (2 each side of the bottom
guide) against the spine (main deck) and the inside of the bottom base print mechanism.
Tools Required
Description
Part Number
None required
Parts Required
Item
Part Number
Description
Qty
1
710-120S-001
Guide, Media, Bottom Dancer, Assy Spare PM43 (complete assembly include media guide
sensor, belt, adjust lever, etc.)
1
2
808-002-000
Cable, Tie, White, Locking, 4inch
1

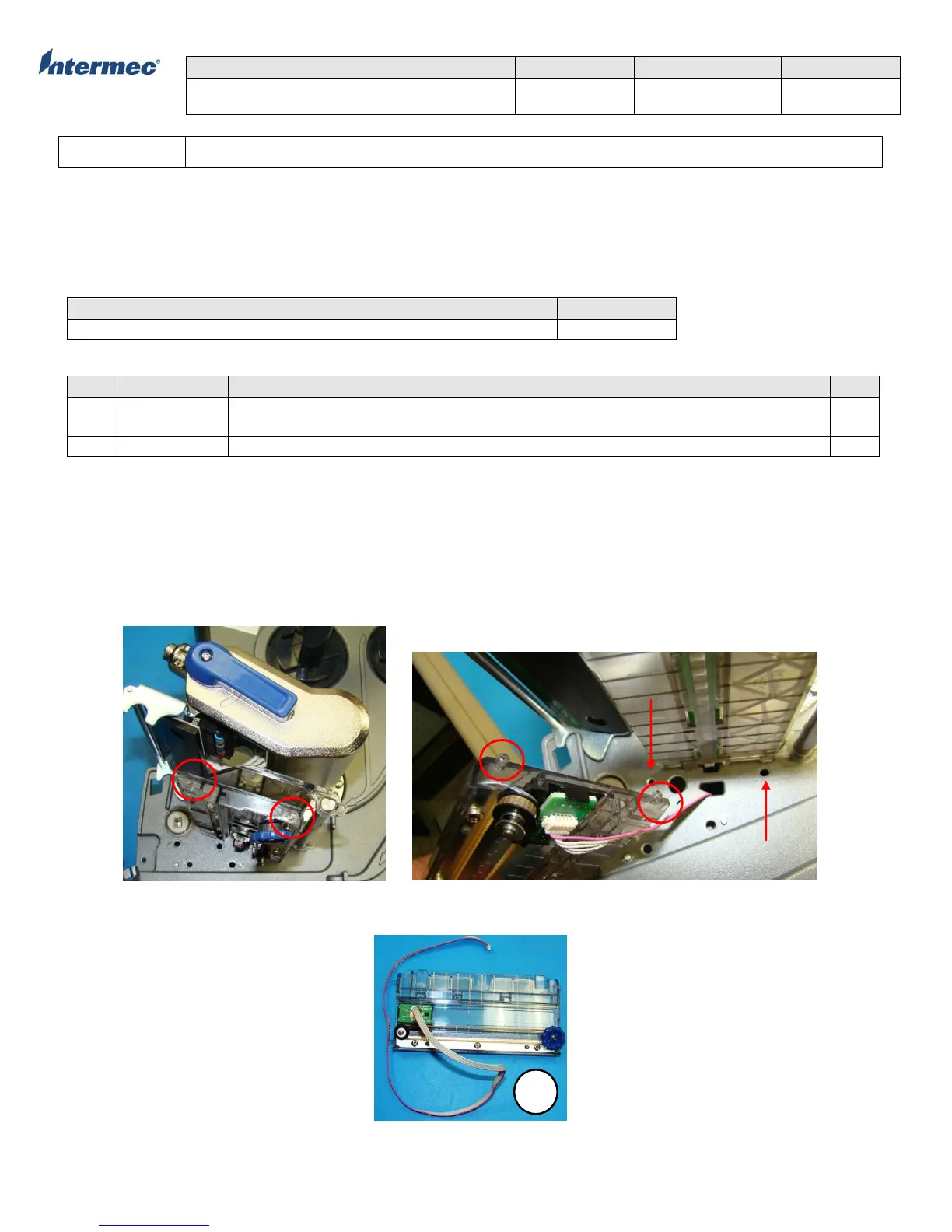

Bottom Dancer Media Guide Assembly Replacement
1. Remove bottom base print mechanism assembly. See Page 14&15 on how to remove the bottom base print mechanism
assembly.
2. Disconnect the media guide sensor cable P34 from main logic board (MLB) and cut the tie cable securing the cable.
3. Detach the bottom media guide assembly from the spine (main deck). It is IMPORTANT to make note of the guide posts.
See Figure 1 & Figure 2.
4. Reverse the procedure for installing replacement bottom media guide assembly.
Figure 1 Figure2
Guide, Media, Bottom Dancer Assembly Spare
1

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
