PM43 Service Work Instructions
Intermec Proprietary Document

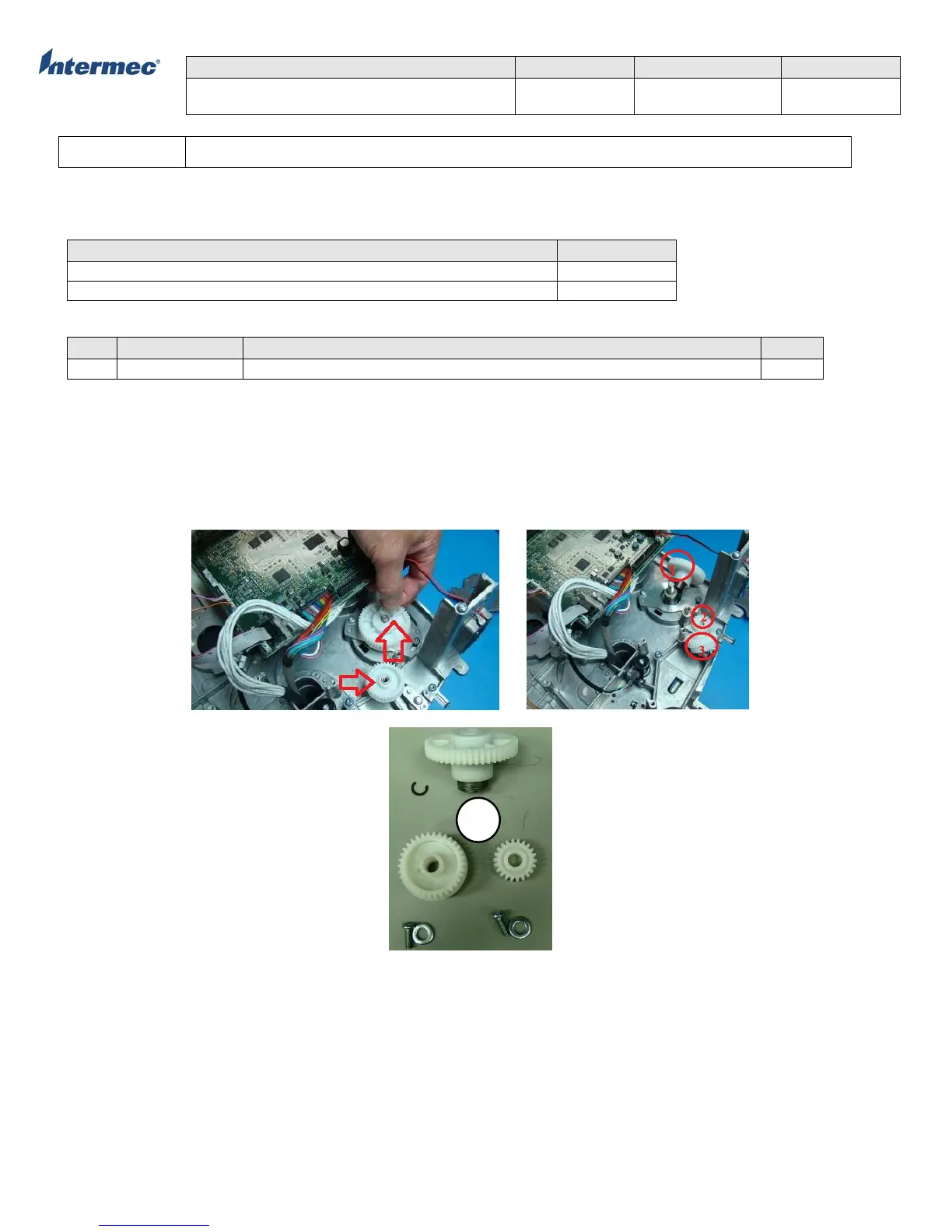

Ribbon Take Up Gear Mechanism
The ribbon take-up gears are available as a set.
Tools Required
Parts Required
Gear, Ribbon Reduction, Spare Kit, PM43
Ribbon Reduction Gear kit Replacement Instructions
1. Complete the drive belt replacement instructions in this procedure
2. Using common a T20 Torx Bit driver and E-clip removal tool release and replace the gears as shown in the following
Figures 1 and 2.
3. For installation reverse these steps
Figure 1 Figure 2
Gear, Ribbon Reduction, Spare Kit
