Intermec PM43 - Front Media Door Replacement

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
26 of 70
Intermec Proprietary Document
OPERATION:
Front Media Door Replacement
The access door is for PM43 and PM43c. The door is a customer replaceable part.
Tools Required
Description
Part Number
Torx Driver
T20
Parts Required
Item
Part Number
Description
Qty
1
815-076S-001
Door, Access, PM43
1
2
TBD
Door, Access, PM43c
1
3
1-994059-012
Screw, MRT 4x12 ZP (14 lbf.in/16 kgf.cm)
1
Access Door Replacement PM43

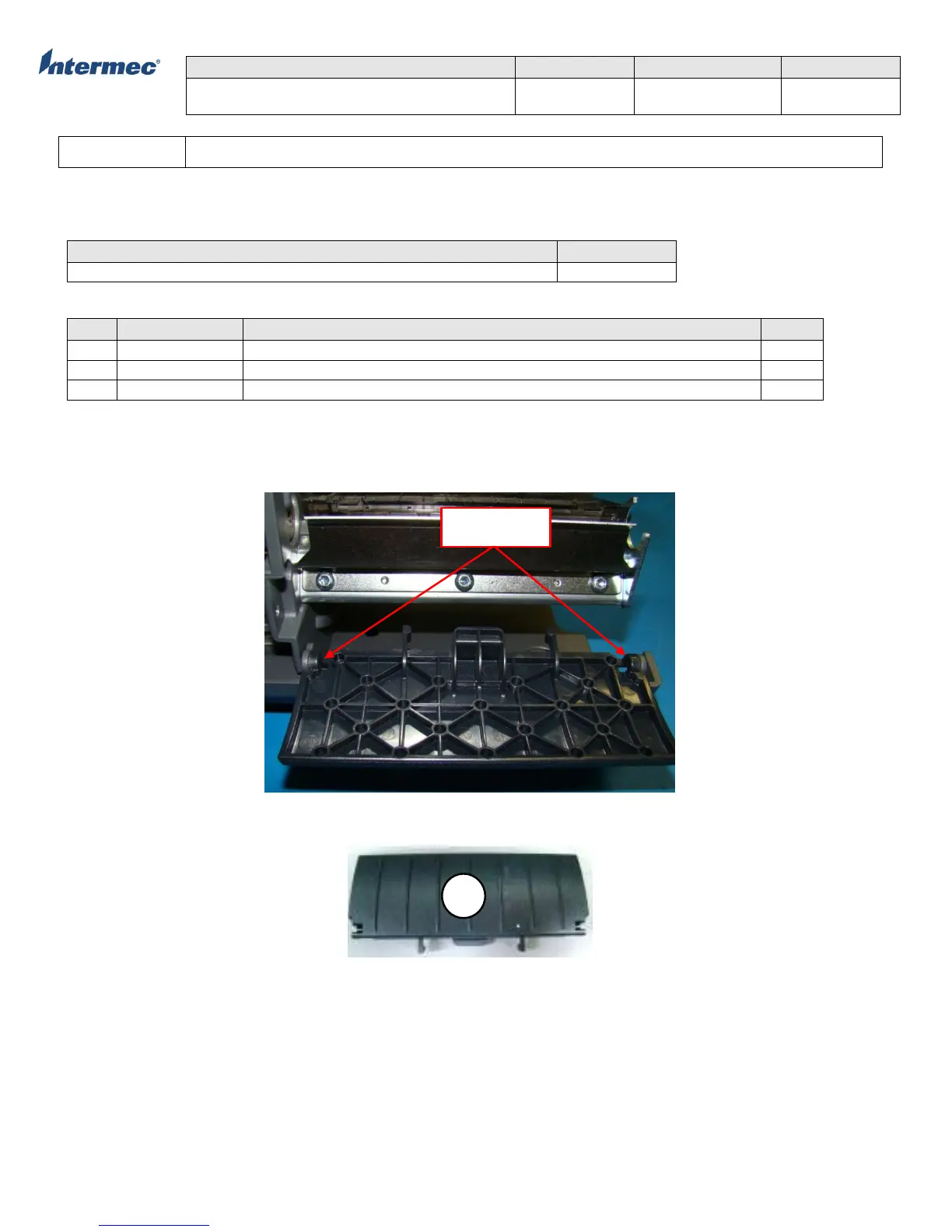

1. Open the access door and carefully lift the one corner of the access door with a plastic tool. See Figure 1.
2. Replacement access door should snap onto the guide
Figure 1
Door, Access, PM43
Area
1
