Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
60 of 70
Intermec Proprietary Document
OPERATION:
Internal Rewinder Mechanism
The internal rewinder is a factory configurable option. Printers built without the internal rewinder option can be retrofitted to
include the internal rewinder by Intermec Service Depots or third party service depots that are authorized by Intermec.
Tools Required
Description
Part Number
Torx Driver
T10
Torx Driver
T20
Allen Driver, 1.5mm-2.0mm
Parts Required
Item
Part Number
Description
Qty
1
710-090S-001
Internal Media Rewinder, Sub-Assy, Spare Kit, PM43 (include stepper motor,
rewinder assembly, belt, stepper rewinder PCBA)
1
2
715-616S-001
Label Taken Sensor (LTS), Spare Kit, PM43
1
3
710-168-001
Motor,Stepper Rewind PM43 (does not include mount plate as shown)
1
4
234-053S-0300
PCB Assy, Rewind Motor Driver
1
5
825-218-001
Belt,Rewinder PM43
1
6
710-089S-001
Media Rewinder, Sub-Assembly, PMB43
1
7
657-030-001
Shaft, Media Divert, Spare, PM43
1
8
653-679-001
Plate, Batch, PM43
1
9
1-994059-008
Screw, MRT 4x8 ZP, T20 (14 lbf.in/16 kgf.cm) – Mounting Torx screws
8
10
1-994058-004
Screw, MRT 3X4 ZP, T10 (5 lbf.in/6 kgf.cm) – Included with LTS spare kit
2
Label Taken Sensor (LTS) Replacement
1. Remove the media and electronic cover.
2. Remove the front panel. See page 11 on how to remove the front panel.
3. Disconnect sensor cable from P29 connector on the main logic board.
4. Remove Torx screwing the sensor mounting plate and remove the sensor assembly. See Figure 1.
5. Reverse the procedure to install replacement sensor assembly

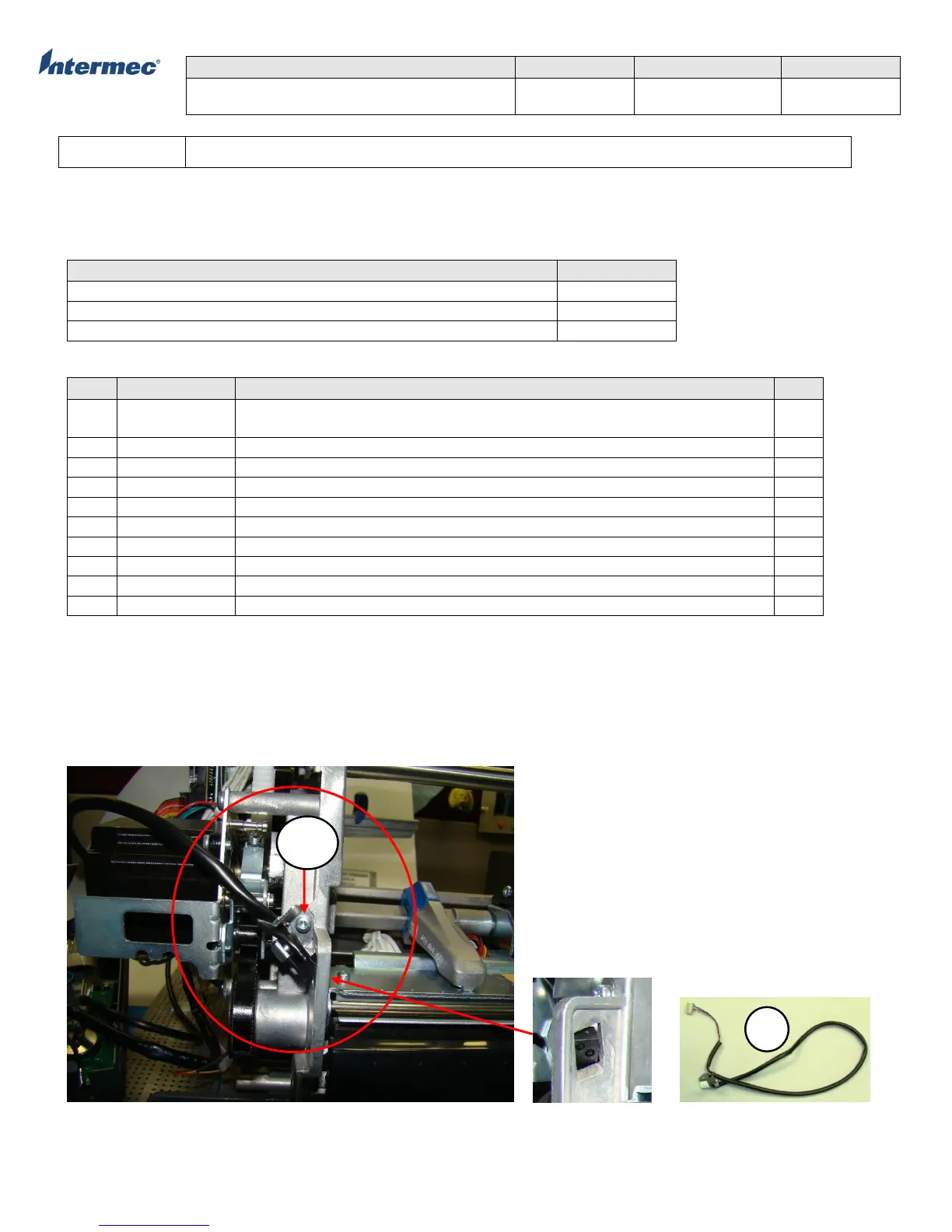

Figure 1 Label Taken Sensor (LTS) Spare
2
6
10
6

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
