Media Rewinder Assembly Rewinder Belt Stepper Motor Assembly Rewinder Motor Driver PCBA
Stepper Motor Assembly Replacement
1. Remove the media and electronic cover.
2. Disconnect stepper motor cable from motor driver PCBA.
3. Remove the 4 Torx screws securing the stepper motor assembly and motor driver PCBA. See Figure 2.
(Note: Make of the belt tension)
4. Unhook the rewinder belt from the stepper motor assembly and note the position of belt.
5. Remove the 4 Torx screws securing the stepper motor to the mounting plate.
(Note: stepper motor mounting plate is not included in a spare motor. It does come with 710-090S-001 Spare Kit.)
6. Reverse the procedure to install replacement stepper motor assembly.
7. Pull the stepper motor assembly away while tighting the Torx screws to tighten rewinder belt tension. See Figure 3.

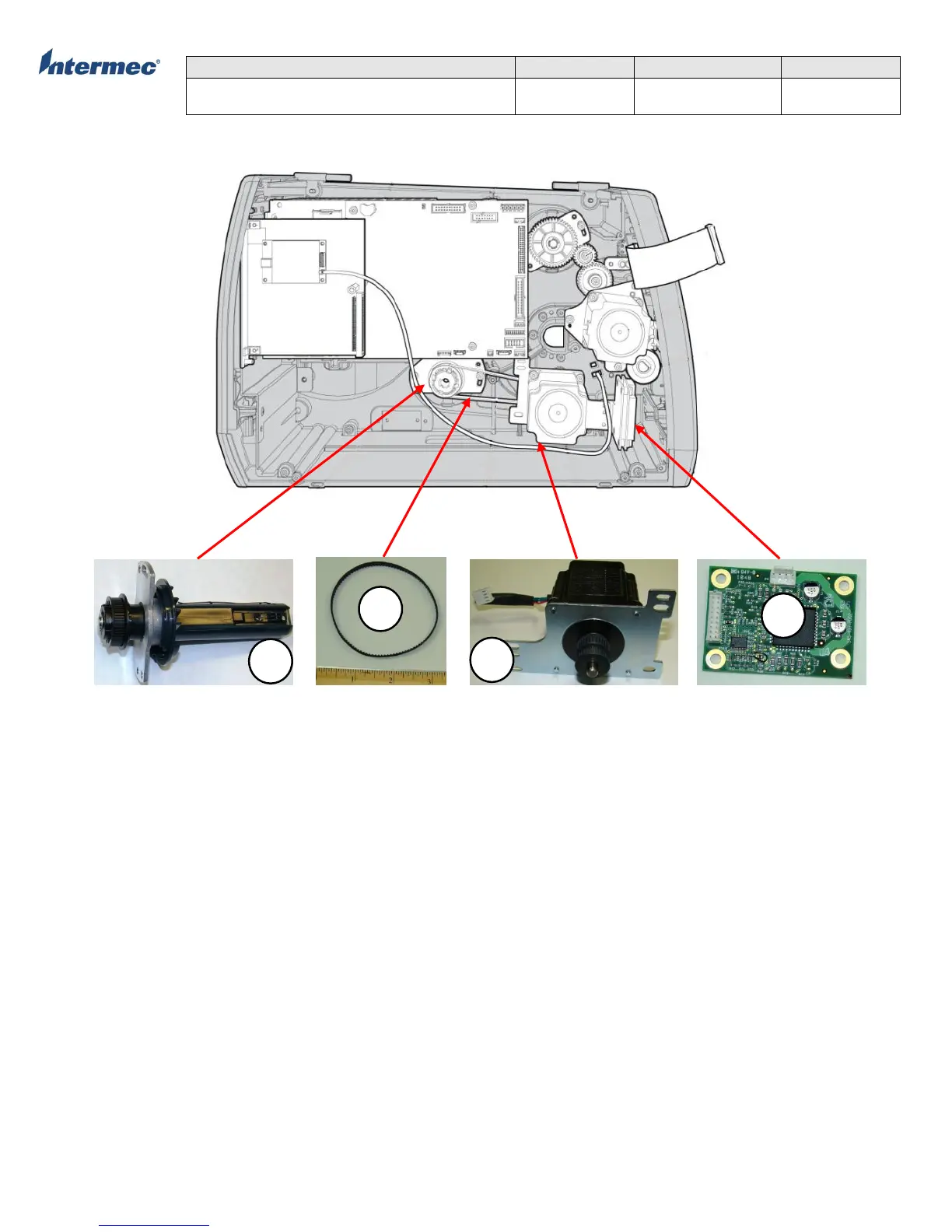

Internal Rewinder Mechanism
6
3
6
5
6
4
6

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
