TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
4 of 70
Intermec Proprietary Document

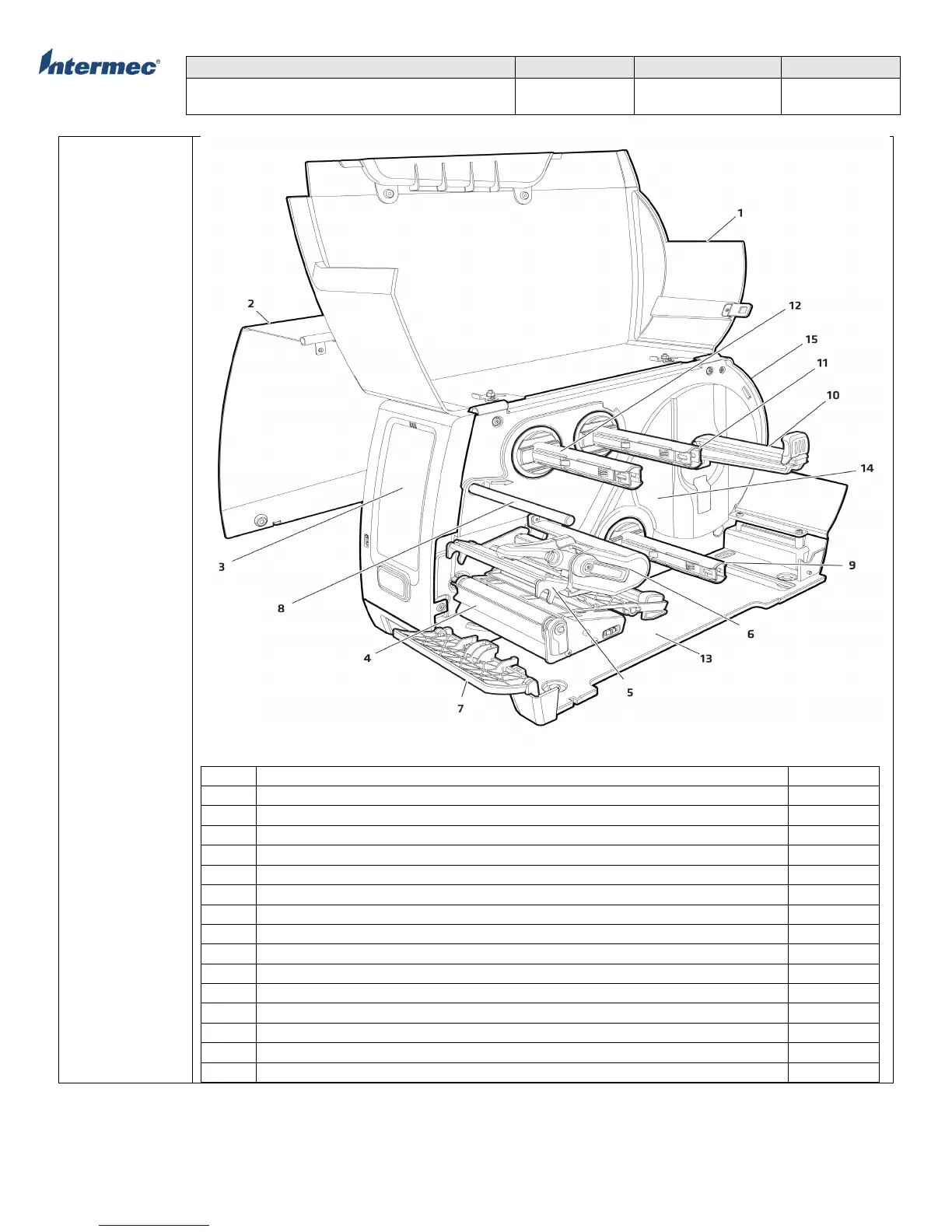

Section 1
Exploded
View
PM43
Media
Section
No.
Description
See Page
1
Assembly, Door, Media, PM43, SVC
2
Assembly, Cover, EE, PM43
3
Assembly, UI Full Touch / ICON Module, SVC
4
Platen Roller
5
Printhead
6
Print Unit
7
Front Media Door
8
Ribbon Wrinkle Adjustment Mechanism
9
Media Take Bobbin
10
Media Holder
11
Ribbon Supply Mechanism
12
Ribbon Take-up Mechanism
13
Printer Bottom and Feet (4)
14
Printer Spine or Main Deck
15
Printer Back Plate
