Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
41 of 70
Intermec Proprietary Document
OPERATION:
Touchless Configuration Unit Assembly with Battery
This section covers the replacement instructions for touchless configuration unit assembly with battery. The purpose of the
touchless configuration option is to allow customer to pre-configure the printer without taken the printer out of the box. The
touchless configuration unit contain a battery powered RFID chip that store the configuration information.
To configure the touchless configuration, an RFID reader is required. For example, an IF2 with standard RFID antenna or an
IP30 connecting to handheld computer.
When replacing the touchless configuration unit, the unit has to be re-programmed with an RFID reader to match the printer
configuration information.
Tools Required
Description
Part Number
Torx Driver
T8
Parts Required
Item
Part Number
Description
Qty
1
705-625S-001
Touchless, Config Unit, Assembly, Spare, PM43 (include screws and lithium
battery 317-235-001)
1
2
800-593-006
Screw, Plastite, M3x6, PH, Torx, T10 (3 lbf.in/3.5kgf.cm)
2
Touchless Assembly Replacement
1. Remove the front panel to access the touchless configuration unit for replacement. See page 11 on how to remove the
front panel.
2. Remove the torx screws securing the touchless configuration unit PCBA to the front panel. See Figure 1.
3. Disconnect the touchless configuration unit cable from connector P20 on the main logic board (MLB) and ground cable to
remove the touchless configuration unit assembly
4. Reverse the procedure for re-installation.

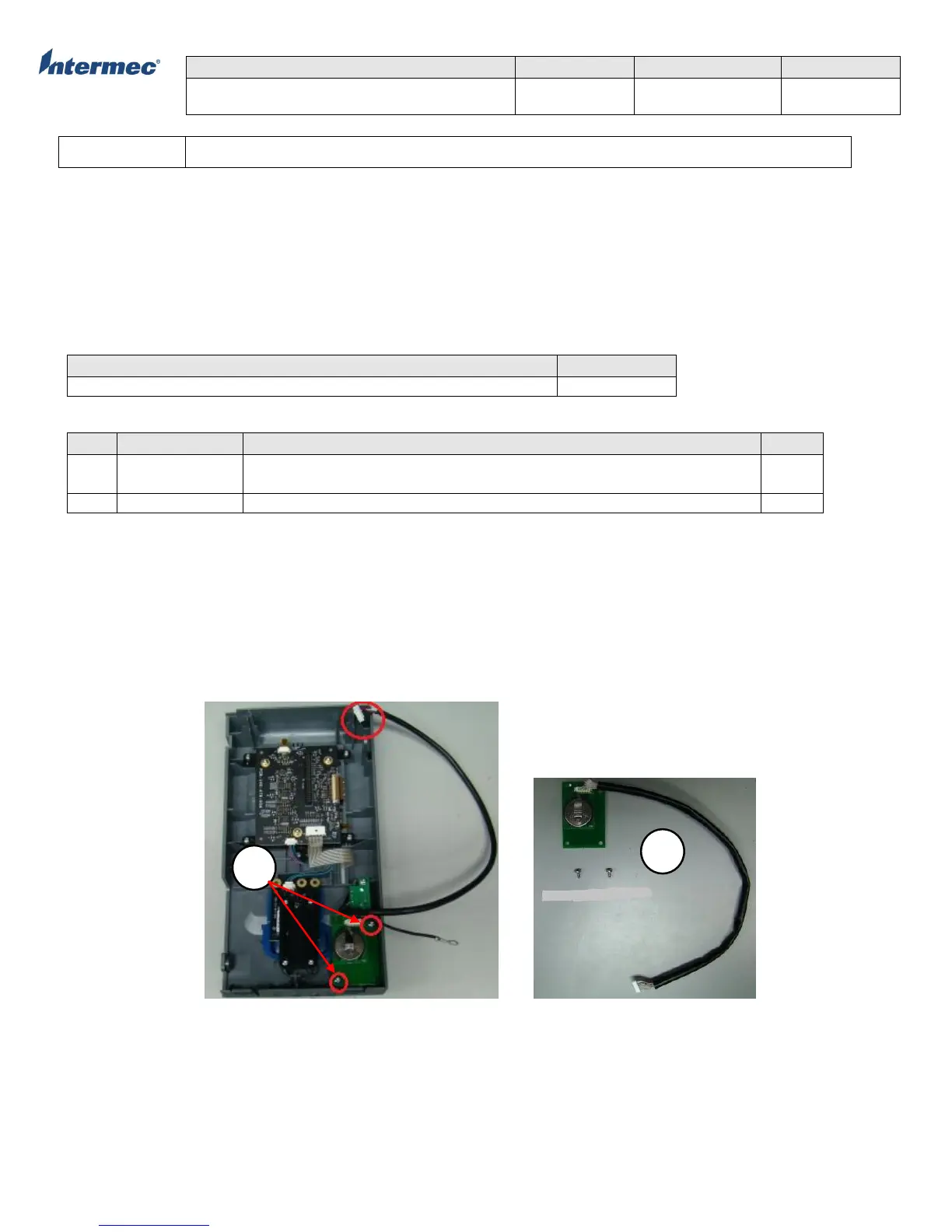

Figure 1 Touchless Config Unit Assembly
2
1

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
