TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
39 of 70
Intermec Proprietary Document
Section 2
Exploded View - Front Panels, Full Touch & ICON Components
OPERATION:
PM43 Service (Print) Button (Full Touch and ICON)
This section covers the replacement of the print button for both full-touch and ICON version of printers. To replace the button,
the full-touch/ICON front panel need to be removed first.
Tools Required
Description
Part Number
Torx Driver
T10
Parts Required
Item
Part Number
Description
Qty
1
201-023-001
Kit, Service Button, PM43
1
2
201-024-001
Kit, Service, Button, PM43c
1
3
234-078S-0200
PCB Assembly, Feed Button, PM43
1
4
800-593-006
Screw, Plastic, M3x6, PH, Torx, T10 (3 lbf.in/3.5kgf.cm)
2
5
800-593-012
Screw, Plastite, M3x12, PH, Torx,T10 (3 lbf.in/3.5kgf.cm)
2
Button Replacement
1. Remove the front panel to access the print button for replacement. See page 11 on how to remove the front panel.
2. Remove the torx screws securing the print button PCBA to the front panel and remove the button. See Figure 1.
3. Reverse the procedure for re-installation.
Coup

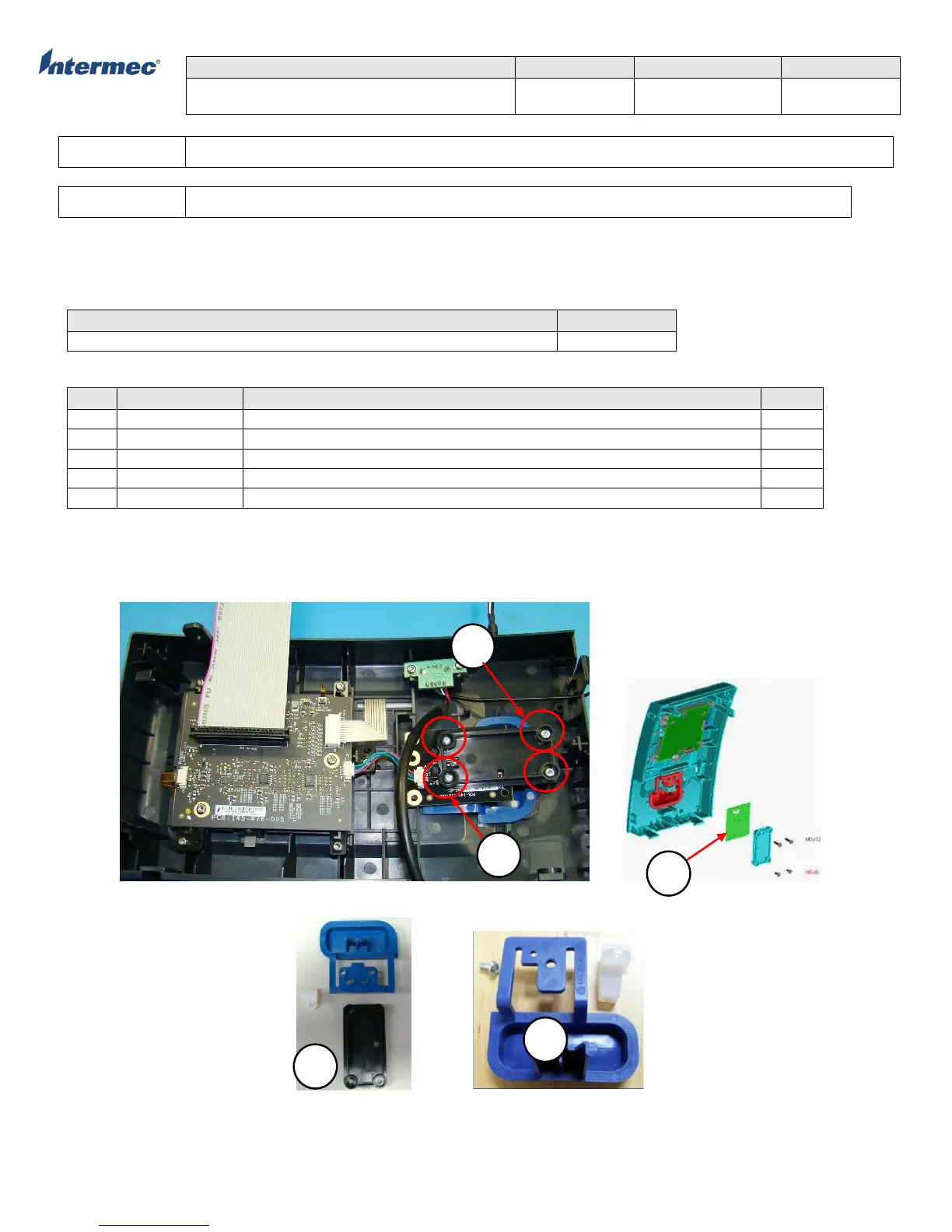

Figure 1
Print Button, PM43 Print Button, PM43c
5
1
4
2
3
