Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
66 of 70
Intermec Proprietary Document
OPERATION:
Rewinder Full Batch Take-Up Assembly
The media batch take up spool assembly is part of rewinder full batch take-up kit. The kit is available as an accessory that
include installation instructions. This section does not contain instructions on how to replace the rewinder full batch take-up
kit. The installation and replacement instructions will be covered on next revision of this service work instructions.
Tools Required
Description
Part Number
Torx Driver
T20
Parts Required
Item
Part Number
Description
Qty
1
203-974-001
Peel-Off, Kit
1
2
203-976-001
Rewinder Full Batch Take-Up Accessory Kit
1
3
203-972-001
Core, 3 Inch, Accessory Kit, PM43
1
4
234-053S-0300
PCB, Rewinder Motor Driver, Spare, PM43
1
5
236-259-001
Cable, Assembly, MLB, Full Rewinder
1
6
236-284-001
Cable, Assembly, MLB, Rewinder
1
7
710-089S-001
Media Rewinder, Sub-Assembly, Spare, PM43
1
Rewinder Full Batch Take-up and Peel-Off Kit Replacement
1. All accessories are available in the price guide including installation instructions. See Price Guide under Accessories for both
PM43 and PM43c printer models. Go to http://www.intermec.com/partner-products/prtrpm43a/selling-points.aspx under
Manuals to download the installation instructions for all accessories.

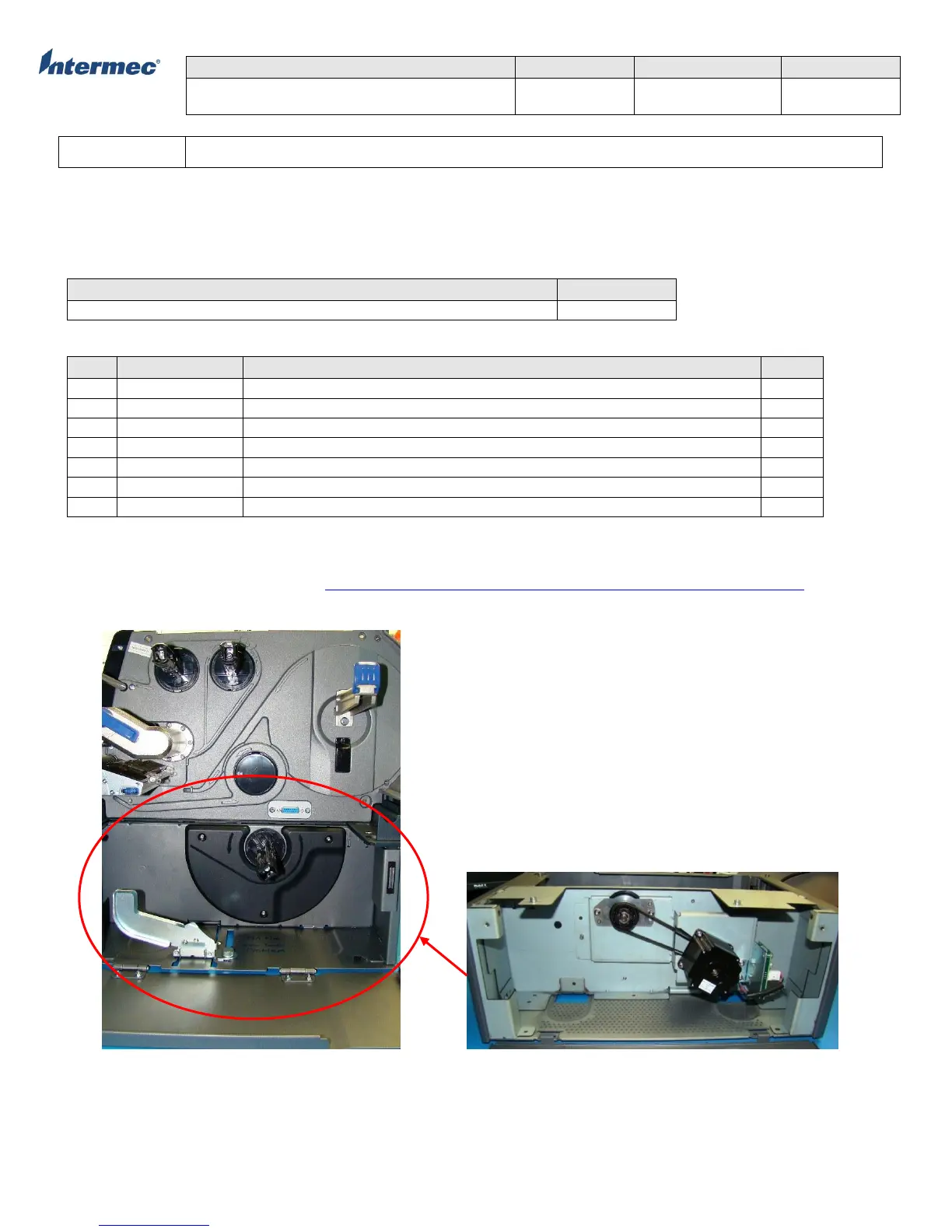

Full Batch Take-Up Assembly, Media Side Full Batch Take-Up Assembly, Electronic Side

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
