Intermec PM43 Service Manual

TITLE
Model
DOCUMENT NO.
PAGE
PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
6 of 70
Intermec Proprietary Document

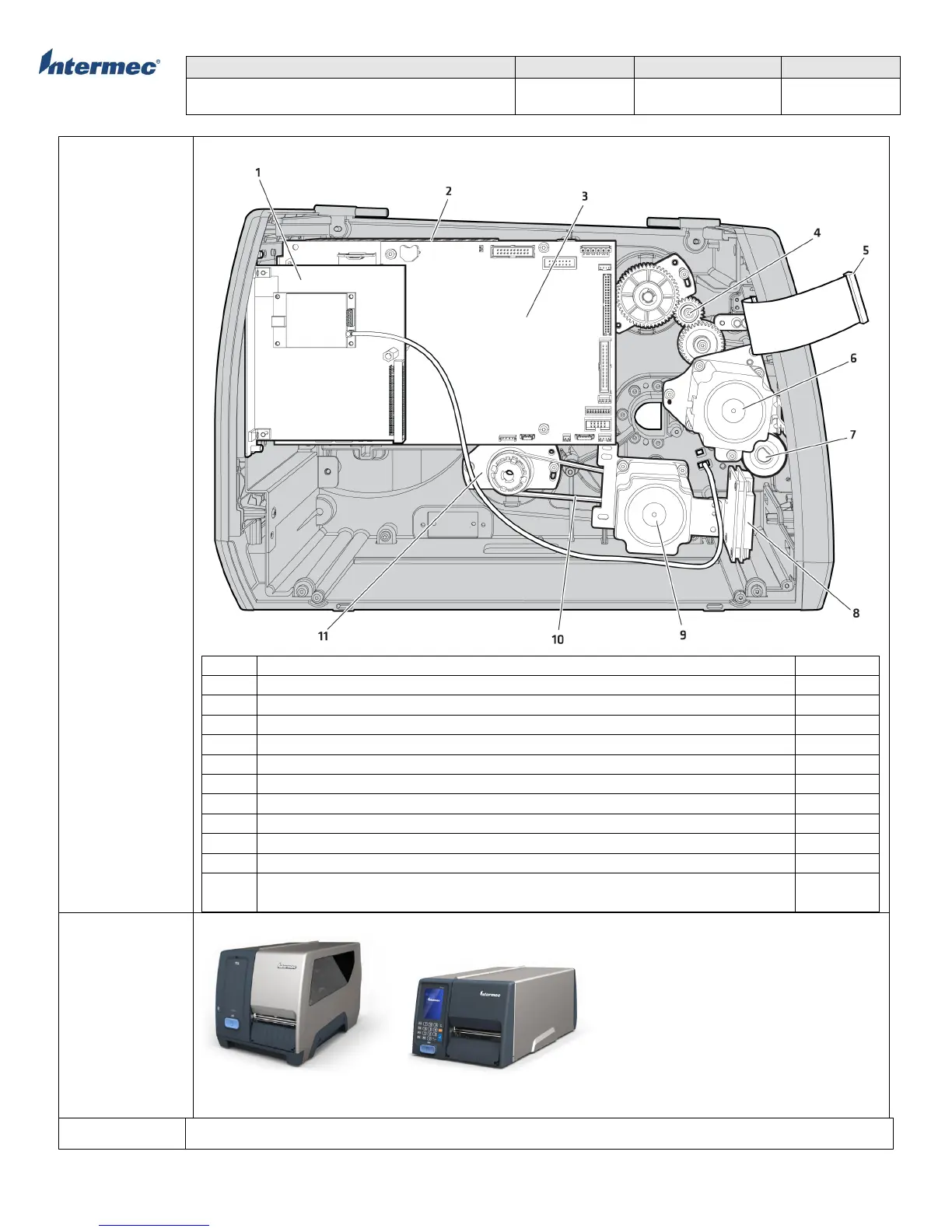

Section 3
Exploded
View
PM43
Electronics
Section
No.
Description
See Page
1
Accessory Radio Electronics Assembly
2
Power Supply Electronics Assembly (Behind Main Logic Board)
3
Main Logic Board (MLB) Assembly
4
Ribbon Take Up Reduction Gears
5
Front Panel I/O Cable (shown disconnected from MLB)
6
Drive Motor for Ribbon, Platen, + Gears and Belts
7
Kit, Service, Drive Pulley
8
Rewind Mechanism Electronics
9
Motor for Rewind Full Batch Mechanism
10
Rewind Drive Belt Mechanism
11
Full Batch Rewind Kit, Accessory (items #8, #9, #10 are part of this full batch
rewinder kit)
TABLE 1:
Available
Models
PM43 - Standard Height Printer: Height 11.60” / Width 11.19” / Depth 19.04” / Weight About 34.8 lbs.
PM43C - Compact Height Printer: Height 7.13” Std & 9.94 Mega top” / Width 9.94” / Depth 17.0” & 19.7”
Mega Top - Weight about 28 lbs.
PM43
PM43c

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
