PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
51 of 70
Intermec Proprietary Document
5. Reverse the procedure when re-installing MLB.

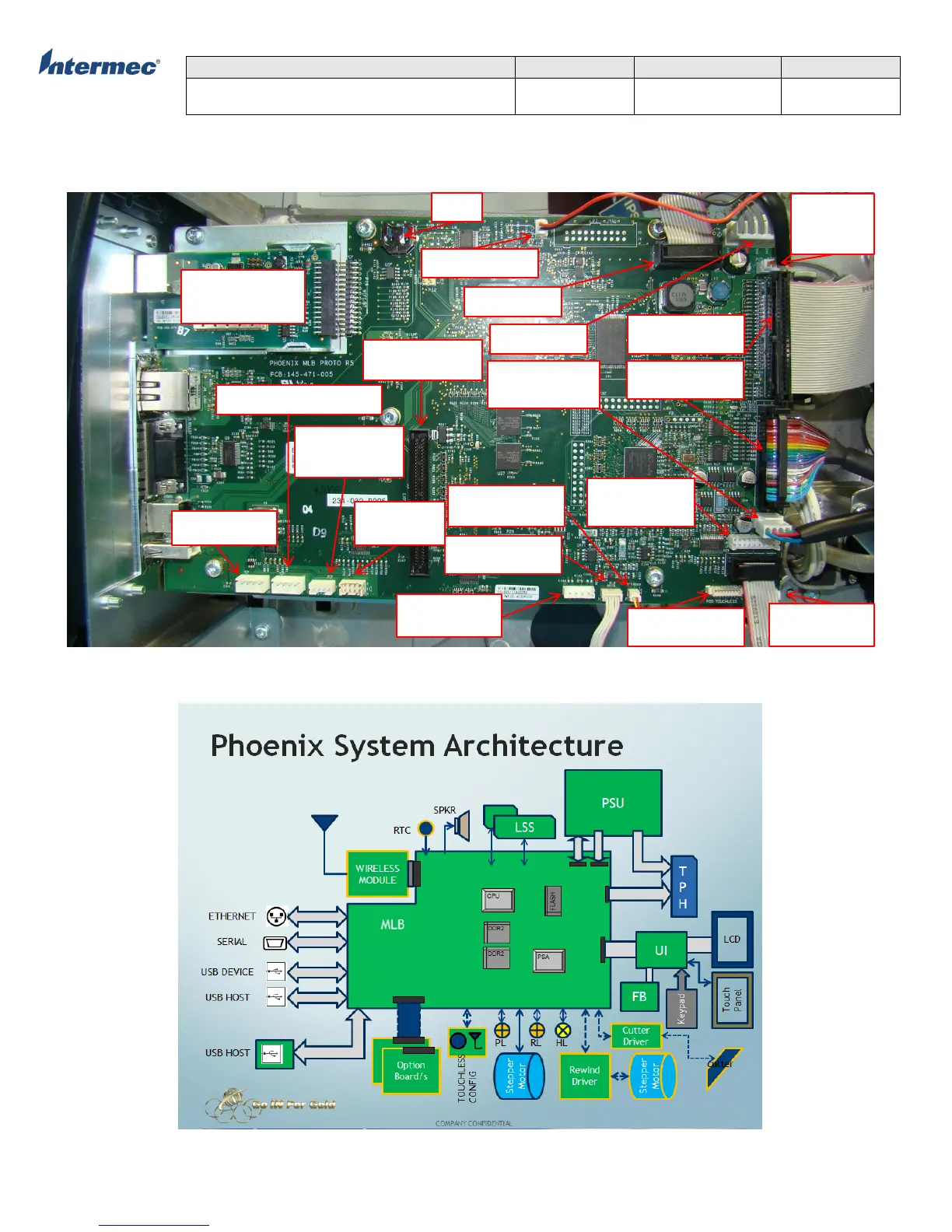

Figure 3 – Main Logic Board Connections
Figure 4 – Reference Printer System Architecture
Front Panel USB Cable
Paper Low
Sensor Cable
RTC
Speaker Cable
PSU Cable
Gap Sensor
Cable
Label Taken
Sensor Cable
Black Mark
Sensor Cable
Wi-Fi/Bluetooth
Option
Option Interface
Connector
PSU Cable
Dual USB
Option
Touchless
Option Cable
Head Lift
Sensor Cable
Front Panel
Cable
Printhead Cable
Stepper Motor
Cable
Rewinder
Option Cable
Not used
Ribbon
Sensor
Cable
