Technical data
Rated voltage 24 V DC, protected extra-low voltage PELV (IEC 60204-1)
Voltage range 22.8 to 25.2 V DC
Current consumption Logic supply voltage:
MultiControl: max. 0.2 A + connected sensors/actuators =
max. 1.6 A
Motor supply voltage:
RollerDrive rated current: 4 x 2 A = 8 A
RollerDrive startup current: 4 x 4 A = 16 A
Protection rate IP54
Weight 500 g (incl. base plate)
Ambient temperature in
operation
-30 °C to +40 °C (-22 °F to +104 °F)
Ambient temperature
during transport and
storage
-40 °C to +80 °C (-40 °F to +176 °F)
Max. temperature change 1 K/min, 3 h, 2 cycles (IEC 60068-2-14)
Relative humidity max. 93 % at +40 °C (+104 °F), 14 days, non-condensing
(IEC 60068-2-78)
Max. installation height
above sea level
max. 1000 m (max. 3300 ft)
The installation in systems at an altitude above 1,000m (3,300 ft)
is possible in principle. However, it may result in a reduction of the
performance values.

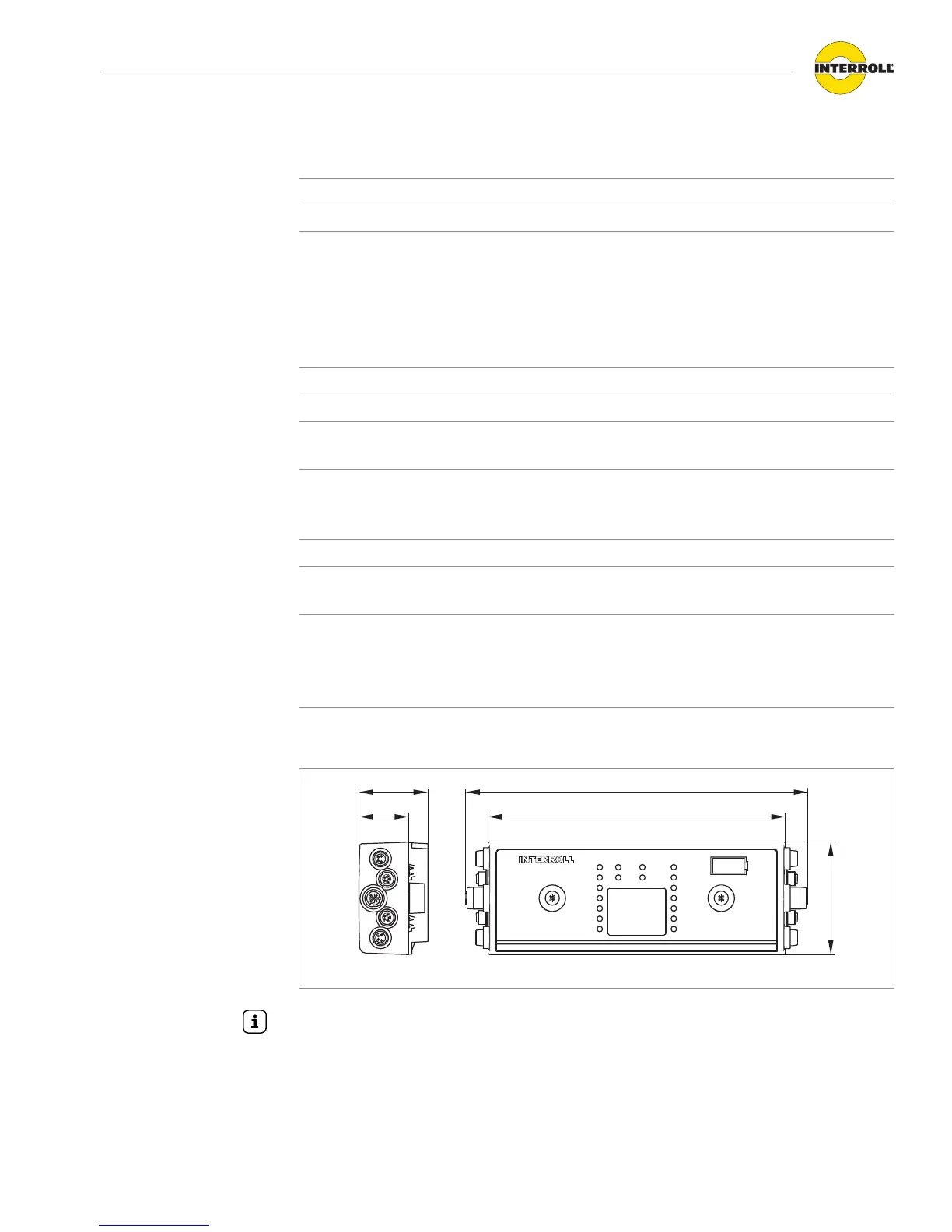

Dimensions
Sensor 1
I/0 1
RD 1
Sensor 2
I/0 2
RD 1
Link A
Sensor 1
®
I/0 1
RD 1
Link A
RD 2
Sensor 2
I/0 2
Sensor 3
I/0 3
RD 3
Link B
RD 4
Sensor 4
I/0 4
Sensor 3
I/0 3
RD 3
I/0 4
Power
Link B
RD 4
Sensor 4
Ready
Com
Fault
MultiControl
for RollerDrive
12
3 4
21243
31
185
70
MultiControl
The distance from the top edge of the MultiControl to neighboring components must be at least
10mm to be able to operate the magnetic sensor.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
