Interroll MultiControl User Manual

Interroll MultiControl
Assembly and installation
22 Version 2.3 (01/2017) en-US
Translation of original instruction manual

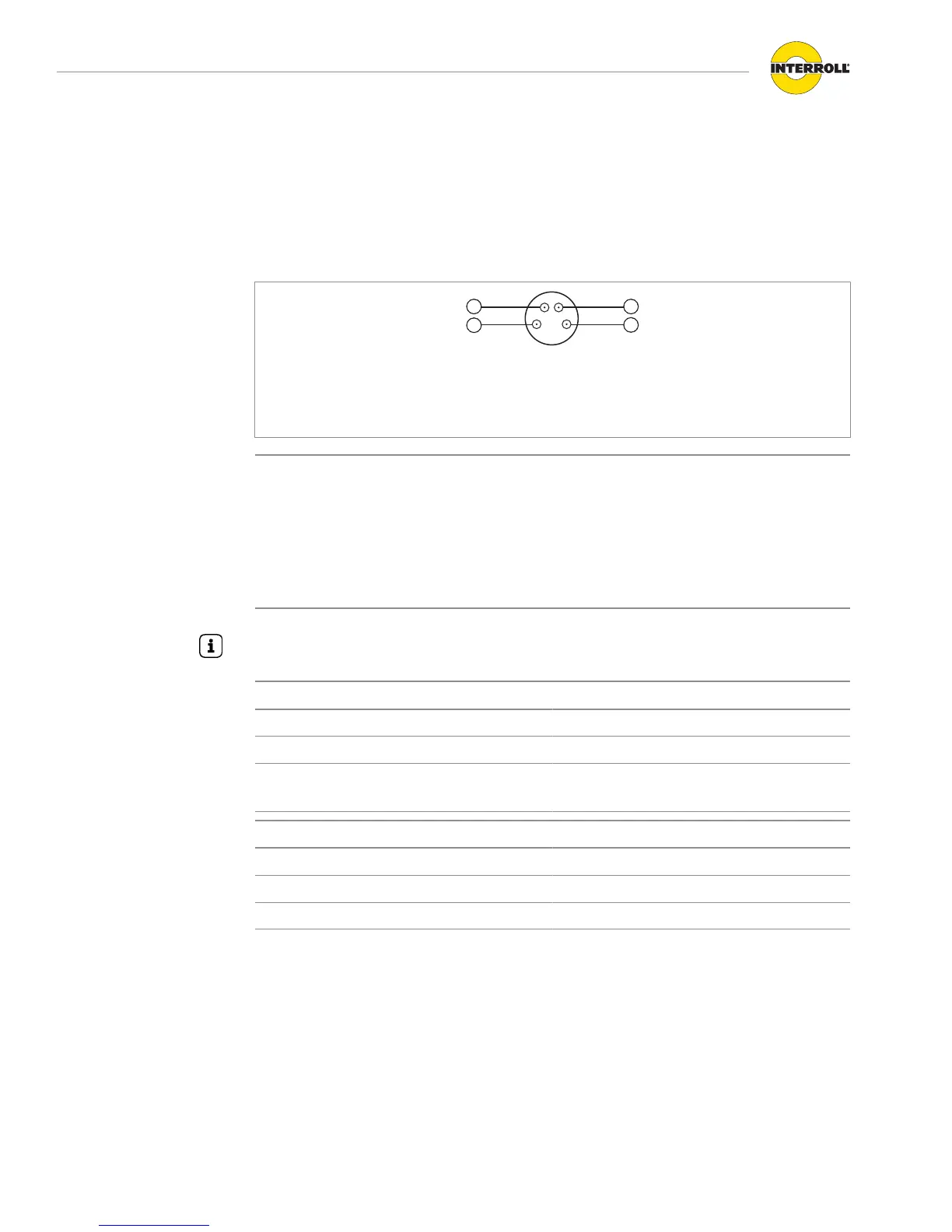

Connecting the sensors
The connectors 'Sensor 1, I/O 1' to 'Sensor 4, I/O 4' can be used to connect four sensors and
four additional inputs and outputs (Aux I/O) to the MultiControl. PNP or NPN sensors as well as
sensors with opening or closing contacts can be used. The sensor type and the function of the
additional I/Os can be parameterized (see "Configuring inputs and outputs", page29). The use
of a Y-line allows connecting one sensor and one input/output to one connection at the same
time (see "Accessories", page43).
2
1
3
4
Sensor connection
1 +24 VDC 3 Ground
2 Aux I/O 4 Sensor input
NOTICE
Connections are not short circuit-proof
In case of a short circuit, particularly between Pin 1 and Pin 3, the internal fuse in the
MultiControl trips. The internal fuse cannot be replaced.
4 Ensure the correct polarity.
The inputs and outputs are not electrically isolated.
Parameters for the inputs
Input voltage 0 V to 24 V
Input resistance ≥ 15 kΩ
Switching thresholds ≥ 15 V "High"
≤ 5 V "Low"
Parameters for the outputs
Maximum output current ≤ 200 mA
Output voltage "1" with PNP > 15 V @ 200 mA
Output voltage "1" with NPN ≤ 5 V @ 200 mA
4 If a sensor connection remains unused, seal it with an M8 blind cap to achieve degree of
protection IP54.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
