Interroll MultiControl User Manual

Interroll MultiControl
Assembly and installation
Version 2.3 (01/2017) en-US
Translation of original instruction manual
21
Connecting the bus

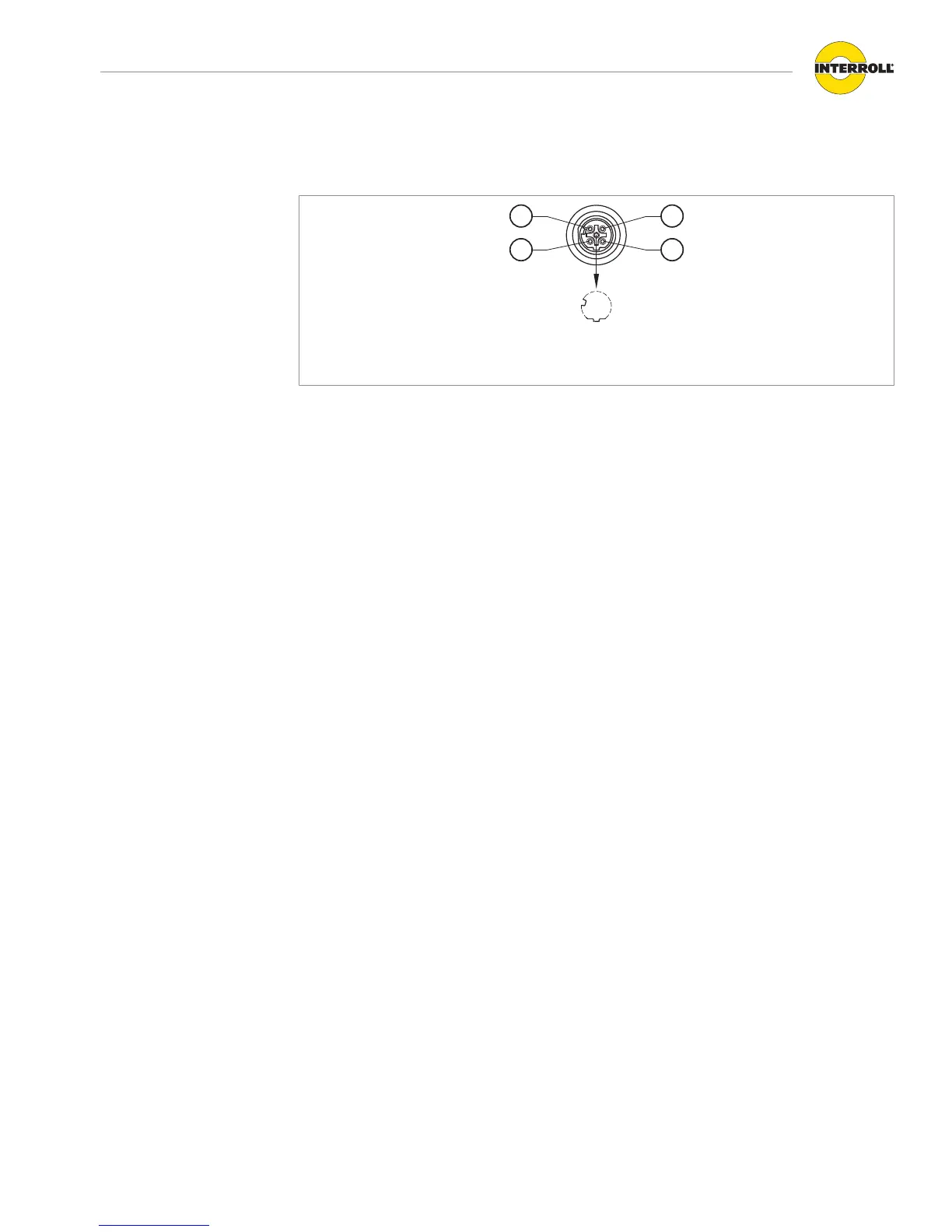

The two connections 'Link A' and 'Link B' are suitable for M12 plugs, 4-pin, D-coded, pin
assignment according to IEC61076-2-101:
12
3 4
1
43
2
1 Transmission Data TD+ 3 Transmission Data TD-
2 Receive Data RD+ 4 Receive Data RD-
The MultiControl is equipped with an integrated 2-port switch. This allows the MultiControl, e.g.
to be integrated in line structures of the bus wiring.
4 Observe the installation guidelines of the respective bus systems:
• PROFINET: PROFIBUS & PROFINET International (PI), http://www.profibus.com
• EtherCAT: EtherCAT Technology Group, http://www.ethercat.org
• EtherNet/IP: ODVA, http://www.odva.org
4 If a connection remains unused, seal it with an M12 blind cap to achieve protection rating
IP54.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
