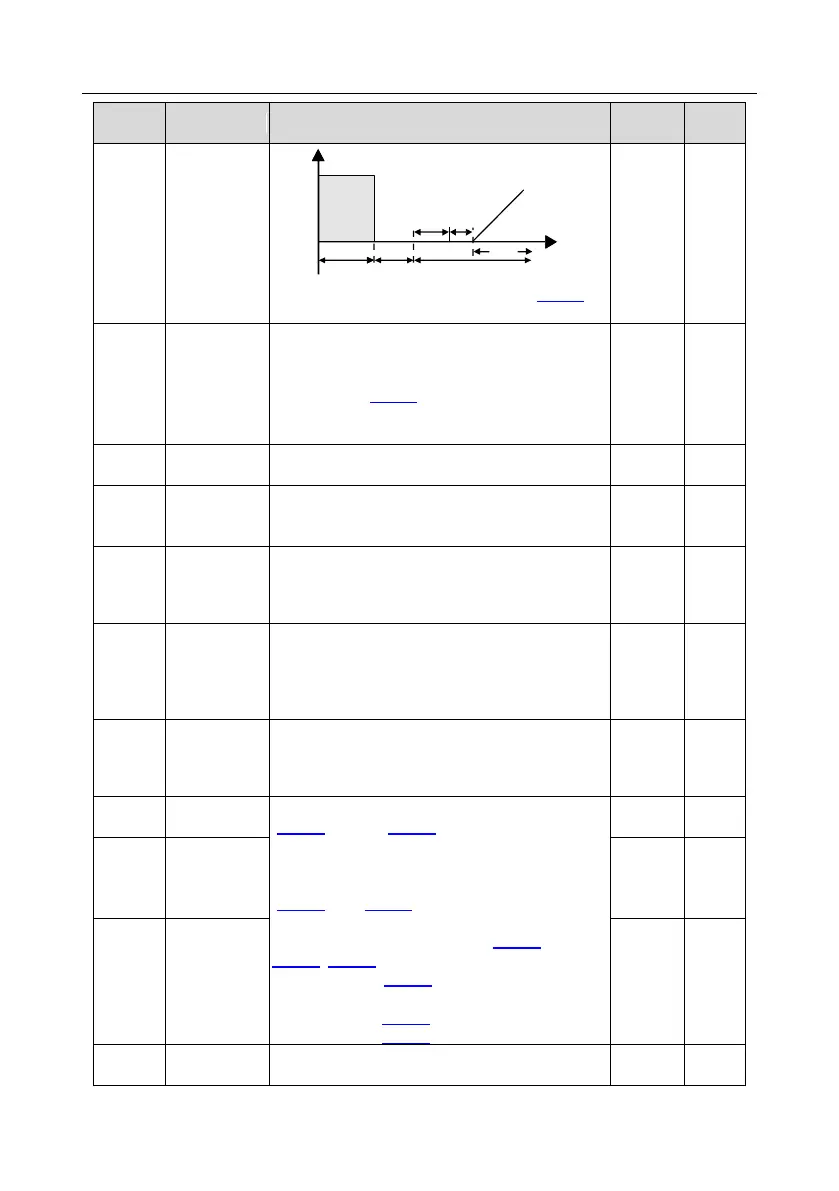

Goodrive350 IP55 High-ingress Protection Series VFD Function parameter list
-131-
Function
code
Name
Description
Default
value
Modify
Output frequency
Running
Power off
Power on
Running
t
t1 t2
t1=P01.22
t2=P01.23
Setting range: 0.0–3600.0s (valid when P01.21 is
1)
P01.23
Start delay
This function code sets the delay of the VFD’s
wake-up-from-sleep after running command is
given, the VFD will start to run and output after the
time set by P01.23 elapses to realize brake
release.
Setting range: 0.0–600.0s
0.0s
○
P01.24
Stop speed
delay
0.0–600.0s
0.0s
○
P01.25
Open-loop
0Hz output
selection
0: No voltage output
1: With voltage output
2: Output as per DC brake current of stop
0
○
P01.26
Deceleration
time of
emergency-st
op
0.0–60.0s
2.0s
○
P01.27
Time of
starting
section of
deceleration S
curve
0.0–50.0s
0.1s
◎
P01.28
Time of ending
section of
deceleration S
curve
0.0–50.0s
0.1s
◎
P01.29
Short-circuit
brake current
When the VFD starts in direct start mode
(P01.00=0), set P01.30 to a non-zero value to
enter short-circuit brake.
During stop, if the running frequency of VFD is
below the starting frequency of brake after stop
(P01.09), set P01.31 to a non-zero value to enter
short-circuit brake after stop, and then carry out
DC brake in the time set by P01.12 (refer to
P01.09–P01.12).
Setting range of P01.29: 0.0–150.0% (of the rated
VFD output current)
Setting range of P01.30: 0.0–50.0s
Setting range of P01.31: 0.0–50.0s
0.0%
○
P01.30
Hold time of
short-circuit
brake at
startup
0.00s
○
P01.31
Hold time of
short-circuit
brake at stop
0.00s
○
P01.32
Pre-exciting
time of jogging
0–10.000s
0.000s
○
