INVT Goodrive350 IP55

Goodrive350 IP55 High-ingress Protection Series VFD Function parameter list
-175-
Function
code
Name
Description
Default
value
Modify

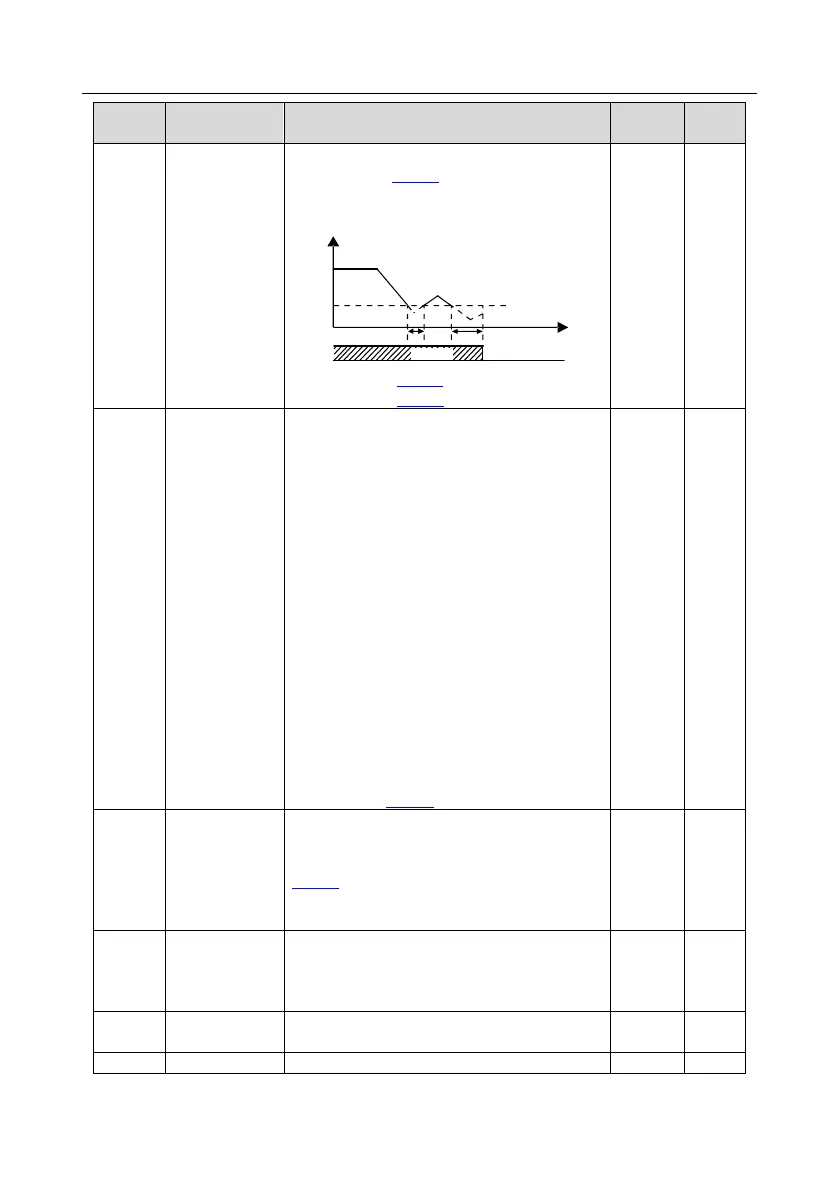

P09.12
Feedback offline
detection time
offline detection value, and the duration exceeds
the value set in P09.12, the VFD will report "PID
feedback offline fault", and keypad displays
PIDE.
T
Output frequency
t1 t2
P09.11
t1＜T2, so the VFD
continues running
t2=P09.12
Running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0–100.0%
Setting range of P09.12: 0.0–3600.0s
1.0s
○
P09.13
PID control
selection
0x0000–0x1111
Ones:
0: Continue integral control after the frequency
reaches upper/lower limit
1: Stop integral control after the frequency
reaches upper/lower limit
Tens:
0: The same with the main reference direction
1: Contrary to the main reference direction
Hundreds:
0: Limit based on the max. frequency
1: Limit based on A frequency
Thousands:
0: A+B frequency, acceleration /deceleration of
main reference A frequency source buffering is
invalid
1: A+B frequency, acceleration/ deceleration of
main reference A frequency source buffering is
valid, acceleration and deceleration are
determined by P08.04 (Acceleration time 4).
0x0001
○
P09.14
Low-frequency
proportional gain
(Kp)
0.00–100.00
Low-frequency switching point: 5.00Hz,
high-frequency switching point: 10.00Hz
(P09.04 corresponds to high-frequency
parameter), and the middle is the linear
interpolation between these two points
1.00
○
P09.15
Acceleration/
deceleration
time of PID
command
0.0–1000.0s
0.0s
○
P09.16
Filter time of PID
output
0.000–10.000s
0.000s
○
P09.17
Reserved
-100.0–100.0%
0.0%
○
