IRMA MATRIX R2 CAN Installation manual
released
Rev. 1.6
2018-09

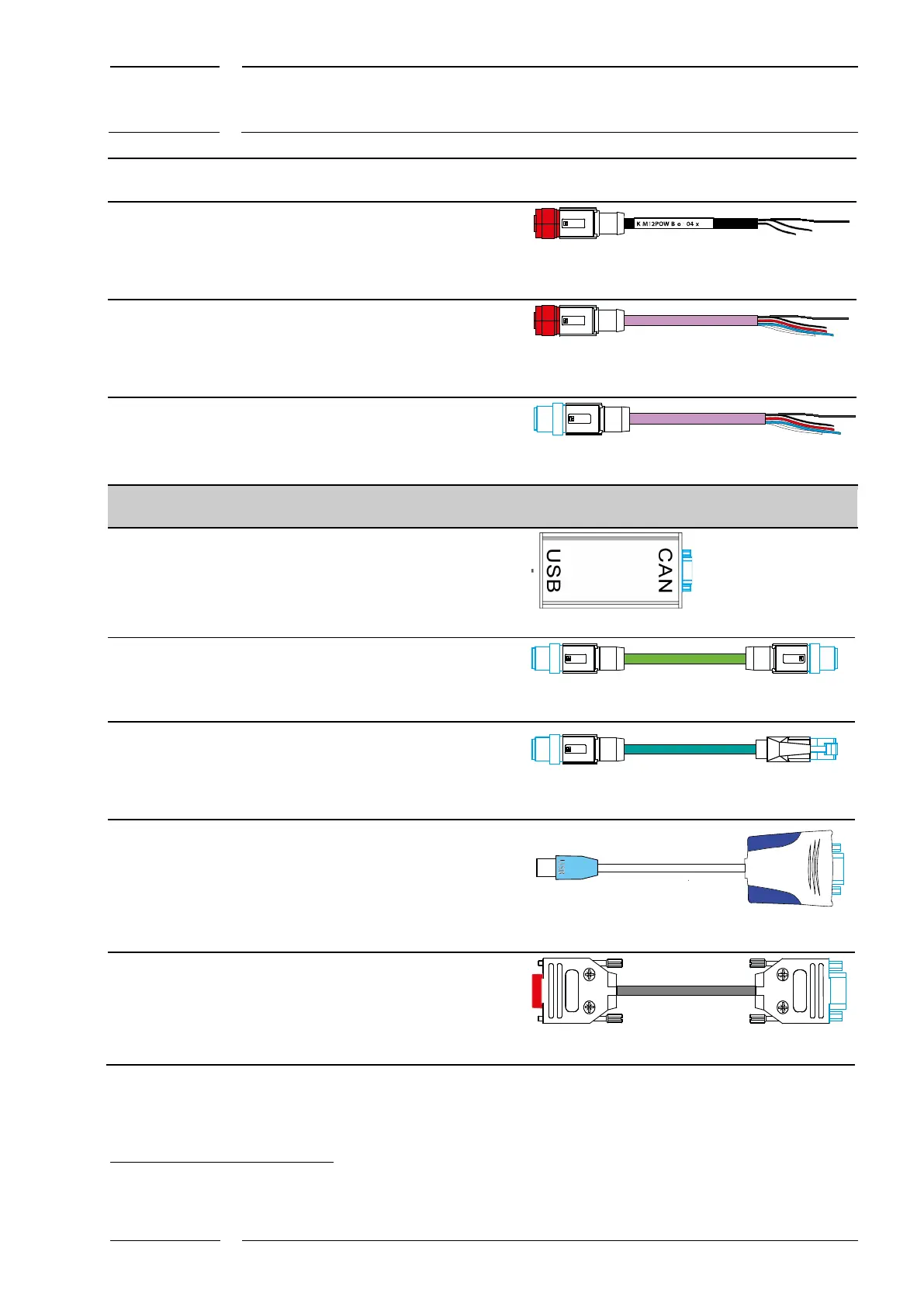

No. Designation Description Drawing/product designation
13
Power supply
cable
2 wires and shield for connection of
the power supply to the CAN BUS
M12 connector (f), CAN type/2 wires
and shield of opened cable end
K-M12POW-B-04-2m (=K3)
17
K-M12POW-B-oE-04-2m (=K3)
14
Connecting
cable, CAN type
4 wires and shield for connection of
the power supply and/or CAN signals
M12 connector (f), CAN type/4 wires
and shield of opened cable end
K-M12CAN-B-01-1m (=K2)
15
Connecting
cable, CAN type
4 wires and shield for connection of
the power supply and/or CAN signals
M12 connector (m), CAN type/4 wires
and shield of opened cable end
K-M12CAN-S-XX-1m (=K2/K3)
Components for service purposes
16
CAN-USB
converter
The CAN-USB converter allows the
connection of a PC for servicing.
SUB-D9 connector/USB connector (m)
CAN-USB converter
17
M12 system
cable, ETH type
Ethernet cable for service purposes;
for connection to switch
2 x M12 connector (m), ETH type
K-M12CAT5-XX-xm (=K2/K3)
18
M12-RJ45
adapter cable,
ETH type
For connection between switch and
PC for servicing
M12 connector (m), ETH type/
RJ45 connector (m)
KQ-M12CAT5-RJ45-01-xm
19
Converter USB
to RS232
USB-RS232-Konverter-FTDI_US232R-
100
For the servicing connection on the
IRMA gateway
SUB-D9 connector (m)/USB connector
(m)
USB-RS232-Konverter-FTDI_US232R-100
20
Cable for PC
connection of
the IRMA
gateway
Connecting cable for configuration of
the IRMA gateway
SUB-D9 connector (m)/SUB-D9
connector (f)
K-A21-C-RS232-o1-xxxx
17
-K2-/-K3: for meaning see section 5.1, page 24.
