100
SERVICE MANUAL FOR SGR19 & SGR17
CHAPTER 9. ELECTRICAL ACCESSORIES

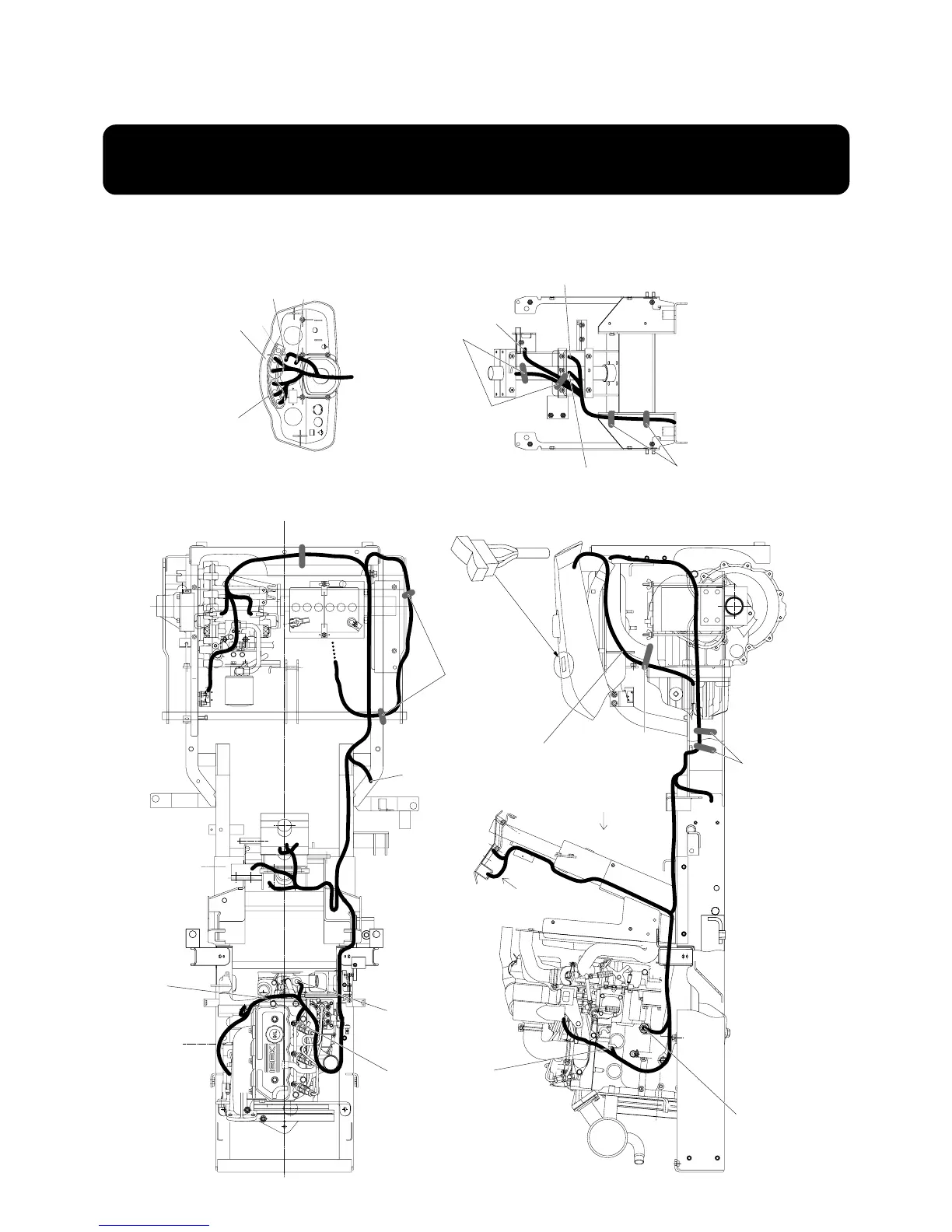

1. WIRE HARNESS LAYOUT
Fig. 9-1
A: Reverse of meter panel
B: Reverse of steering wheel post
B
A
to seat switch
Lift switch should
be installed so that
the lead runs outside
the left-hand fender.
Clamps
4-p blue
coupler:
Engine stop
Snap-in type
clamp
Thick brown wire:
Starter relay
(4-p)
Longer 4-p lead:
Buzzer relay (4-p)
Main wireharness should
be clamped.
Branched off
into two
Branched off
into three
Line running
outside panel
is longer
Empty
Upper:green
and white
Lower:black
Clamp
Earth
Retain slow-blow fuse with a clamp
to prevent it from hanging down.
Coolant temperature
sensor
Coolant temperature
sensor
Glow plug
Solenoid (pink/black), 2-p
Clamp
(square-tube)
Pump
Clamps (Inside)
???
