Iseki SGR19 User Manual

119
CHAPTER 10. MOWER DECK

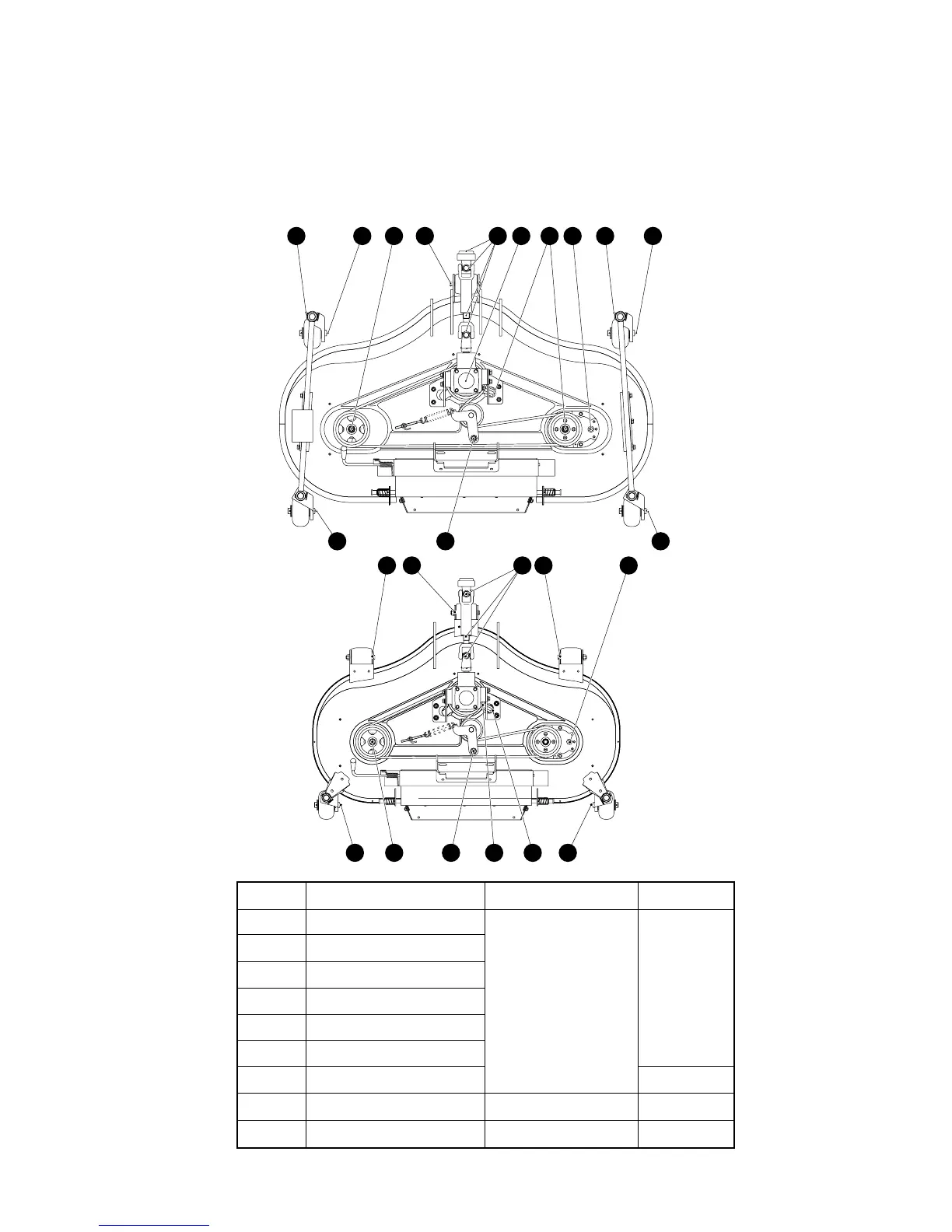

2. FILLING DIAGRAM
All the shafts mentioned below have a grease fitting on their end. Grease them periodically. The gear
case should also be serviced periodically for oil replenishment and replacement.
SCM54
SCM48
Fig. 10-1
2 2
3 34 45
67
8
9
11
2
2
33
44
5
67 8 9
Ref. No. Filling points Lubricants Quantity (cc)
1 Gauge wheel fork
2 Front gauge wheel
3 Rear gauge wheel Inject until
grease
4 Blade shaft Grease overflows
5 Tension arm
6 Drive shaft
7 Roller As required
8 Bevel gear case Gear oil SAE80 400
9 Counter gear case Gear oil SAE80 120
