103
CHAPTER 9. ELECTRICAL ACCESSORIES

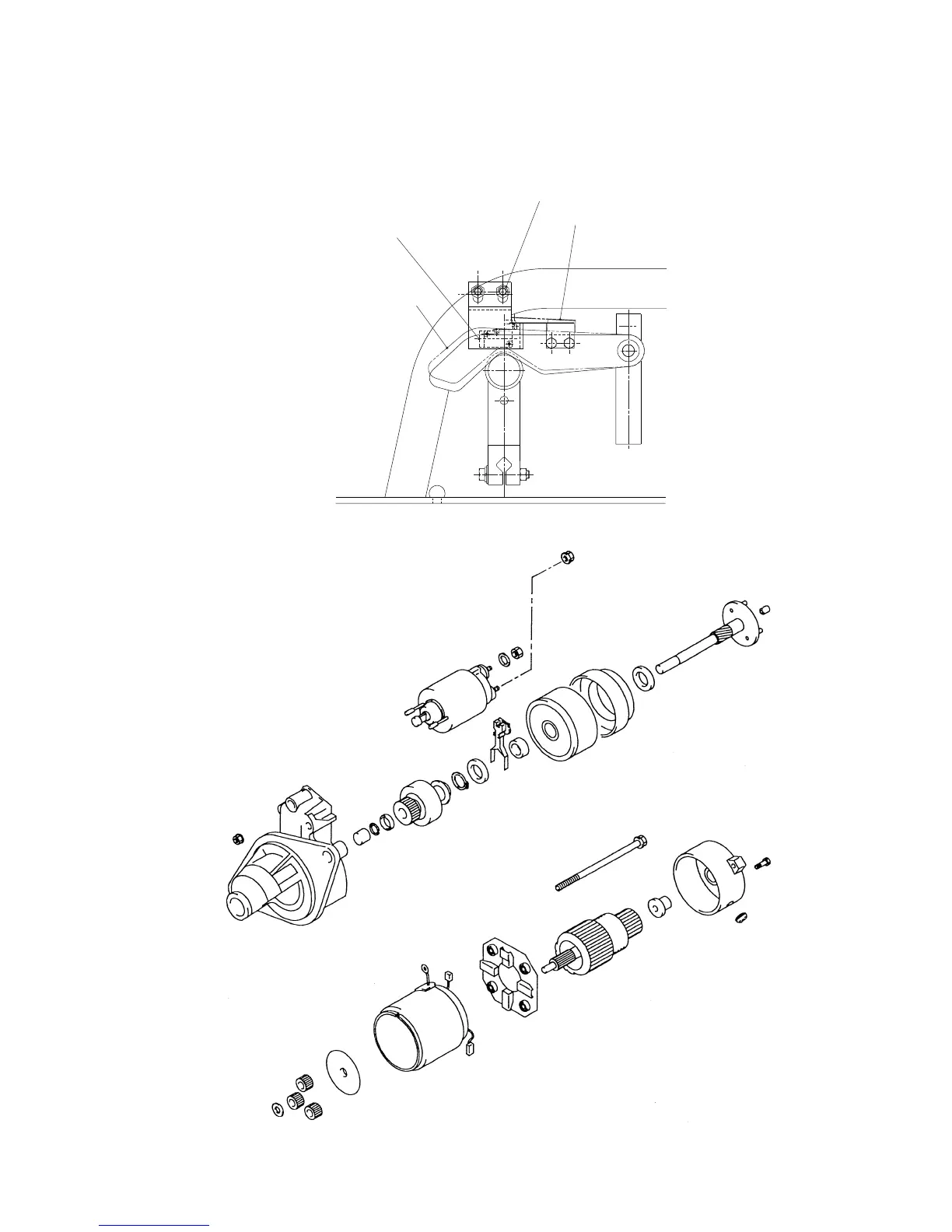

4. LIMITTER SWITCH FOR TRUNNION
ARM
5. STARTER
5.1. CONSTRUCTION
Fig. 9-5
Neutral plate
Neutral stay
Limitter switch
When pedal is depressed by 20 mm
Fig. 9-4
