SERVICE MANUAL FOR SGR19 & SGR17
(7) Installation of the injection pipes
• Install injection pipes for respective cylinders
and tighten them securely.
(8) Install water by-pass hose.
(9) Adjustment of the valve clearances
When the cylinder head has been removed, be
sure to adjust the valve clearances.
(10) Installation of the head cover.
Note:
The head cover seal and gasket are made of rub-
ber, so take care not to tighten the head cover
excessively.
III.2. GEAR CASE

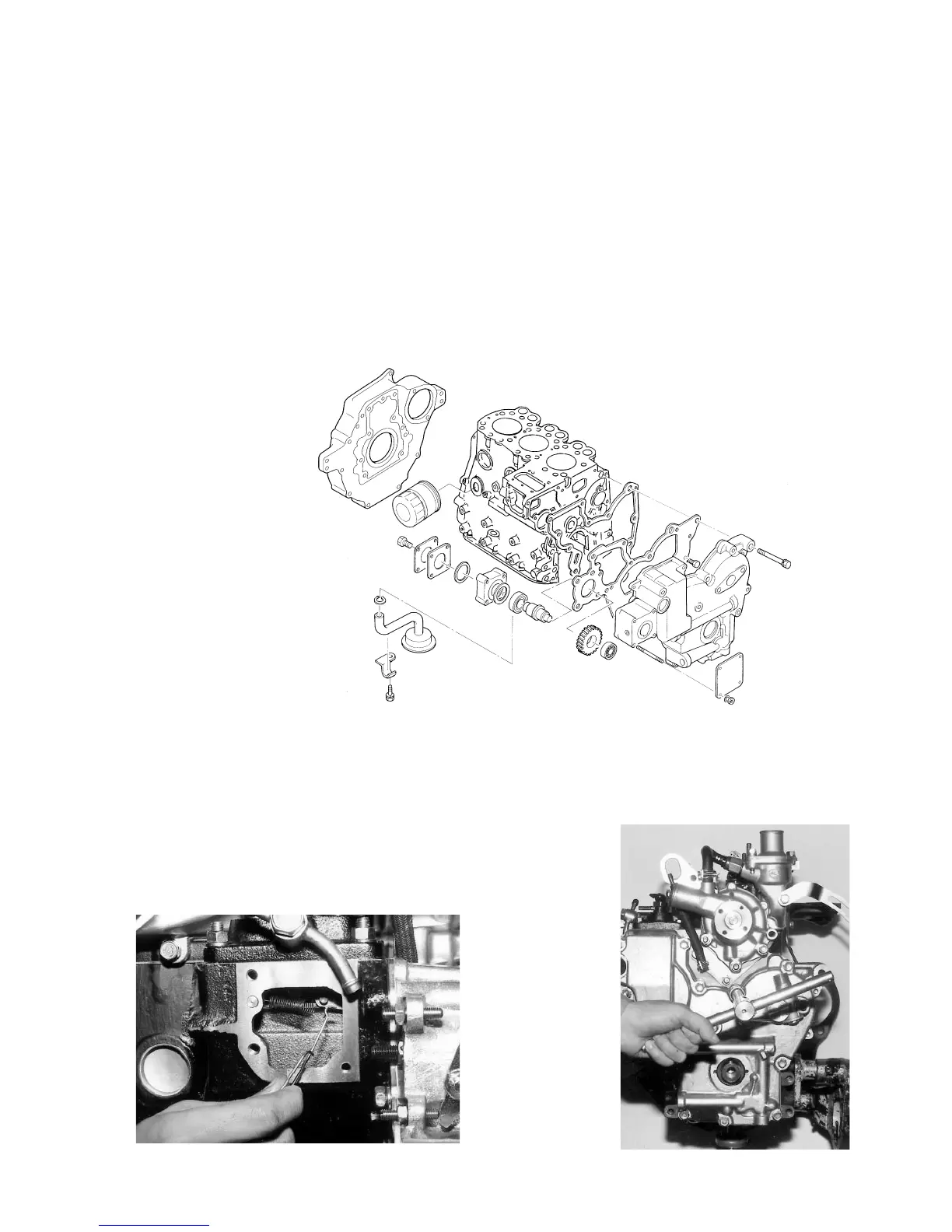

1. EXPLODED VIEW
Fig. 3-48
2. REMOVAL OF THE GEAR CASE
• Remove the cooling fan.
• Remove the fan belt.
• Remove the crankshaft pulley.
• Remove the alternator.
• Remove the injection pump cover and then re-
move the starting spring, setting spring, and con-
trol link from the rack.
Fig. 3-49
• Remove the return spring from the control le-
ver.
• Remove the hydraulic pump if installed.
• Remove the hydraulic pump drive gear.
• Remove the gear case
Fig. 3-50
