Iseki SGR19 - Installation of Rear Oil Seal; Installation of Strainer and Oil Pan

48
SERVICE MANUAL FOR SGR19 & SGR17

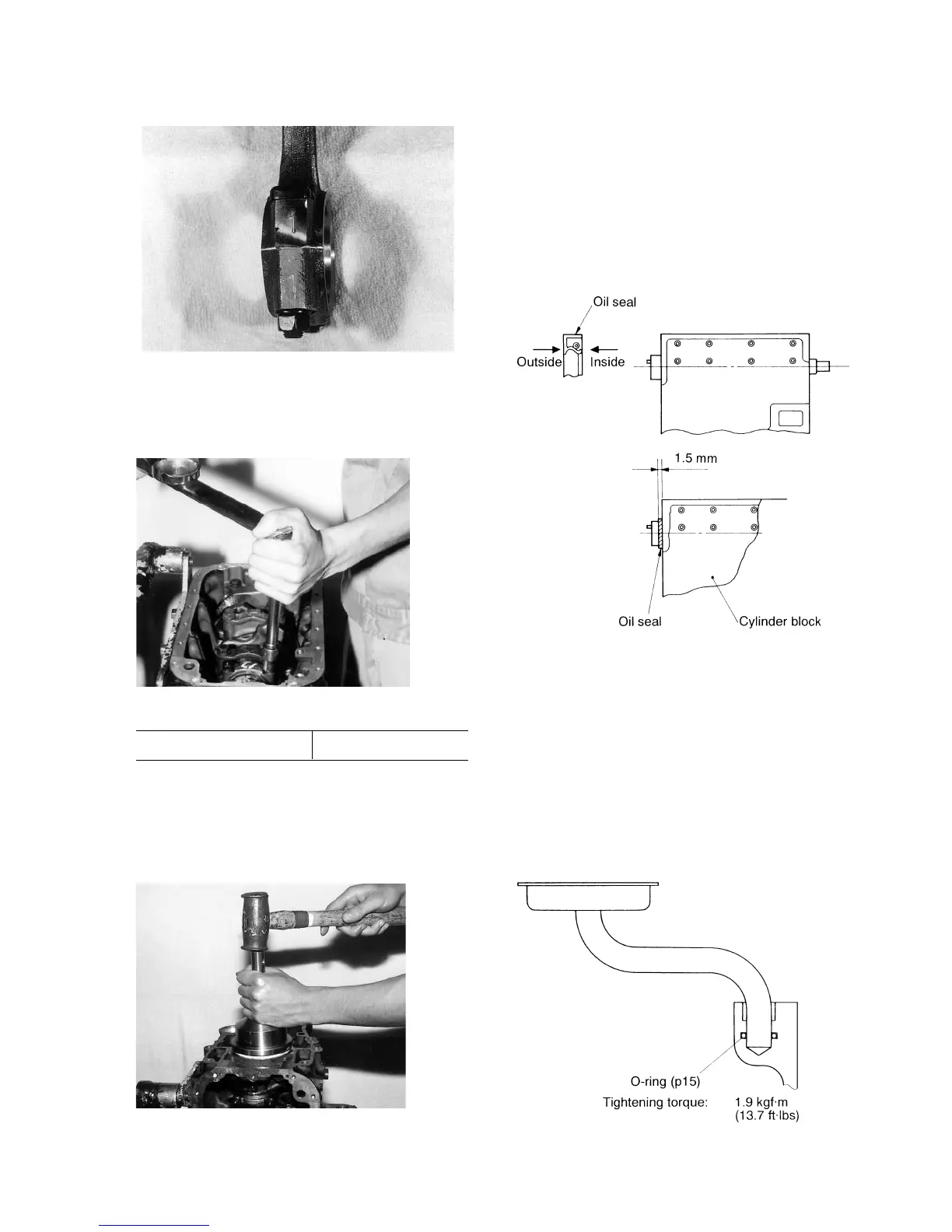

Fig. 3-97
• Tighten the connecting rod bearing cap to the
specified torque.
Fig. 3-98
Specified torque 2.7 – 3.3 kgf·m
The crankshaft should turn smoothly.
8. INSTALLATION OF REAR OIL SEAL
• Apply silicone compound to the outer circum-
ference of the rear oil seal and drive it in evenly
to avoid slanted installation.
• Make sure that the crankshaft turns smoothly.
• The projection of the rear oil seal after installa-
tion should be 1.5 mm.
Fig. 3-99
Fig. 3-100
9. INSTALLATION OF STRAINER AND
OIL PAN
• Install the O-ring in the groove in the hole for
oil strainer installation.
• Apply engine oil to the outer surface of the
strainer pipe and install it by turning to avoid
dislocation of the O-ring.
Fig. 3-101
