Iseki SGR19 - Precautions for Reassembly

74
SERVICE MANUAL FOR SGR19 & SGR17
4.7. PRECAUTIONS FOR REASSEMBLY

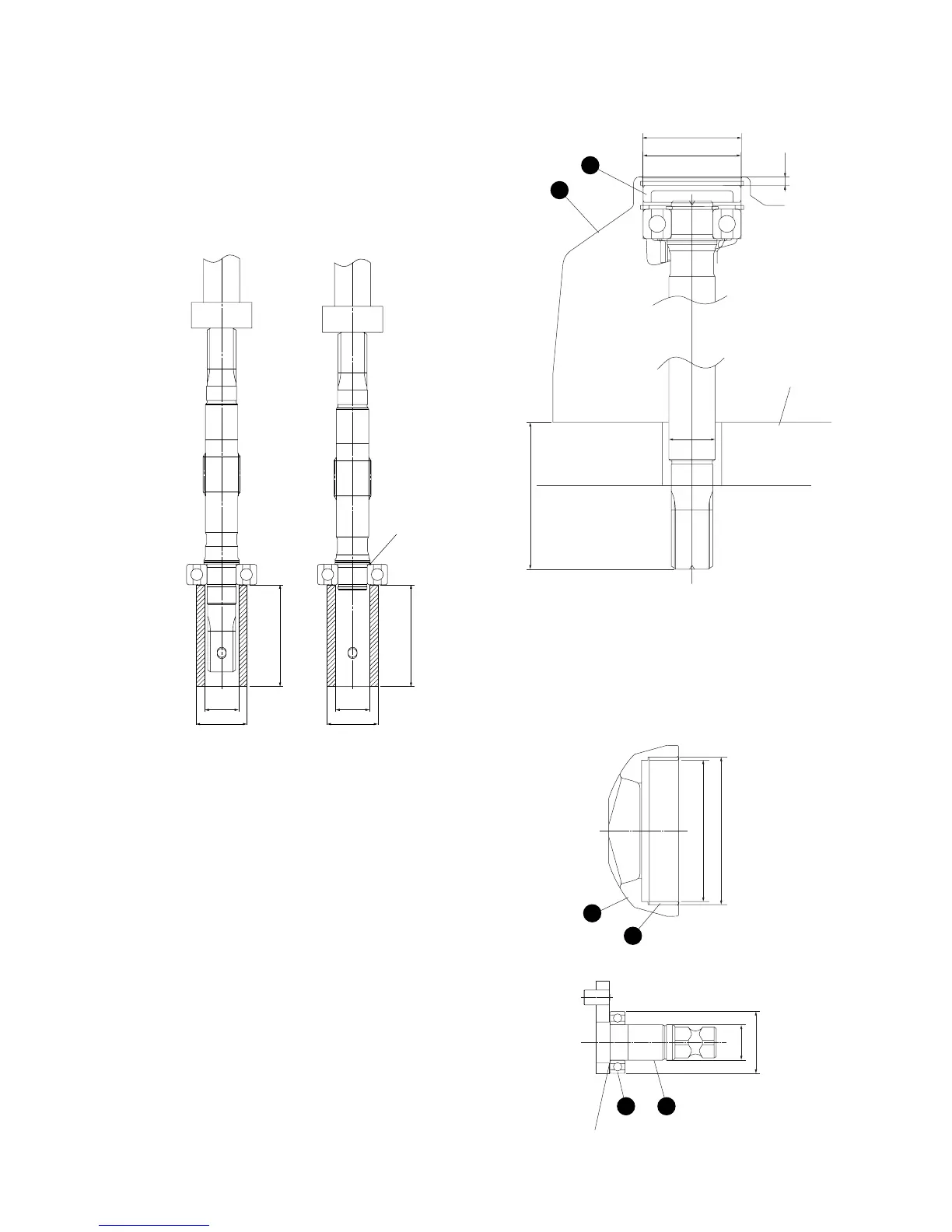

a. Installation of shaft bearings
Press in the bearings using the jigs mentioned in
the drawing below.
Fig. 5-39
c. Swash plate (slant board) assembly
• Press the bush (17) into the slant board so that
the bush end becomes flush with the surface of
the swash plate.
Install bearing
until it comes
into contact
with shaft.
70 70
ø24
ø35 Unit: mm
ø24
ø35
Fig. 5-38
b. Bore plug installation
Note:
• Press in the bore plug (11) until its top sinks to
4.2 mm deep from the case surface.
• Prepare pressing-in jigs in accordance with the
dimensions mentioned on the drawing.
ø47
ø47.5
4.2
70.5
1
11
Bench
(Unit: mm)
ø71 ø68
(Unit:mm)
4
17
Fig. 5-40
d. Trunnion shaft assembly
1065
Press in bearing until it comes into
contact with step.
ø17 ø30
(Unit: mm)
Fig. 5-41
