CHAPTER 2. DISASSEMBLY OF MAJOR COMPONENTS
(4) Remove the fixed bolt and the stopper brackets.

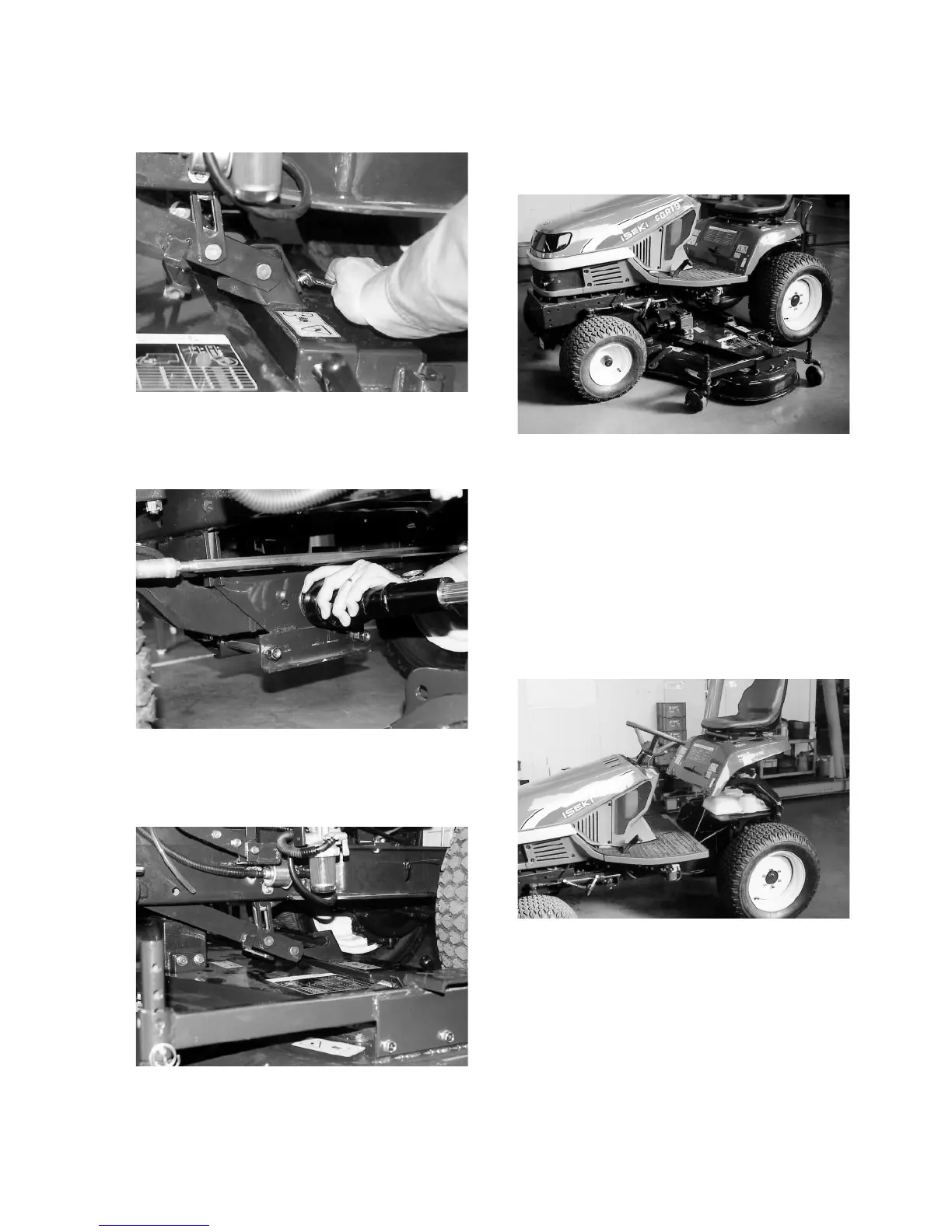

Fig. 2-7
(5) Disconnect the universal joint of the drive shaft
from the front mower.
Fig. 2-8
(6) Move the mower deck rearward to detach it from
the linkage.
Fig. 2-9
(7) Start the engine and lift up the linkage. Then
remove the mower deck sideways from the
mower engine.
Fig. 2-10
2. REMOVAL AND REINSTALLATION OF
MAJOR FUNCTIONAL COMPONENTS
2.1. REMOVAL AND REINSTALLATION OF
ENGINE
REMOVAL
(1) Open the rear fender.
Fig. 2-11
(2) Disconnect the negative (-) post of the battery.
(3) Drain engine coolant through the drain plug.
