14
SERVICE MANUAL FOR SGR19 & SGR17

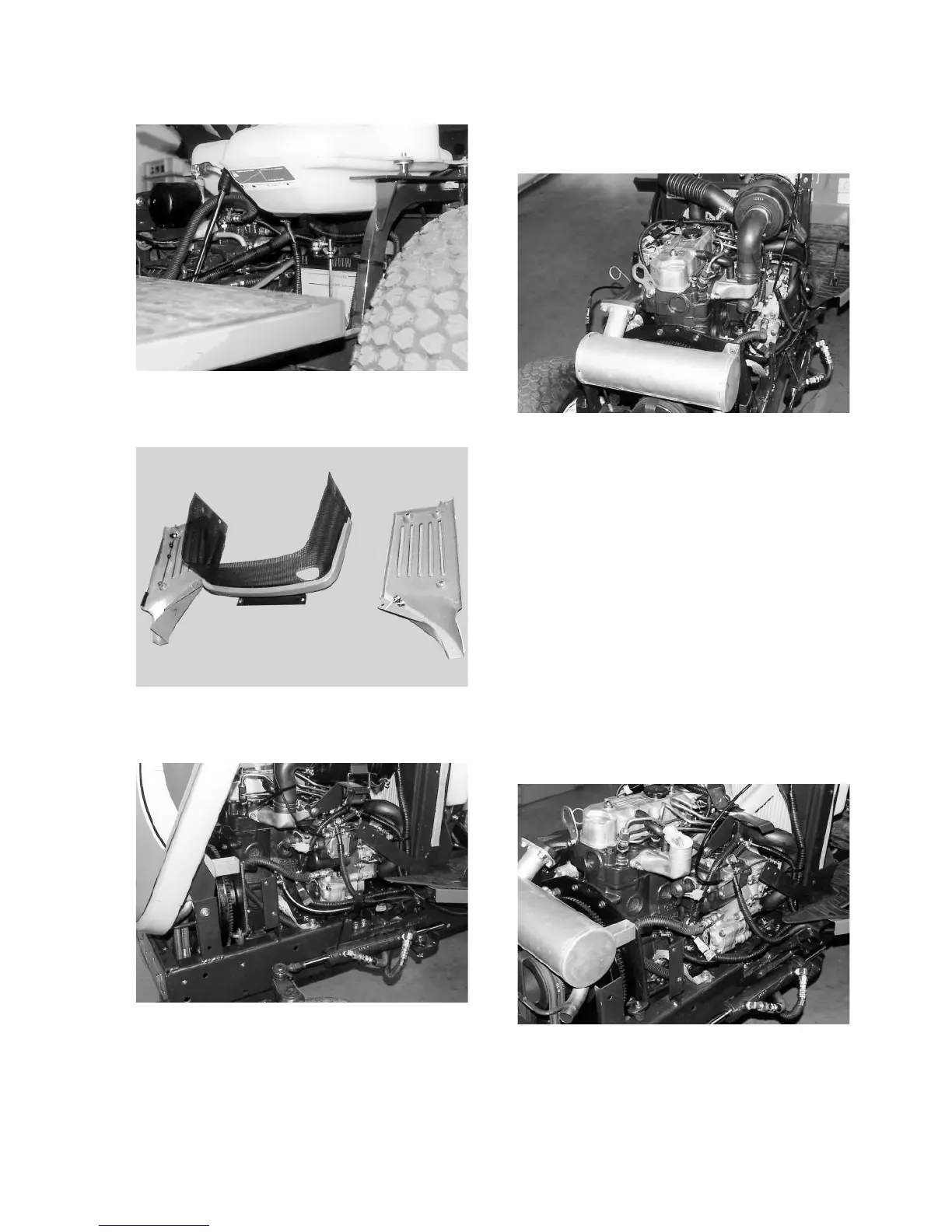

Fig. 2-12
(4) Remove both the front side covers (RH and LH).
Fig. 2-13
(5) Remove the engine hood assembly.
Fig. 2-14
(6) Loosen the lock-nut for the inner wire of the
throttle wire and draw out the inner wire.
(7) Loosen the lock-nut for the throttle wire sheath
and then remove the sheath.
(8) Remove the air-intake pipe by loosening the air-
cleaner side and engine side clamps.
Fig. 2-15
(9) Remove the upper and lower hoses which con-
nect the radiator and engine.
– Remove the drain hose from the cylinder
block.
(10) Disconnect the wire harness from the engine by
removing bolts and nuts which holds it.
- Glow plug terminals
- Thermometer
- Oil pressure switch
- Starter
- Alternator
- Fuel cut-off
Fig. 2-16
To Next Page
